• Model NO.：FD30
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：4380kg
• Engine：Isuzu,Yanmar
• Wheel Base：1700mm
• Color：Decided by Buyer
• Certificate：EPA ISO Ce
• Turning Radius(Outside)：2445mm
• Operator Type ：Driver,Seat
• Rated Power：34.3kw,2500rpm
• Fuel Tank：70L
• Transport Package：Container
• Specification：2730mm*1225mm*2115mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer   LTMGModel Power shift T/M                      FD30TManual shift T/M                      FD30CLoad capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backwarddeg6/12Overall length(without fork)                   mm2705Total width  mm1225Mast height (fork lowering)                  mm2075Overall height fork raised                    With backrest  mm4250Height to head guard                           mm2140Turning radius(outside)                            mm2445Front face of fork to front axle                 mm480Min. right angle stacking aisle               without load length&clearance mm2925Speed Max Travelling full/no load km/h18/19.5Lifting full/no load mm/s450/500Lowering full/no load  mm/s450/450Max.drawbar pull                                   Power shift T/M full/no load    kg1500/1000Manual shift T/M full/no load       kg1550/1000Gradeability at 1.6km/hPower shift T/M full/no load                    %18/20Manual shift T/M full/no load           %18/20Truck weight kg4380Weight  distribution                             Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheel base  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast) mm120Framemm135Brake Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backwardPower shift T/M              Manual shift T/M              1-1 power shift T/M
2-2 manual shift T/M
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

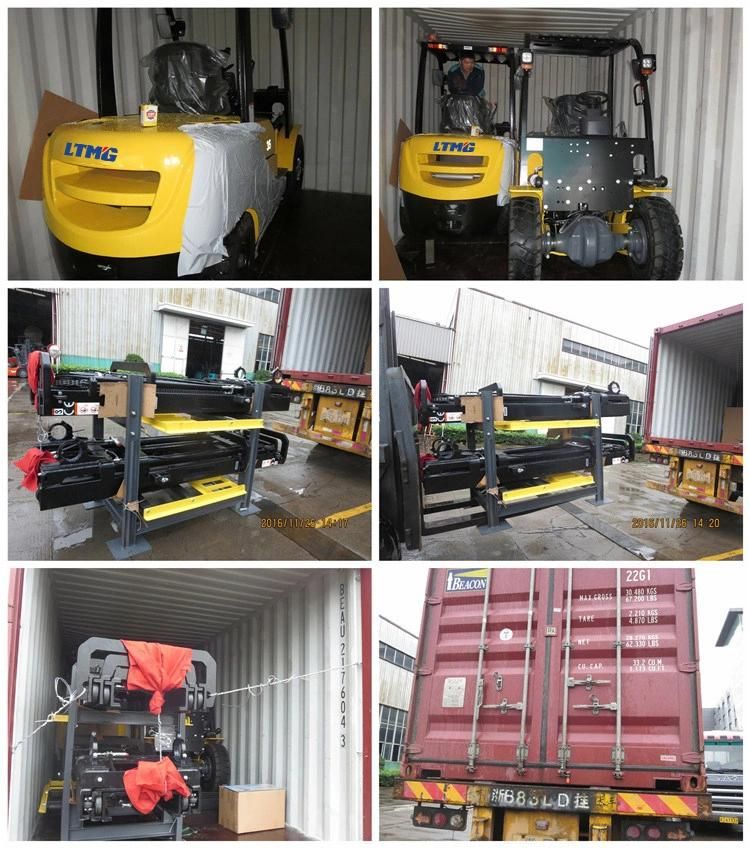

Packing & Shipping

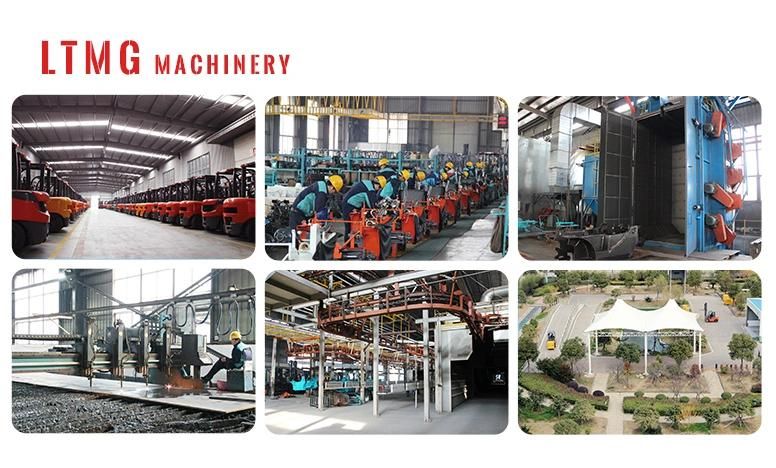

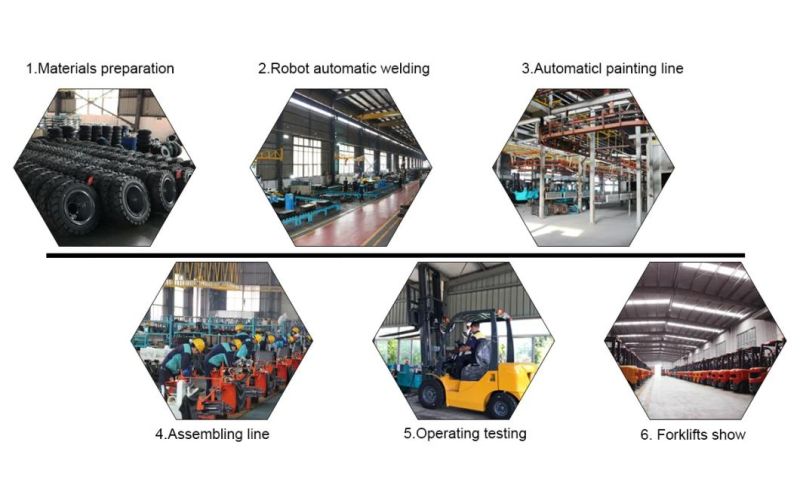

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)



Customer visit





After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
