• Model NO.：FB25
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Weight：3820kg
• Wheelbase：1400mm
• Fork Size：1070mm*122mm*40mm
• Overall Length(Without Fork)：2285mm
• Color：Customized
• Max.Lifting Height：3000mm
• Product Name：Small Battery Operated Forklift Electric Forklift
• Load Distance：445mm
• Height to Head Guard：2145mm

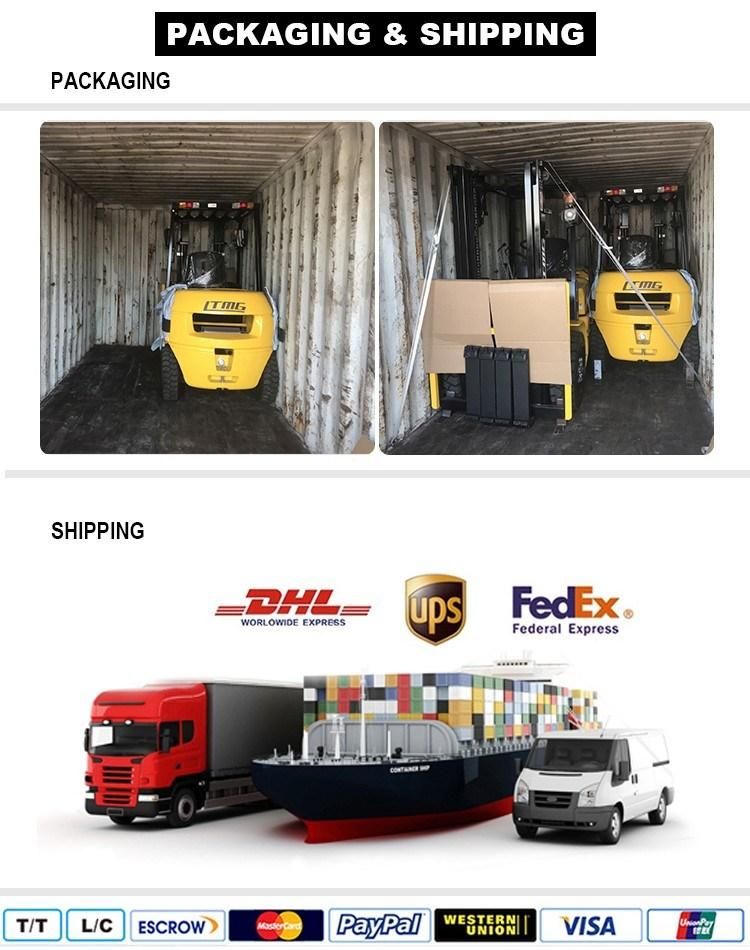

• Transport Package：Fixed in Container, Nude Packing
• Specification：2285mm*1150mm*2145mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer  LTMGModel     FB25Load capacity  kg2500Load center  mm500Power unit   BatteryOperator type  Driver/seat    Tire type    PneumaticWheel(x=driving)Front/rear 2X/2Max. lifting height  mm3000Free lift mm160Fork size L*W*Tmm1070*122*40Tilt range Mast forward/backward deg6/12Overall length(without fork)  mm2285Total width       mm1150Mast height (fork lowering)    mm1995Overall height fork raised With backrest   mm4030Height to head guard mm2145Turning radius(outside) mm2000Load distance mm445Min. right angle stacking aislenot add load length&clearancemm2445SpeedMax Travellingfull loadkm/h13.5Max Travellingno loadkm/h14.5Lifting full load mm/s240Lifting no load  mm/s450Gradeabilityfull load   %12.5Truck weight(with standard battery) kg3820Weight  distributionFull load front/rear kg5425/895No load front/rear kg1425/2395Tires Numberfront/rear   2/2Model front axle  21*8-9-16PRrear axle    18*7-8-14PRWheelbase  mm1400Tread  Front/rearmm955/950Ground clearance At lowest point(mast)mm110Frame mm115Brake  Servicebrake  Hydraulic-foot pedalParking brake Mechanical-hand leverBattery                                                                                  Voltage/capacity    V/AH/5hr48V-450Weight with box (standard)kg 825Electric motor  AC Driving motor  kw11DC Hydraulic driving motor  kw8.6 AC Hydraulic driving motor (as option)   kw13Control type  Driving AC  , lifting DC
Driving AC  , lifting AC(as option ) Operating pressure kg/cm²175

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
