• Model NO.：FD100
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*175mm*75mm
• Weight：12450kg
• Engine：Isuzu,Mitsubishi
• Wheelbase：2800mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：112kw,2000rpm
• Brand：Ltmg
• Truck Weight：12450kg
• Transport Package：Container
• Specification：4255mm*2245mm*2850mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：500sets,Month

Manufacturer  LTMGModel Power shift T/MFD100Load capacity kg10000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm205Fork sizeL*W*Tmm1220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4255Total width mm2245Mast height (fork lowering) mm2850Overall height fork raisedWith backrestmm4430Height to head guard mm2560Turning radius(outside) mm3900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5850/3200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Truck weight kg12450Weight  distributionFull load front/rearkg20160/2290No load front/rearkg5480/6970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2800TreadFront/rearmm1600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M
Product Features


1.Equipped with powerful and reliable original imported Isuzu  with excellent environmental performance.

2.Ergonomic adjustable seat:designed according to the ergonomic principles, make the operation much comfortable and
also relieves the fatigue caused by long continuous operation.

3.Bigger and non-slip step make operating convenient and safe.

4.The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.

5.Install heavy-duty driving axle to ensure safety work at bad working conditions.

6.The full free 3-stage mast adopt German import channel With advanced welding technology , Increase the stability of
ascension,durability and the width of front mast view,  reduce the height of the instrument stand, expand the visibility of
pallet fork tip and goods.

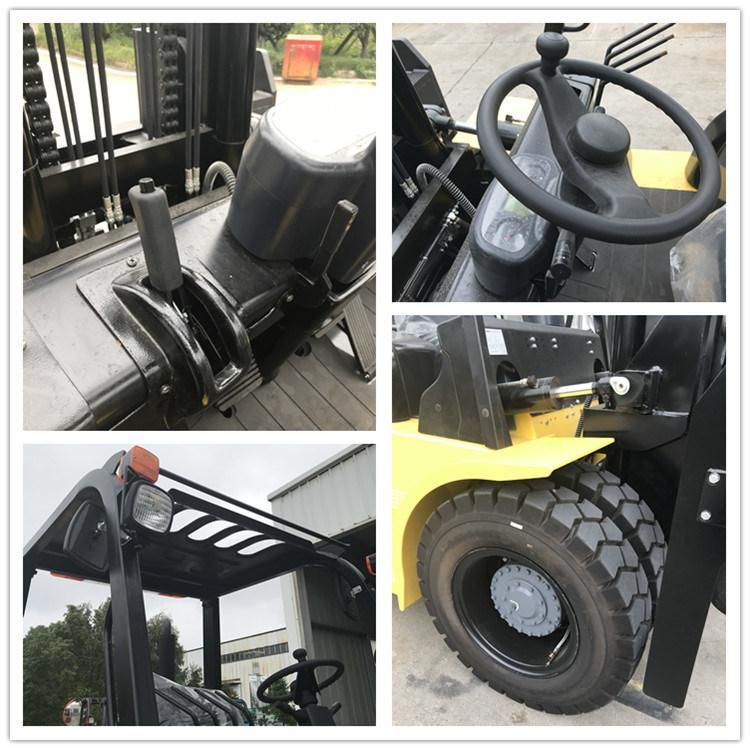

Details

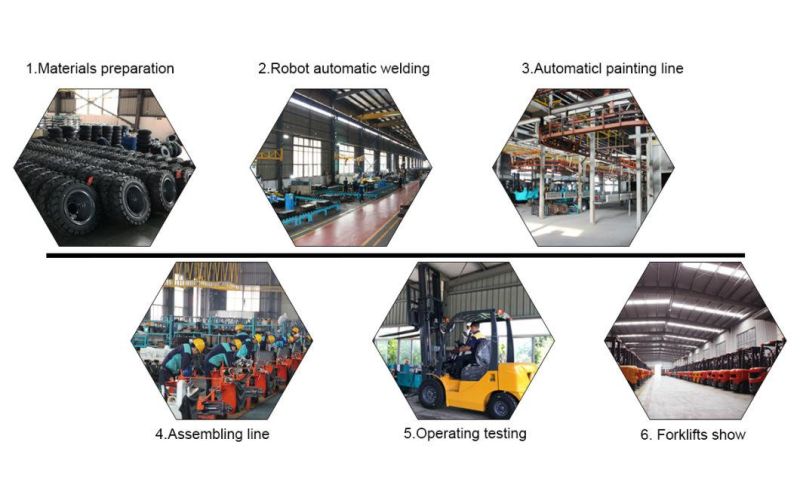

Production Process

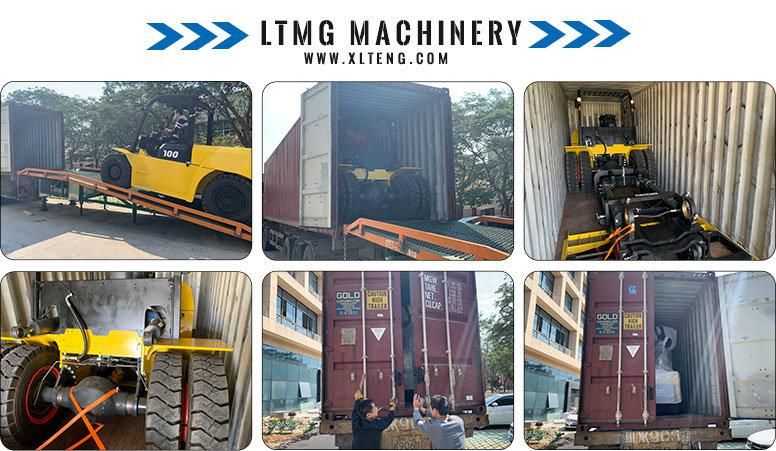

Shipping&Packaging


Certificates & Factory Show




Customer Show



After sales Service

Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year
or 2000 working hours (which occurs first) period quality warranty.

If the machine have any problem within the warranty time, but not caused by man-made, we will send you
spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.




FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
