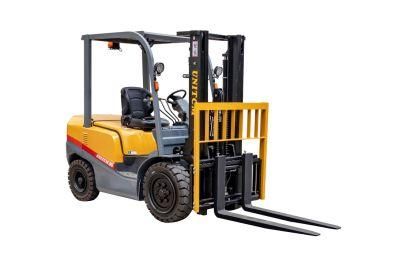

Hifoune Mini 2000kg LPG/Gas/Gasoline/Electric/Diesel Forklift Trucks
Xiamen Hifoune Technology Co., Ltd.- Warranty：One Year or 2000hours
- Cab Location：Adjustable
- Type：Gasoline&LPG Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Gasoline&LPG
Base Info
- Model NO.：FG20T
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Engine：Xinchai,Isuzu,Mitsubish
- Weight：3310kg
- Rated Capacity：2000kg
- Fork Size：1220X122X40mm
- Transmission Box Type：Automatic Transmission
- Tire Type：Pneumatic Tire
- Transmission：Hydraulic
- Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
- Mast：Duplex Mast (Triplex Mast Optional)
- Color：Customized
- Certification：CE,ISO
- Transport Package：Container
- Specification：2605x1150x2090mm(LXWXH)
- Trademark：Hifoune
- Origin：Cn
- HS Code：8427109000
- Production Capacity：4500sets,Year
Description

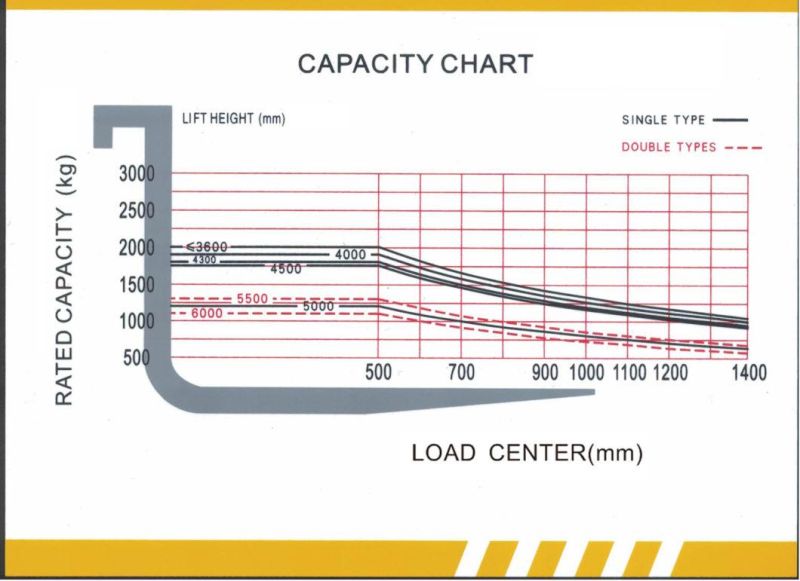

ModelUNIT FG20T Specifications Power Unit gasoline Operator Type Driver/seat Transmission Box Type Electronic hydraulic transmisson Rated Capacity kg 2000 Load Center mm 500 Max. Lifting Height mm 3000 Tyre Type Pneumatic Tyre Tyre Number(Front/Rear) 2/2 Tyre Size (Front/Rear) 7.00-12-12PR/6.0-9-10PR Performance Lifting Speed (Loaded/Unloaded) mm/s 500/550 Lowering Speed (Loaded/Unloaded) mm/s 480/450 Travelling Speed (Loaded/Unloaded) km/h 17/19 Max. Gradeability (Loaded) % 21 Max. Drawbar Pull (Loaded) n 18 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 150 Turning Radius mm 2170 Dimensions Overall length (without fork) mm 2605 Overall Width mm 1150 Overhead Guard Height mm 2090 Fork Size (LxWxT) mm 1220×122×40 Mast Height (Fork lowered) mm 2090 Battery(Voltage/Capacity) V/Ah 12/90 Truck Weight kg 3310 Fuel tank capacity L 70 Engine Brand NISSAN Model K21 Rated Power kw/rpm 31.2/2250 Rated torque n-m/rpm 143.7/1600 Number of cylinder 4 Displacement 2.06
Shipping & Packing
About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
