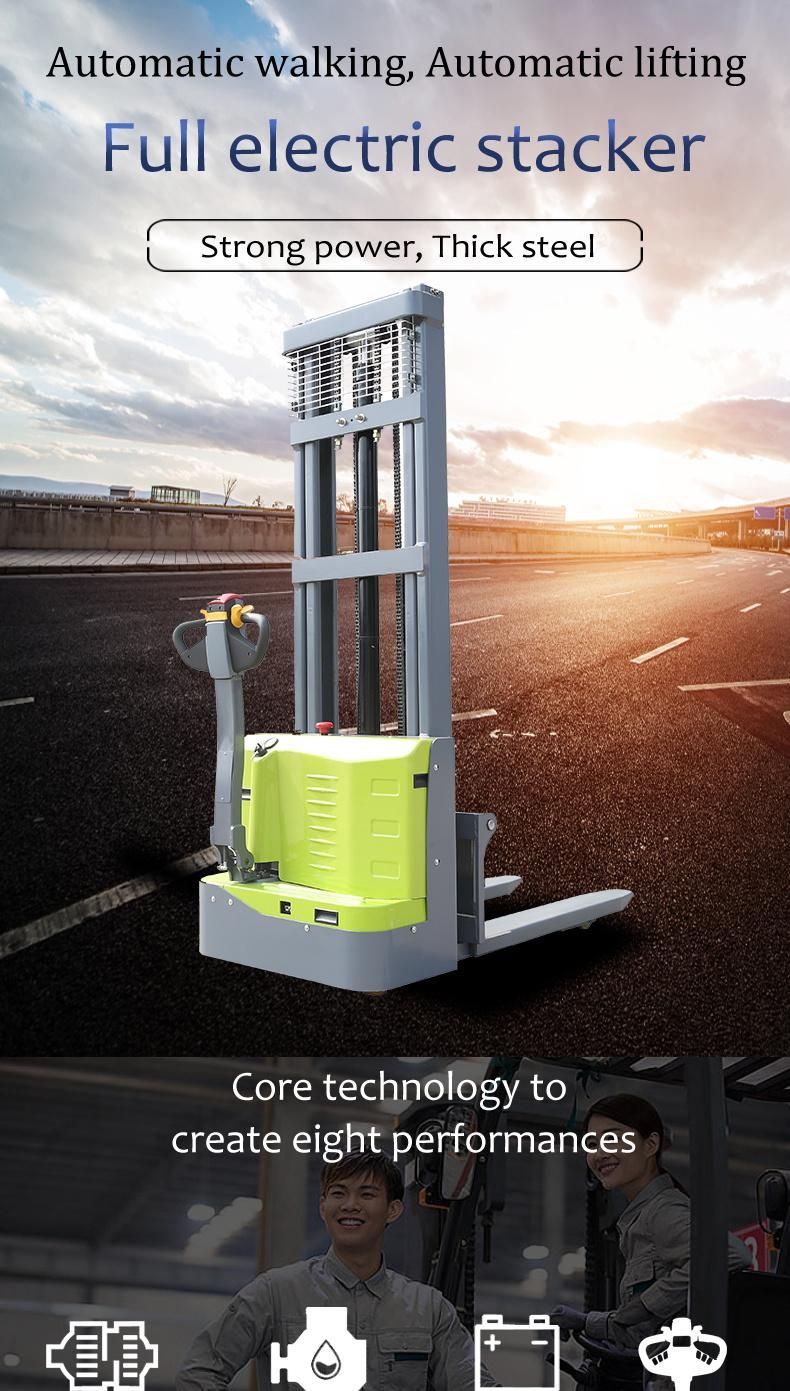

Three Stage Stacker Electric Pallet Stacker Dgxz10 3.6m
Henan Ideal Machinery Equipment Co., Ltd.- After-sales Service：Online Support,Free Accessories
- Warranty：1 Year
- Cab Location：Not Adjustable
- Type：Stacker
- Power：DC Motor
- Load Capacity：1T - 5T
Base Info
- Model NO.：DGXZ15-36(SMJ)
- Fuel：Electric
- Load center：500mm
- Lift height：2000-3600mm
- Condition：New
- Product Name：Stacker Container
- Fork Size：1150*140*60mm
- Fork Spacing Min/Max：550,685mm
- Min. Ground Clearance：90mm
- Min. Turning Radius：1810mm
- Weight(Including Battery)：1100kg
- Driving Motor：1.5kw
- Drive Tyre Size：252*88mm
- Load-Bearing Tyre Size：80*70mm
- Transport Package：Carton
- Specification：2080*850mm
- Trademark：IDEAL
- Origin：Henan
- HS Code：8479109000
- Production Capacity：300set,Month
Description
Overview
Model DGXZ15-36(SMJ) DGXZ15-40(SMJ) DGXZ15-45(SMJ) Power Type Battery Battery Battery Operation Type Standing
Driving Standing
Driving Standing
Driving Load Capacity kg 1500 1500 1500 Load Center mm 500 500 500 Lift Height mm 3600 4000 4500 Wheelbase mm 1370 1370 1370 Overall Dimension(L×W) mm 1750×800 1790×800 1830×800 Mast raise/unraise Height mm 1780/2750 1980/3450 2080×3950 Fork Dimension mm 1150×140×60 1150×140×60 1150×140×60 Fork Width Min./Max. mm 550/685 550/685 550/685 Min. Ground Clearance mm 90 90 90 Turning Radius mm 1810 1810 1810 Min.Right Angle Channel Width mm 1000 1000 1000 Self Wight(with battery) kg 1100 1100 1100 Battery Weight kg 52 52 52 Wheel Type
(driving/turning) Solid PU Solid PU Solid PU Driving Wheel Sizes mm 252×88 252×88 252×88 Auxiliary wheel Sizes mm 115×55 115×55 115×55 Loading Wheel Sizes mm 80×70 80×70 80×70 Tread,Front mm 420 420 420 Driving Motor kw(60min) 1.5 1.5 1.5 Lifting Motor kw(60min) 2.2 2.2 2.2 Battery Dimension mm 271×174×213 271×174×213 271×174×213 Battery Voltage/Capacity V/ah 24/240 24/240 24/240 Controller Curtis Curtis Curtis Working Pressure mpa 12 12 12 Driving Speed km/h 4/4.5 4/4.5 4/4.5 Lifting Speed mm/s 45/55 45/55 45/55 Lowering Speed mm/s 40/55 40/55 40/55 Traction kN 1.1 1.1 1.1 Max. Traction kN 1.1 1.1 1.1 Max Climbing Ability % 3 3 3 Service Braking electromagnetic induction electromagnetic induction electromagnetic induction Parking Braking electromagnetic induction electromagnetic induction electromagnetic induction Driving Type Electric Electric Electric Steering Type Electric Electric Electric Noise Level 68 68 68 Waterproof Grade IP54 IP54 IP54
