• Model NO.：OPS15
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Name：High Level Order Picker Truck
• Center Distance：600 mm
• Load Distance,Centre of Drive Axle to Fo：206 mm
• Tyre Size ,Front：Dia 310X125 mm
• Tyre Size ,Rear：Dia 128X73 mm
• Aditional Wheel：Dia 150X47 mm
• Wheels,Number Front Rear：1X2,4
• Height,Mast Lowered：2410,3080,3750 mm
• Max.Lift Height：5000,7000,9000 mm
• Height,Mast Extended：7230,9230,11230 mm
• Height of Platform：230 mm
• Turning Radius：1800 mm
• Lifting Speed,Laden/Unladen：0-0.15,0-0.28 M,S
• Battery Voltage/Rated Capacity：24,770(1100)
• Service Weight(with Battery)：3870 Kg
• Transport Package：One Set Pack in One Pallet
• Specification：3200 mm*1100 mm*2410 mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：1000 Sets,Month

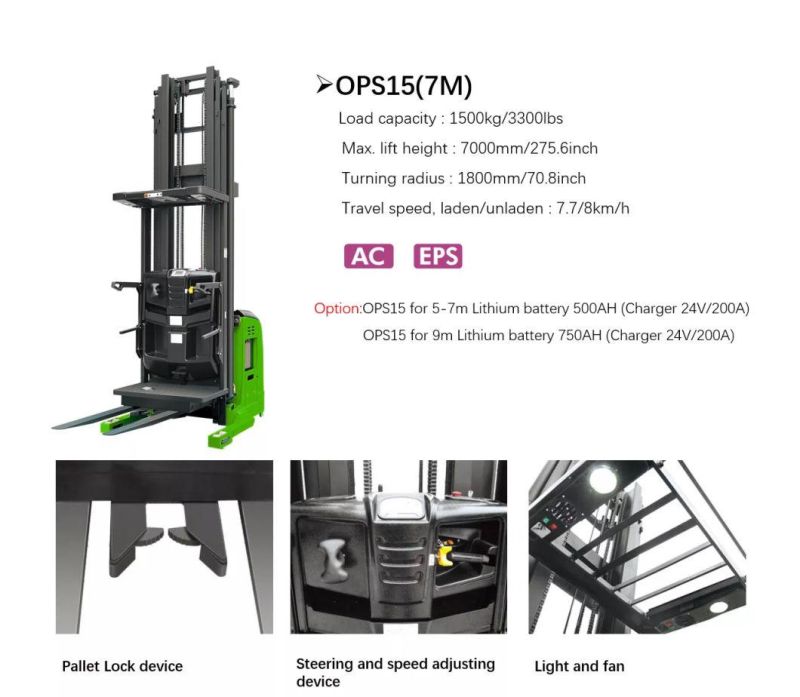

Main Configuration1) Capacity: 1500KG2) Height: 5000/7000/9000MM3) Triplex mast, FFL4) 24V AC power with CURTIS controller5) Fork: 45/100/1220MM6) 24V/770Ah lead-acid battery, 24V90A charger (5000/7000MM)7) 24V/1100Ah lead-acid battery, 24V150A charger (9000MM)8) Finger tip control via joystick9) Electric power steering (EPS)10) With safety belt, reversing buzzer, LED working light, beacon flash light, fan, polyurethane wheel

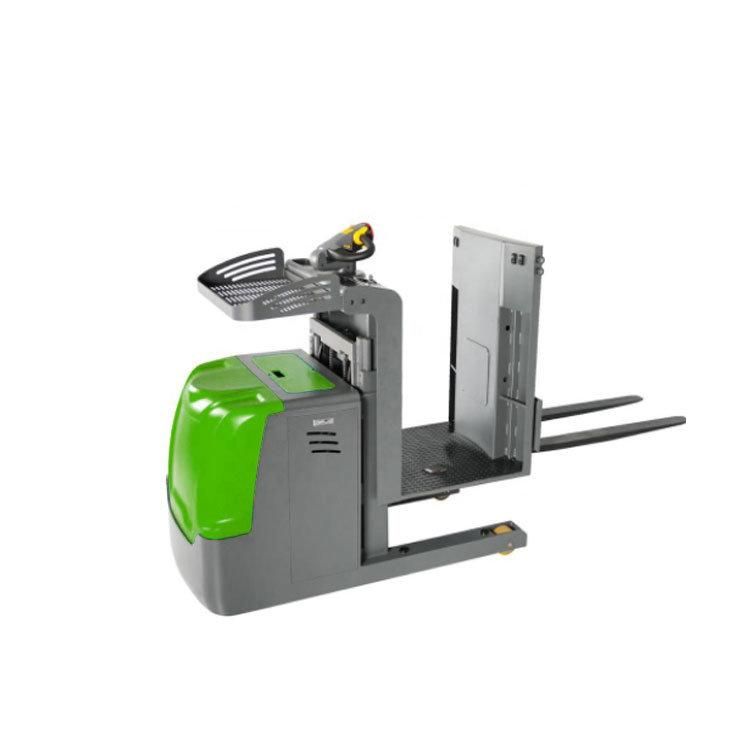

ParameterOPSM mini order picker
Load capacity of loading tray 90kg
Load capacity of loading dock 90kg
Max .lift height,platform 3000mm
Max reachable height :5000mm
 OPL10S
Load capacity :1000kg
Height,platform:1200mm
Max ,lifting height :800mm


Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

High praise from customers
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

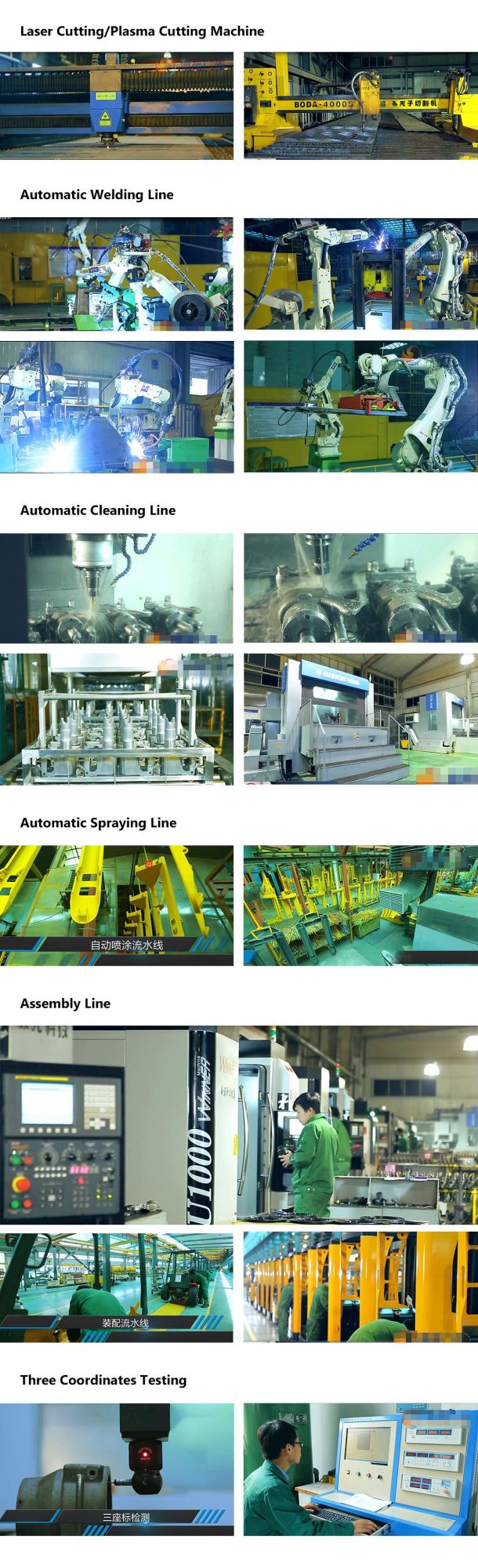

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CDDR15-III?

A2: Our chargers 24V200Ah Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
