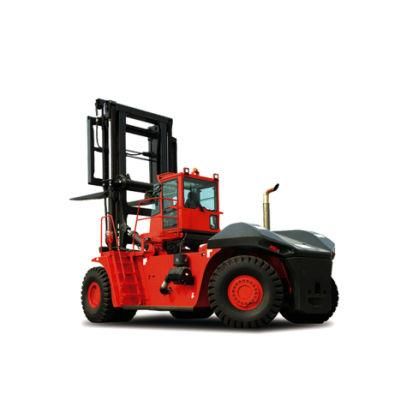

• Model NO.：FD300
• Lift height：3000~5000mm
• Condition：New
• Engine：Weichai
• Rated Power：175kw,2200rpm
• Tire：14.00-24,28pr
• Weight：39500kg
• Wheel Base：4800mm
• Wheel(F/R)：4,2
• Overall Length：9640mm
• Fork Size：2440mm*320mm*110mm
• Min. Turning Radius：6800mm
• Min. Ground Clearance：350mm
• Transport Package：by Bulk
• Specification：9640mm*3200mm*4000mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

ModelUnitFD300Rated load 30000Load center 1250Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm9640Widthmm3200Heightmm4000Mast lifting heightmm3500Fork size (L*W*H)mm2440X320X110Min. turning radiusmm6800Max. travel speed (with load)Km/h28Lifting speed (with load)mm/s260Gradeability (with load)%20WeightKg39500Front 4X14.00-24/28PRRear 2X14.00-24/28PRWheel treadFrontmm2490Rearmm2450Wheelbasemm4800Min. ground clearancemm350Model WD10G240E21Rated power/rotate speedKW/r.pm175/2200Max. torque/rotate speedN.m/r.pm1000N·m /1600 rpm
Product Features

Engine: Adopt energy-saving and environmental protection Weichai WD10G240E21 Diesel Engine, low rotating speed, big torque, low oil consumption, high stability etc. Meanwhile, equipped with water tanks with enlarged radiator, the diesel engine system has better thermal balance so that it can conduct continuous operations in the harsh work conditions.
Transmission & torque convert & driven axle: planetary torque converter and transmission R & D by ourselves, high strength heavy loading planetary hub reduction drive axle, 30 years technology, excellent stability and reliability
Explosion proof safety valve for pipeline:avoid the pipeline bursting suddenly,ensure system working safety and reliability.
Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity.
Cooling system:adopt independent transmission oil and hydraulic oil cooling,increasing system stability
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Tyre: use well-known brands, plus level, special tires, security performance, wear-resistant and durable.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers' labor intensity.
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
Other parts: with pilot system, standardized, can easy purchased or replaced with Chinese famous parts
Optional Parts:
Engine: Dongfeng Cummins Engine, Styer engine and Yuchai Engine
Transmission: Chinese ZF transmission
Drive: Four-wheel drive
Mast: Heighten mast, side-shifter
Attachments: Special quarry fork, special container fork, roll prong, embrace clip etc.
Others: Visible reverse display,Central Lubricating system

Packing and Shipping




Our Factory




Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

After sales service


LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
