• Model NO.：FDS100
• Lift height：3600mm
• Condition：New
• Wheelbase：3700mm
• Min. Turning Radius (mm)：5800
• Wheel Track (mm)：200,2110
• Tyre：Double Rear Tyres
• Rk Length (mm)：1650mm
• Max. Lifting Capacity/Load Center (Kg/mm：10000,600
• Platform Height (mm)：1340mm
• Platform Width (mm)：1760mm
• Max. Fork Spacing (mm)：1310mm
• Tire：Pneumatic( Solid Is Optional)
• Transport Package：Container
• Specification：6200mm*2600mm*3450mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：100sets,Year

TransmissionHydraulicalMax. lifting capacity/Load center (kg/mm)10000/600Max. lifting height (laded) (mm)3600Fork free lift (mm)400Max. lifting speed (laded) (m/s)≥0.25Traveling speed (km/h)Forward I8.3Forward II31.8Reverse11.25Fork tilt anger (front/rear)5/3Min. turning radius (mm)5800Gradeability (laded) (%)20Mini. ground clearance (laded) (mm)220Dimension (mm)Length6200Width (without rearview)2600HeightFork lowered3450Fork rised5230Wheel base (mm)3700Wheel track (mm)2200/2110Platform height (mm)1340Platform width (mm)1760Fork length (mm)1650Max. fork spacing (mm)1310Tire model (front/rear) 2/412.00-20-18PRWeight unladed (kg)15000Engine ModelLR6105G6XRated power (Kw/rpm)77.2/2200Max. torque/speed (N.m/rpm)372/1400
Product Features
1.In the warehousing process, when the body go into the channel, the fork can face the shelf or goods. In the loading and unloading operations, the forklift can do not turn in the first time,And then work. this characteristic makes side forklift truck is suitable for narrow channel operations
2.Side forklift is advantageous to the long goods, because long goods is parallel with the body,and this forklift can be not limited by the channel width. The side forklift to faster handling long goods

After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

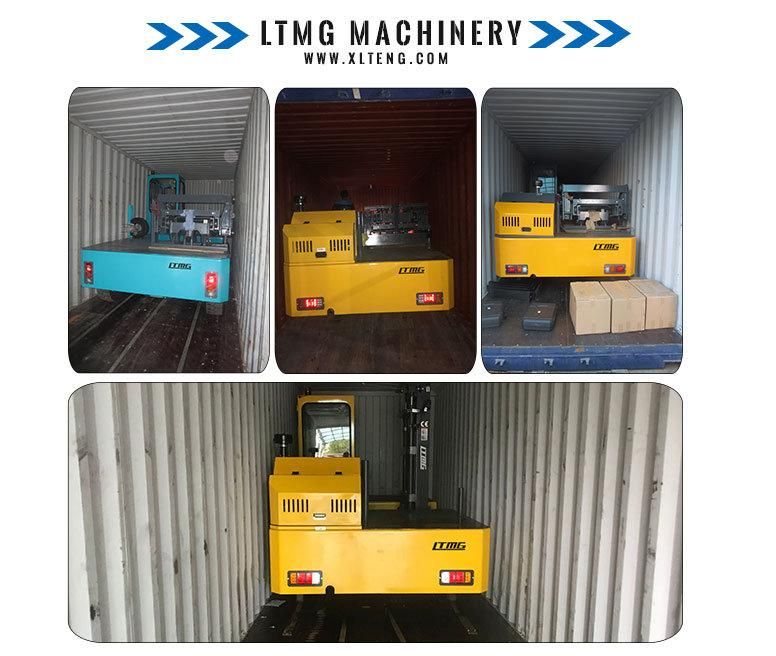

Shipment

Factory Overview

Our Customers

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
