• Model NO.：CRS450
• Lift height：15900mm
• Condition：New
• Product Type：Container Reach Stacker
• Wheelbase：6400mm
• Turning Radius：8605mm
• Transmission Type：Auto-Shift , Interlock
• Engine：Cummins,Volvo
• Tyres：Pneumatic
• Hydraulic Oil Tank：800 Liter
• Fuel Tank：500 Liter
• Steering：Double Action Cylinder
• Lifting Height：15.9m
• Transport Package：Nude
• Specification：8410*4180*3900mm
• Trademark：LTMG
• Origin：Xiamen
• HS Code：8427209000
• Production Capacity：300,Year

The specification of LTMG 45000kg container handlerCHARACHTERISTICSManufacturer LTMGModel designation CRS450/5Power unit: battery, diesel, LP gas, mains power DieselOperation: manual, pedestrian, stand-on, seated, order picker Rider seatedLoad capacity(L1, L2, L3)Q (kg)45000 / 31000 / 16000Load centre, First row(L1)c (mm)1800Load centre, Second row(L2)c (mm)3860Load centre, Third row(L3)c (mm)6400Axle centre to spreader center(L1-1/2 high)x (mm)2800 / 2600Wheelbasey (mm)6400DIMENSIONSBoom lift angle, raised/loweredα/β( / °)61/ 0Height boom loweredh1 (mm)4945Lift height(L1, L2, L3)h3 (mm)15900 / 14100 /11350Height, boom extendedh4 (mm)19000Height of cabinh6 (mm)3900Height, operators seath7 (mm)2840Towing coupling heighth10 (mm)600Twistlock height loweredh13 (mm)1495Overall length with spreaderl1 (mm)11618Overall lengthl2 (mm)8410Overall widthb1/b2 (mm)4180 / 3400Width of soreader 20'/40'b3 (mm)6050 /12150Ground clearance minimumm1 (mm)345Ground clearance, centre of wheelbasem2 (mm)300Stacking aisle 20' containerAst (mm)10225Stacking aisle 40' containerAst (mm)13050Turning radiusWa (mm)8605Minimum pivoting point distanceb13 (mm)3400Wheelspan, Front wheelsb10 (mm)3030Wheelspan, Rear wheelsb11 (mm)2786WEIGHTS UnLadenLadenWeight kg71400116400Load on drive axle kg36400101900Load on steering axle kg3500014500PERFORMANCES UnLadenLadenTravelling speed km/h2521Climbing ability %3028.8Tractive force kN325--Lifting speed m/s0.390.28Lowering speed m/s0.390.39CABINMovable closed cabin  Equiped with Air-conditioner, cooling/heating function  Noise level at driver's ear dBA74ENGINEBrandCum&minsTypeQSM 11Cylinder number/ Displacement6 / 10820 cm3Rated power @ rated speed250Kw @ 2100 rpmMaximum torque1674NM @ 1500 rpmRated current of alternator150 ABattery24 V (2 x 12 /150)


Product Advantage

Reliable structure system: Designed with 3D modeling, use simulation software to finite element analysis, the stacker passed high-intensitive fatigue and vibration test to ensure the reliability of whole structure.Famous world brand: Cum&mins engine or Volvo engine, DANA transmission, KESSLER Drive and Steering Axle.
Independent brake cooling system: Drive axle brake use a separate cooling system from truck oil cooling system to ensure safety and extend drive axle service life.Dynamic Anti-Rollover Protection Technology: Rear axle unlock system will be triggered once detect overload front. Use rear axle as extra weight to increase stability; And lower counter weight will move backwards to increase safety and avoid revolve.Vertical Lifting Technologies of Boom: The intelligent controller monitors the boom' s parameters at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader, which makes stacking safer and improves efficiency significantly.
Weighing and printing technology: Print out container quantity and weight anytime, improve work efficiency.

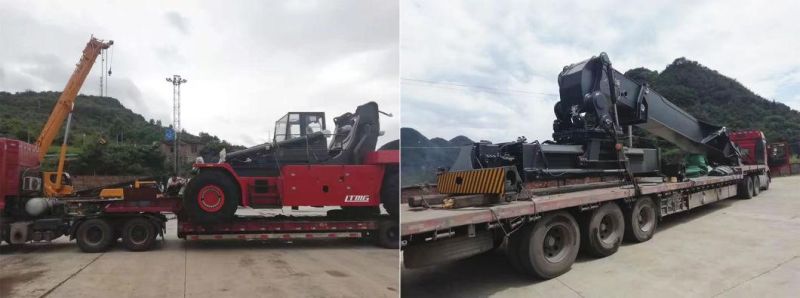

Delivery and Shipping




After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

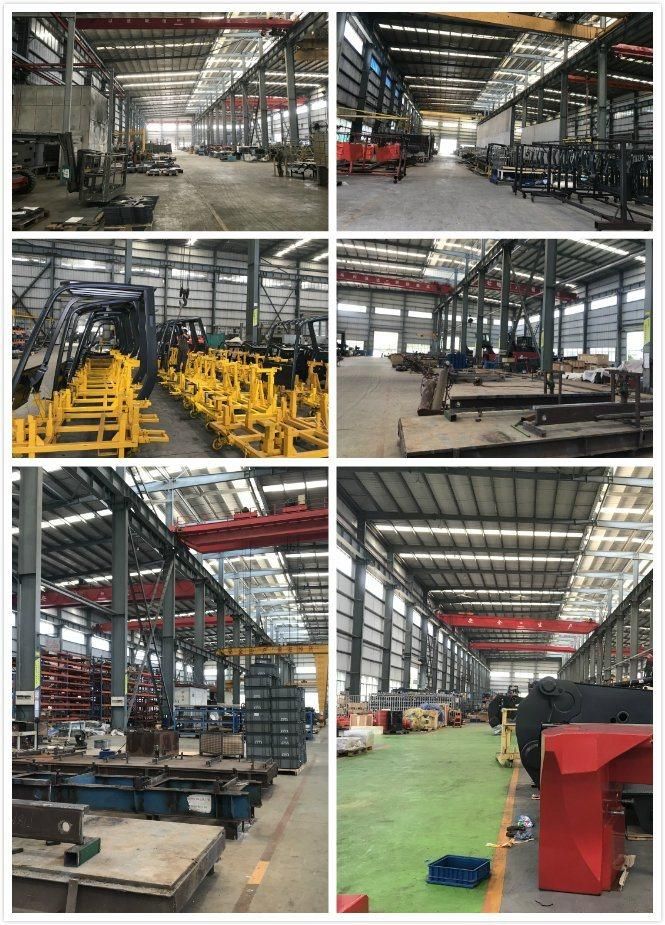

Our factory




Our customer
