• Model NO.：JK-3000
• Lift height：3000-6000mm
• Condition：New
• Fork Length：1220mm
• Rated Lifting Force：3000kg
• Turning Radius：3500mm
• Door Frame Width：0.7m
• Delivery Time：Wthin 7 Days
• Tire：Large 20.5 , 70-16 Tires
• Drive Mode：Four-Wheel Drive
• Engine Model：Huadong 4dby4
• Engine Power：40 Kw
• Max. Full Load Travelling Speed Km/H：56 Km,H
• Gearbox：265 Double High and Low Speed Large Pump Torque Co
• Fuel Tank Volume：50 L
• Power Battery Voltage：24 V
• Payment Iterm：T,T, LC, O,a, Dp
• Warranty Period：1 Year Free Warranty
• Transport Package：Container
• Specification：4200*1800*2700mm
• Trademark：SDJK
• Origin：Shandong
• HS Code：8427209000
• Production Capacity：50sets,Month

Basic Info.

Model NO. JK-3000 Lift height 3000-6000mm Condition New Fork Length 1220mm Rated Lifting Force 3000kg Turning Radius 3500mm Door Frame Width 0.7m Delivery Time Wthin 7 Days Tire Large 20.5 / 70-16 Tires Drive Mode Four-Wheel Drive Engine Model Huadong 4dby4 Engine Power 40 Kw Max. Full Load Travelling Speed Km/H 56 Km/H Gearbox 265 Double High and Low Speed Large Pump Torque Co Fuel Tank Volume 50 L Power Battery Voltage 24 V Payment Iterm T/T, LC, O/a, Dp Warranty Period 1 Year Free Warranty Transport Package Container Specification 4200*1800*2700mm Trademark SDJK Origin Shandong HS Code 8427209000 Production Capacity 50sets/Month

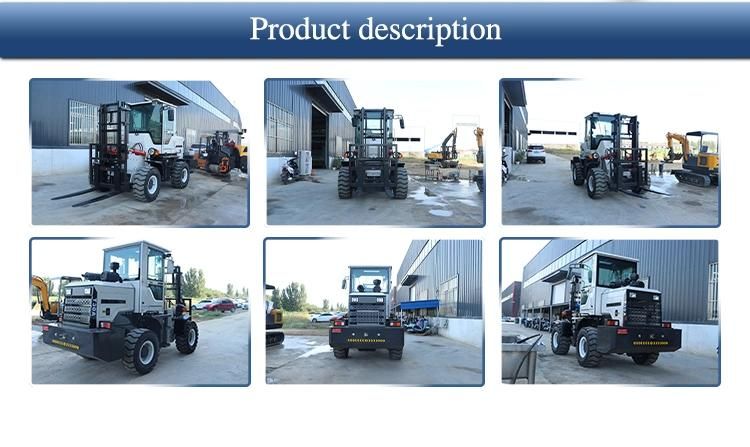

Product Description

China All Terrian Forklift/ Updated Small Diesel Off Road Forklift

JK3000 is a multi-functional forklift with optional engine that adapts to all terrains. With superior performance, high configuration, low fuel consumption, JK3000 can work with different terrain, such as construction site, dock yards, construction mines, muddy road, etc. 2020 mini all terrian forklift have low fuel consumption and high performance engine which makes the machine more efficient. Smaller turning radius is suitble for narrow space. The product can replace different optional accessories, such as cylinder holding clamp, bucket, side shifter, grample, etc. It can save human efforts as well as improve work efficiency.

1) Adapt to the All terrain
2) Multi-functional Forklift
3) One year warranty
4) Lifetime free technical support


Product Name	Off-Road Forklift
Model	JK-5.0T
Size	4200*1800*2700mm
Curb Weight	4000kg
Fork Length	1220mm
Climbing Angle	≤38°
Rated Lifting Force	3000kg
Lifting Height	3000-6000mm
Turning Radius	3500mm
door frame width	0.7m
Door frame front ground clearance	250-350mm
Wheelbase center ground clearance	300mm
Frame	Hinged thickness 3mm
Axle	Small wheel side  Small wheel side
Tire	Large 20.5 / 70-16 tires
Drive Mode	Four-wheel drive
Engine Model	HuaDong 4DBY4
Engine Power	40 KW
Max. Full Load Travelling Speed km/h	56 km/h
Gearbox	265 double high and low speed  Large pump torque converter Hydraulic torque converter
Fuel Tank Volume	50 L
Power Battery Voltage	24 V
Payment Iterm	T/T, LC, O/A, DP
warranty period	1 year free warranty
Delivery Time	Wthin 7 days
