• Model NO.：CQD15
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Name：Electric Stacker Reach Truck
• Center Distance：600 mm
• Wheel：PU
• Wheel Dimension,Front：Dia 310X125 mm
• Fork Wheels：Dia 285*110mm
• Height of Mast,Lowered：2086,2240,2740,3190,3390mm
• Max.Height of Mast,Extended：3000,5000,6200,7400,8000mm
• Free Lift：0,1700,2100,2500,2700mm
• Overall Length：2370mm
• Fork Dimension：35,100,1070 mm
• Overall Width of Fork：1200 mm
• Turning Radius：1780mm
• Lifting Speed,Laden/Unladen：0.45,0.36m,S
• Battery Voltage/Rated Capacity：48V400ah
• Service Weight(with Battery)：2900,3000,3100,3200,3300 Kg
• Transport Package：One Set Pack in One Pallet
• Specification：2370 mm*1200 mm*2086 mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

Main Configuration1.48V AC POWER2.CURTIS CONTROLLER3.4 LEVES HYDRAULIC CONTROL4.48V400AH LEAD-ACID BATTERY5.48V50A CHARGER6.SIDE SHIFT7.EPSCDDR15 Walkie electric stacker
1.5ton with 1600-3000mm lifting height,
DC motor ,CURTIS controllerCDDR15-III walkie electric stacker
1.5ton with 2500-5600mm lifting height ,
24V AC power,CURTIS controller,24V200Ah lead-acid battery CDDK15-III ,Rider electric stacker
1.5ton with 1600-5600mm lifting height.
24V AC power,CURTIS controller,24V200AH LEAD-ACID BATTERY .24V30A CHARGER

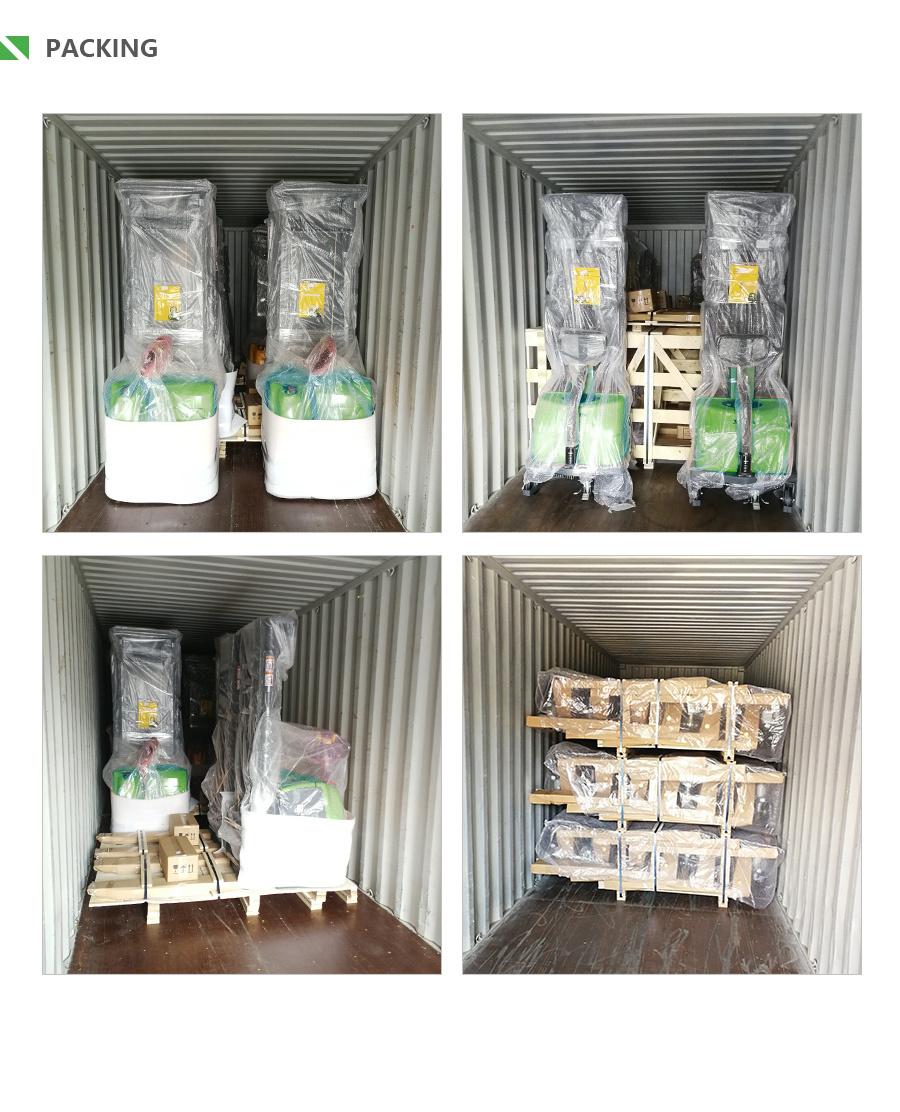

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

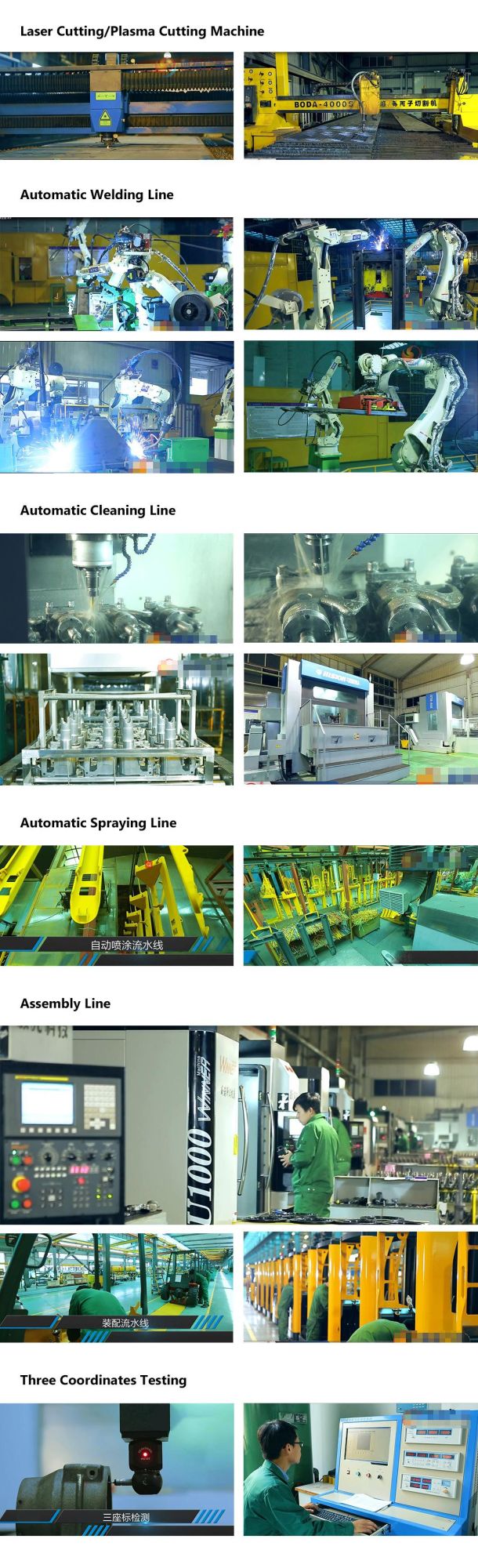

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CQD15?

A2: Our chargers 48V400Ah Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
