• Model NO.：C35Y
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070*125*50mm
• Total Weight：5180kg
• Engine Manufacturer：Yanmar
• Battery：12V,90ah
• Transport Package：Standard Export Packing
• Trademark：Royal
• Origin：China
• HS Code：84272090
• Production Capacity：30000PCS,Year

Royal forkliftModel T20/25Y T30/35YPower Type DieselRated Load Capacitykg25003500Load Centremm500Rated Lift Heightmm3000Free Lift Heightmm140150Mast Lowered Heightmm22702270Mast Extended Height (With Backrest)mm43354335Overhead Guard Heightmm22252275Ground Clearance (Bottom of Mast)mm270270Length to Face of Fork (Without Fork)mm29913001Overall Widthmm16001600Fork Size (L×W×T)mm1220x125x401220x125x50Fork Overhang (Wheel Center to Fork Face)mm586606Travel Speed (No Load)km/h2022Travel Speed (Full Load)km/h1822Lifting Speed (Full Load)mm/sec570450Lowering Speed  (Full Load)mm/sec445500Rated Output / r.p.m.kw42.1/2300

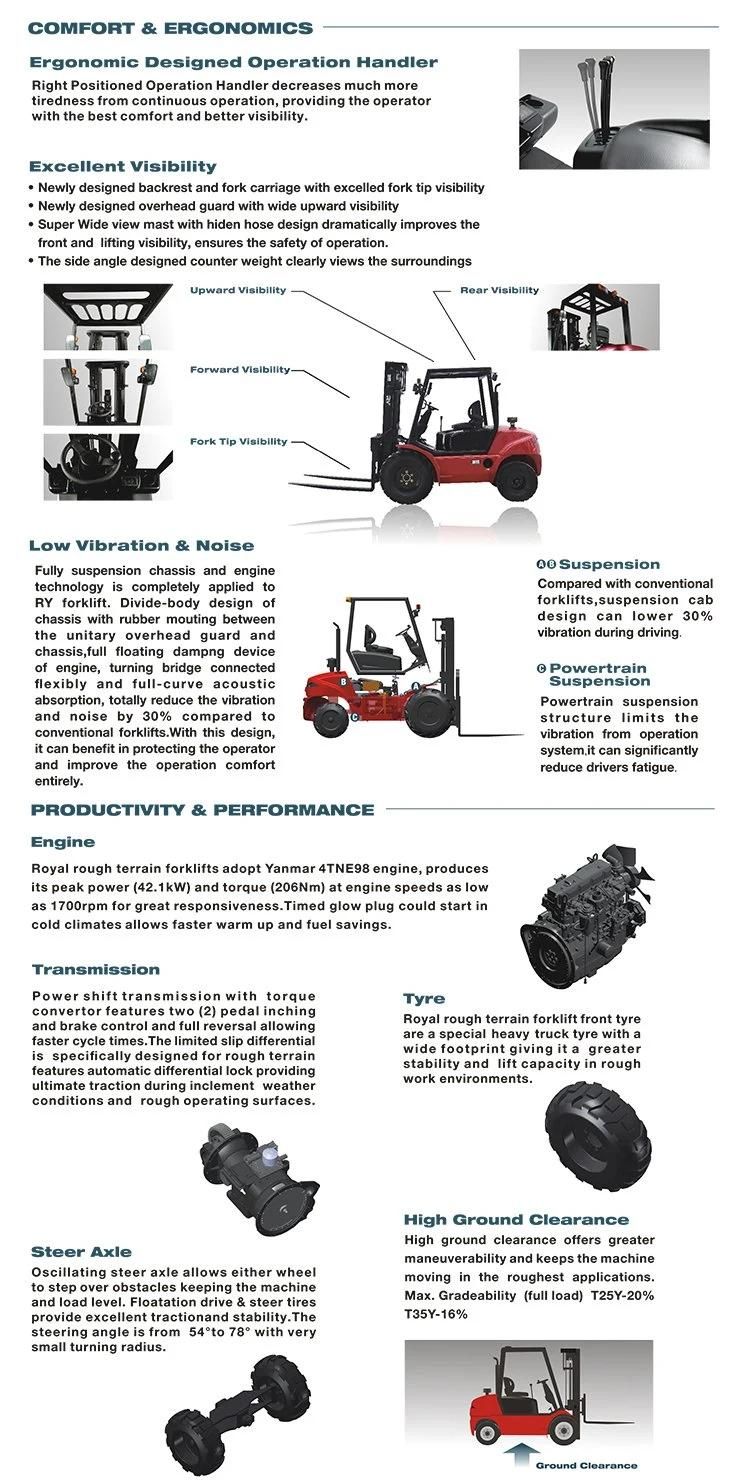

Main features:

1. Our diesel forklift are equipped with Chinese Xinchai A498(EUIII)Diesel engine, Yanmar 98(EUIII) Diesel engine.
2. Suspension cab for our forklift truck.
3. Good view of front, 300mm small steering wheel reduce tiredness
4. Excellent cooling system water tank is 25% bigger than others
5. Suspension pedal and hand brake with button(same like car, more safety)
6. Same seat supplier with Toyota
7. LCD display meter with tempered glass protective overlay
8. Upward visibility



Company Introduction

-- One of biggest forklift manufactuer in China;
-- Top 10 forklift exporting factory in China;
-- Specialized R&D Team, After-sales service Team;
-- Factory scale: 150,000 M3 (1st phase);
-- Production Capacity: 10,000 Units/Year;
-- Selling to more than 86 countries;
-- 54 offcial dealer in more than 40 countries: Germany, UK, Russia, Australia....
-- Take international market as development direction, more than 90% forklifts are exproted to world market.

FAQ

Q1. How is the warranty of your products.

A: We offer 2 years warranty for the whole products, during the warranty time, we could provide spare parts for free under the condition of quality problem.But except some consumable parts.

Q2. What about the claim process and after-service?
A: We have professional technical team who can speak fluently English, French, Spanish, Russia, German,Portugueseto provide timely and accurate technical support to our customer.

Q3. What about the lead time?

A: Some model products have in stock, others nomal production time 4-5 weeks.

Q4. Do you have any MOQ limit for order?

A: Forklift 1 units, Electric stacker/Pallet: 2 units, manual equipment 20 ft container

Q5. Is it OK to print my logo on product or package?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: What is your payment method?

A: In general,we accept 30% T/T deposit and balance payment before shipmeng.
   But for big order,we can give the best payment method.
