• Model NO.：Diesel Forklift
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：Used
• Transport Package：Nude Packaging
• Origin：China
• HS Code：8702109100
• Production Capacity：500,Year

Model FD20TFD25TFD30TFD35TFD40T2Power Type10DieselDieselDieselDieselDiesel3Rated Capacitykg200025003000350040004Load Centremm500Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1070×122×401070×125×451070×125×501070×150×507Mast Tilt AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm4504804859Ground Clearance (Bottom of mast)mm11012010Overall DimensionLength to face of fork (Without fork)mm2460253026602720389011Overall Widthmm115012251285134512Mast Lowered Heightmm19952075215013Mast Extended Height (With backrest)mm4030425014Overhead Guard Heightmm2120214015Turning Radius (Outside)mm21702240240024602560Performance16SpeedTravel (Full load)km/h17/1918/19.516.5/1817Lifting (Full load)mm/s550/580450/500380/48018Max. Gradeability%27/2018/20 Chassis 19TireFront 7.00-12-12PR28×9-15-12PR28*9-1520Rear 6.00-9-10PR6.50-10-10PR650-1021Wheelbase mm16001700180022Service Weightkg33303670429046905100Power&Transmission23BatteryVoltage/Capacity                                      V/Ah12/80 24EngineModel Chinese engine A490/C490Chinese engine C49525Manufacture China26Rated Outputkw/rpm52/2500(38.3/2500)61/2450(44.8/2450)42/245027Rated TorqueN@m/rpm15.7/1800(15.4/1800)19/1800(186/1800)15.7/180028No. of Cylinder 429Bore×Strokemm86×10295.4×107 30Displacementcc23693059316831 Fuel Tank CapacityL7033TransmissionTypeT means Torque Converter, C means Clutch 34StageFWD/RVS 1/1(2/2)

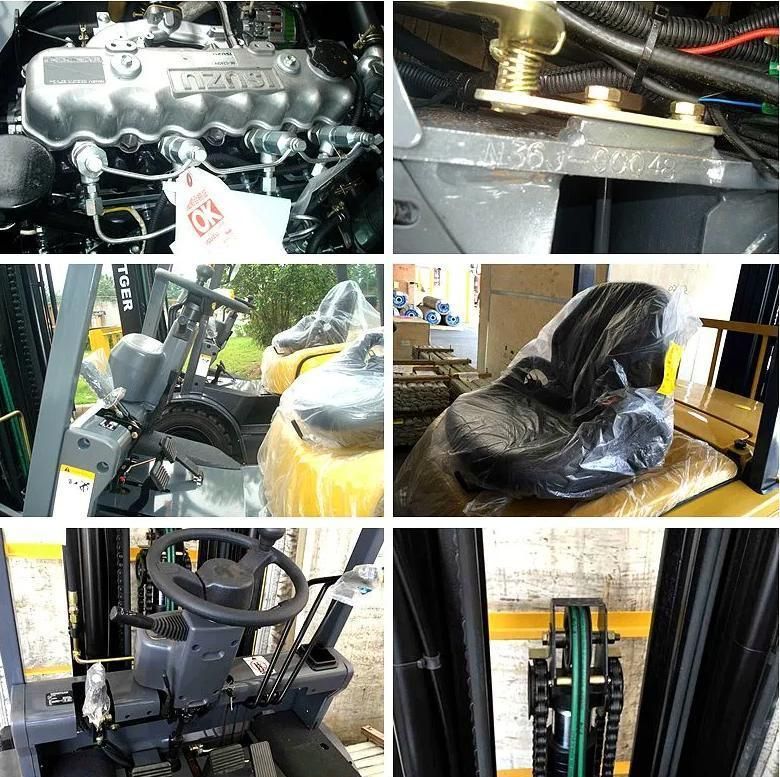

Detailed Photos

Packaging & Shipping
