• Model NO.：XCB-D30
• Fuel：Diesel
• Load center：600mm
• Lift height：>4.5m
• Condition：New
• Operating Weight：10000kgs
• Tyre Type：Pneumatic& Solid
• Transmission Type：Power Shift
• Wheel Base：3750mm
• Max. Draw-Bar Pull, with Load：58kn
• Engine Type：Electronic Controlling, Turbocharged, Air-to-Air I
• Internal Combustion Engine Model：Cummins Qsb4.5
• Transport Package：1*40hq or Bulk Shipping
• Specification：7995*2590*4190mm
• Trademark：RAYGOO
• Origin：China
• HS Code：8427209000
• Production Capacity：50000

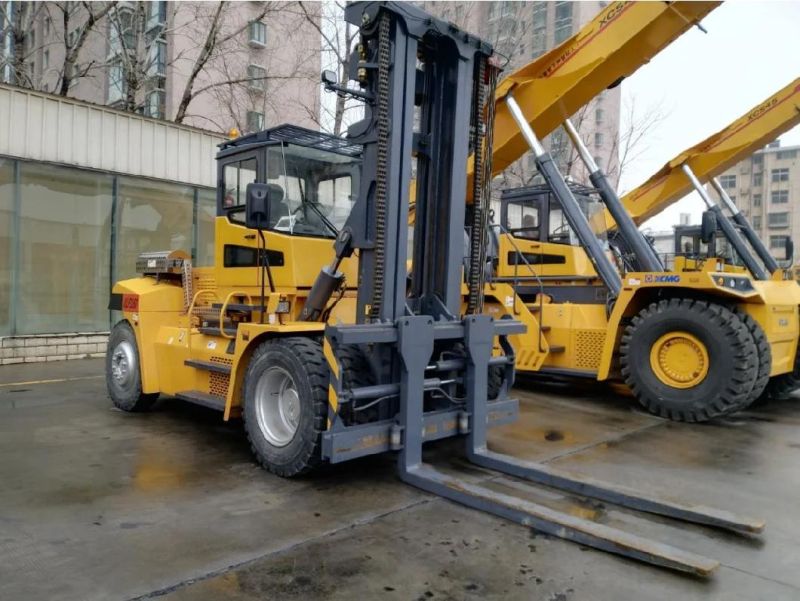

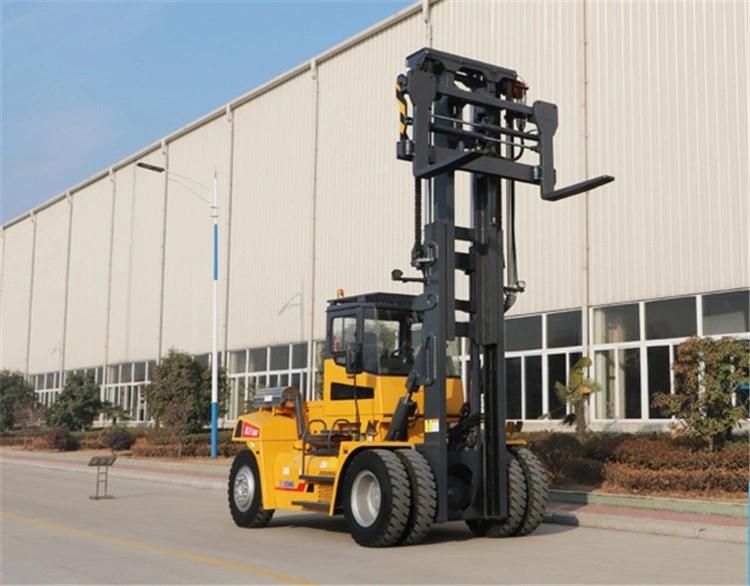

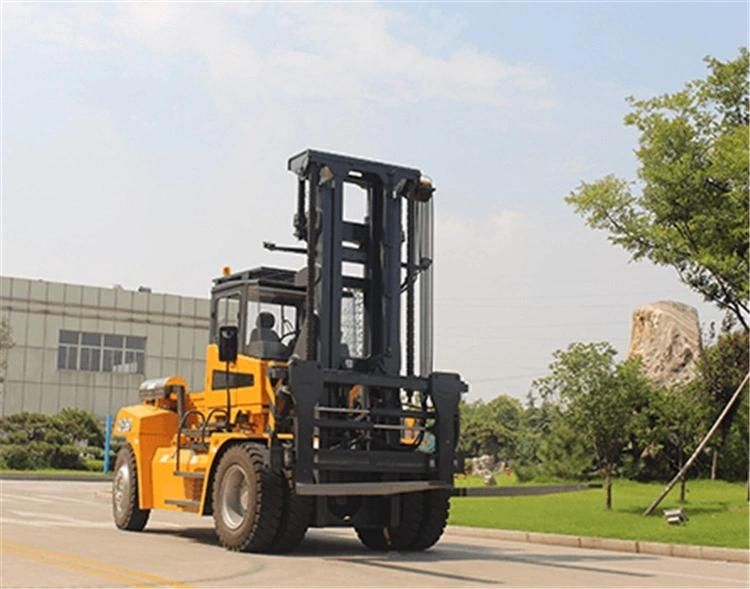

Overview Product DescriptionProduct ParametersCharateristics1Manufacturer XCMG2Model CPCD1003Power unit Diesel4Rated Capacitykg100005Load Centermm6006Operation Driver SeatedDimensions7Overall max. lifting height(with backrest)mm40858Max. lifting heightmm30009Height mast retractedmm285010Free lift heightmm20011Backrest height(from upper face of forks)mm101512Overhead Guard clearance(from face to seat)mm112013Overall height(overhead guard)mm256014Overall length(with forks)mm548015Overall length(without forks)mm426016Front overhangmm71817Rear overhangmm74018Wheel basemm280019Coupler heightmm54020Min. ground clearance under mastmm24521Overall widthmm216522Lateral fork adjustment outside of fork (Max/Min)mm2140/41023Tread(front)mm160024Tread(rear)mm170025Outside turning radiusmm390026Inside turning radiusmm20027Min. intersecting aislemm354028Tilting angles(forward/backward) 6°/12°29Fork dimensions(axbxc)mm80*1220*175Performance30Max. Traveling speeds(With/Without load)Km/h26/3031Lifting Speeds(With/Without load)mm/s360/38032Lowering Speeds(With/Without load)mm/s≤600/≥30033Max. Draw-bar pull, With loadkN5834Max. Negotiable Gradient(With/Without load)%22/20Weights35Service Masskg1251036Load Wheel with load(Front/Rear)kg20380/213037Load Wheel without load(Front/Rear)kg5700/6810Tyres38Wheels number front/rear(x=driven) 4x/239Tyre Type PNEUMATIC TYRE40Tyre size(front) 9.00-20-14PR41Tyre size(rear) 9.00-20-14PR42Service Brake Hydraulic-Foot Pedal43Paking Brake MECHANICAL-HAND BRAKE RODDrive44Battery(Voltage/Capacity)V/Ah2x12/8045Internal Combustion Engine Model Cummins QSB4.546Engine type Electronic controlling, Turbocharged, Air-to-air intercooled diesel engine47Internal Combustion Engine Rated OutputkW/rpm82/220048Internal Combustion Engine Rated TorqueNm/rpm488/150049Internal Combustion Engine Number of Cylinder 450Internal Combustion Engine DisplacementL4.551Internal Combustion Engine Fuel Tank CapacityL14052Transmission type Power Shift53Transmission Number of Speed Fwd/Bwd 2/2




 Our machines advantages

1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.

5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.


7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
