• Model NO.：SDJA
• Fuel：Hydraulic
• Load center：500mm
• Lift height：>5000mm
• Condition：New

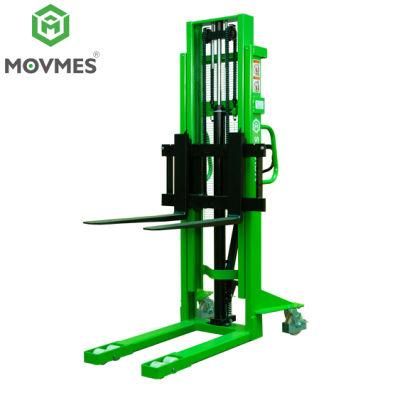

• Name：Manual Forklift Pallet Stacker
• Fork Height,Lowered：70mm
• Load Center Distance：500mm
• Height,Mast Lowered：2000mm
• Max.Lift Height：1600mm
• Height,Mast Extended：2010mm
• Overall Length：1380,1640mm
• Overall Width：805mm
• Fork Dimensions：48,100,800(1060)mm
• Width Overall Forks：200-745 mm
• Turning Radius：1235mm
• Lift Speed,Laden/Unladen：25mm
• Lowering Speed.Laden/Unladen：Manual Control
• Service Weight：161 Kg
• Transport Package：1 Set in One Package
• Specification：1380x805x2000
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

Main Configuration1.) SDJA500----Adjustable welding 800mm fork2.) SDJA1000/1500----Adjustable forged 800mm fork3.) Nylon wheels

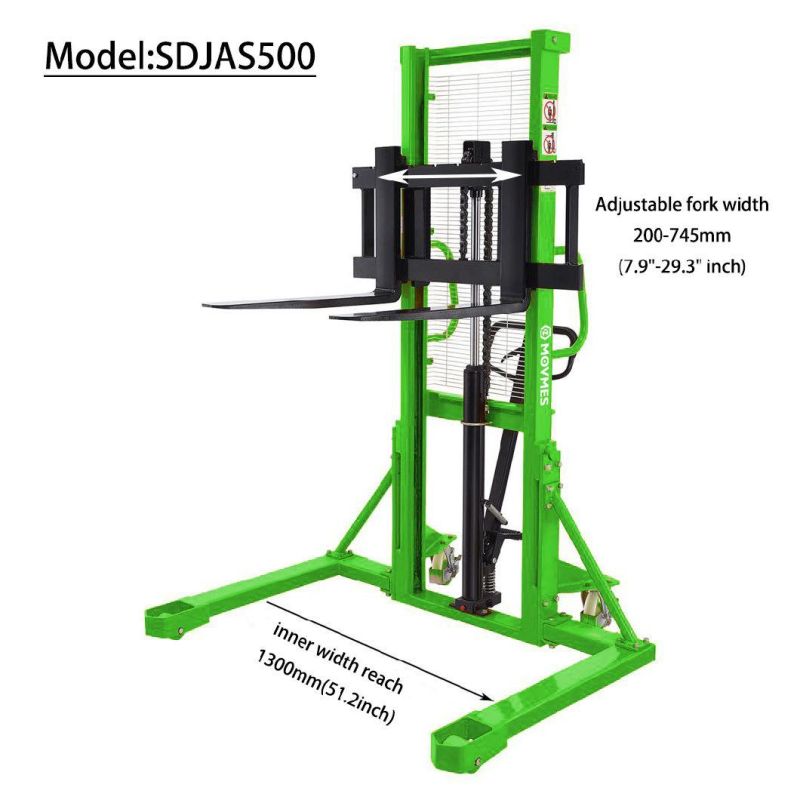

SDJAS 500/1000KG straddle legs manual stacker with 1600mm lifting height CDD10/15B-III 1.0/1.5ton semi-electric stacker with 1600--3500mm lifting height  CDDR15 1.5ton Full electric stacker with 3000mm lifting height

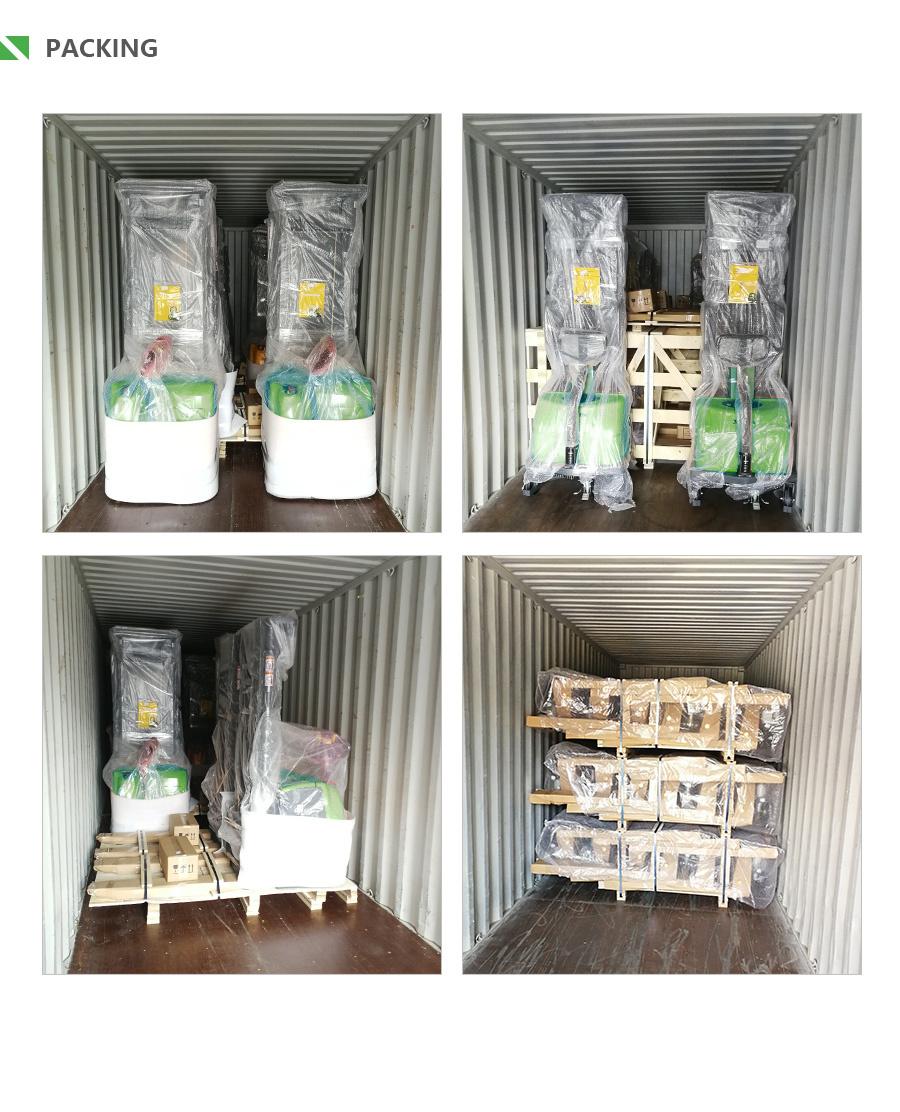

Packing and Delivery
High praise from customer

CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

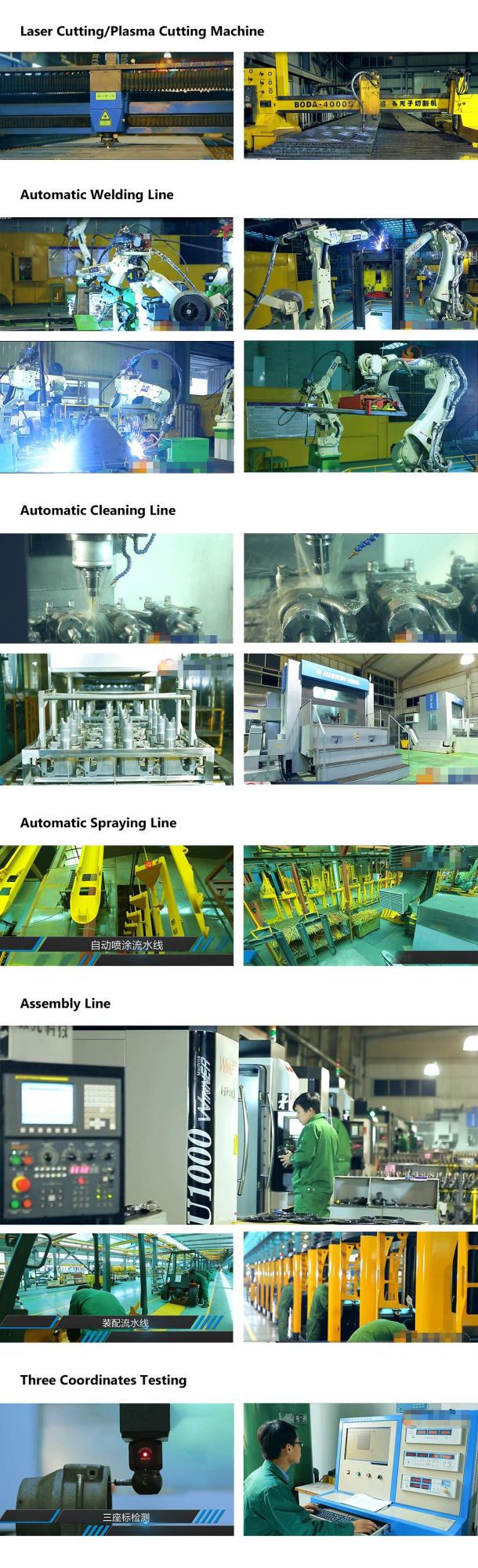

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the lifting height can be chosen

A2: 1600/2500mm .



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
