China Small Telescopic Forklift (HQ910T) with EPA 4 Engine
Weifang Haiqin Top Machinery Co., Ltd.- After-sales Service:24 Hours Every Day of Technology and Parts Service
- Warranty:12 Months
- Cab Location:Adjustable
- Type:Diesel Forklift
- Power:Diesel Engine
- Load Capacity:1T - 5T
Base Info
- Model NO.:HQ910T
- Fuel:Diesel
- Load center:500mm
- Lift height:3000~5000mm
- Condition:New
- Engine:Euro 5 or EPA 4 Engine
- Loading Weight:1000-1500kg
- Operating Weight:4200kg
- Steering Angle:35
- System:Torque Converter
- Max Lift Height:4.5m
- Brake:Disc Brake
- Operation:Joystick
- Max Drive Speed:32km,H
- Engine Power:37kw
- Attachments:Pallet Fork, 4 in 1 Bucket etc
- Transport Package:2 Units in One 40 Container
- Specification:CE, ISO, SGS, ROP&FOPS
- Trademark:Haiqin
- Origin:Shandong, China
- HS Code:84295100
- Production Capacity:8000 Units , Year
Description
Basic Info.
Model NO. HQ910T Fuel Diesel Load center 500mm Lift height 3000~5000mm Condition New Engine Euro 5 or EPA 4 Engine Loading Weight 1000-1500kg Operating Weight 4200kg Steering Angle 35 System Torque Converter Max Lift Height 4.5m Brake Disc Brake Operation Joystick Max Drive Speed 32km/H Engine Power 37kw Attachments Pallet Fork, 4 in 1 Bucket etc Transport Package 2 Units in One 40 Container Specification CE, ISO, SGS, ROP&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / YearProduct Description
Haiqin Brand Small Telescopic Loader (HQ910T) with Ce and Euro 5 or EPA 4 engine1, HQ910T Telescopic Telescopic Loader Standard Equipment:
China Yunnei or Xinchai Euro 5 or EPA 4 KOHLER Engine,Standard Bucket, Real Rops & Fops Cabin, Quick Hitch, Joystick Handle, Comfortable high quality Seat, Adjustable Steering Wheel, 31*15.5-15 Agricultural Tyre, Wheel-reducer Axle, Disc Brake, 130W Heater, Backward camera, Blinking Lamp Without Key, Free Service Spare Parts etc .
2, Details Specifications of HQ910T Telescopic Loader
1.0 Engine Details
(1) Model: China Yunnei or Xinchai Euro 5 or EPA 4 KOHLER Engine
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW (50.32H. P. )
(4) Rated Speed: 2200 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H
2.0 Transmission System :Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) BucketCapacity: 0.55 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 1200kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 5720mm
(2) Overall Height: 2550mm
(3) Overall Width: 1700mm
(4) Max. Lifting Height: 4500mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick handle
(6) Self levering
6.0 Brake System
(1) Service Brake: Disc brake |
(2) Parking Brake: Hand operated |
7.0 Tyre: Model: 31*15.5-15 or 23.5/70-16
8.0 Wheelbase: 2400mm
9.0 Track: 1415mm
10. System pressure: 20Mpa; Hydraulic output: 70L/min
11, Operation weight:4100kg

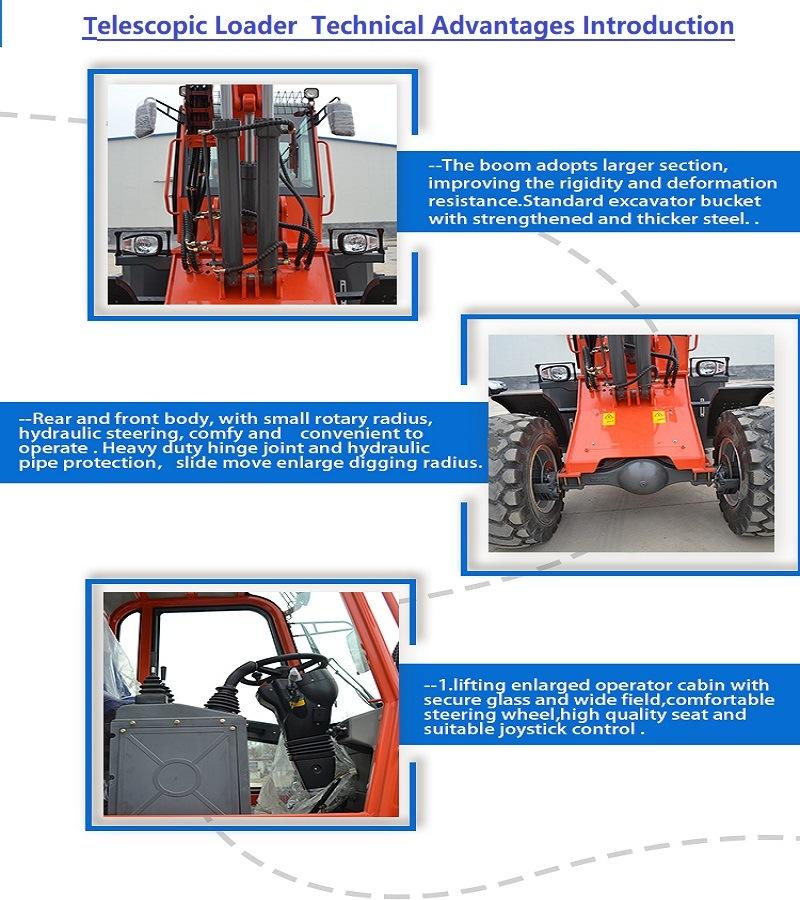

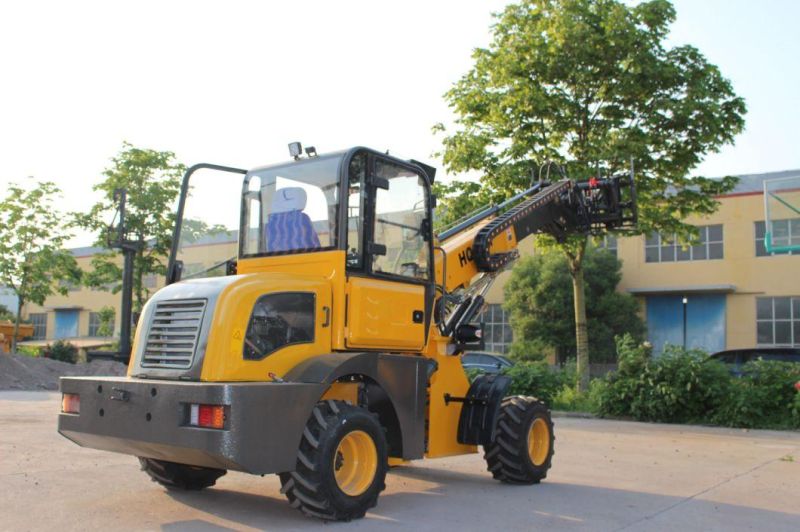

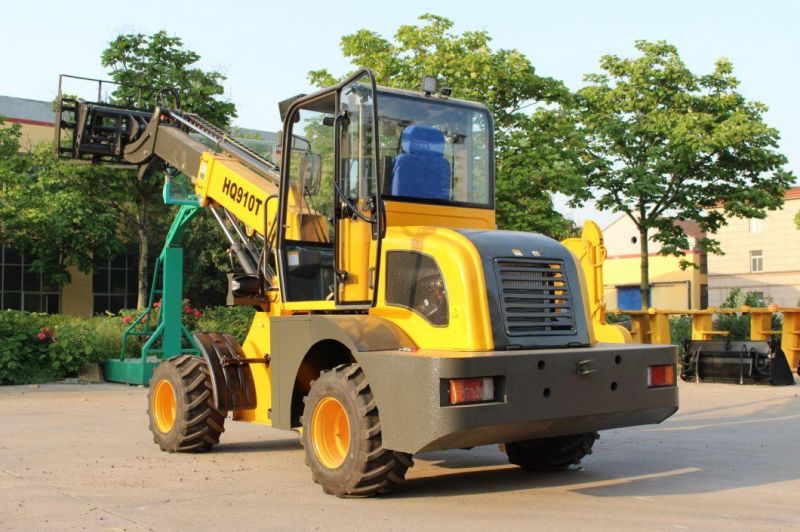

3, Details Photos of HQ910T Telescopic loader

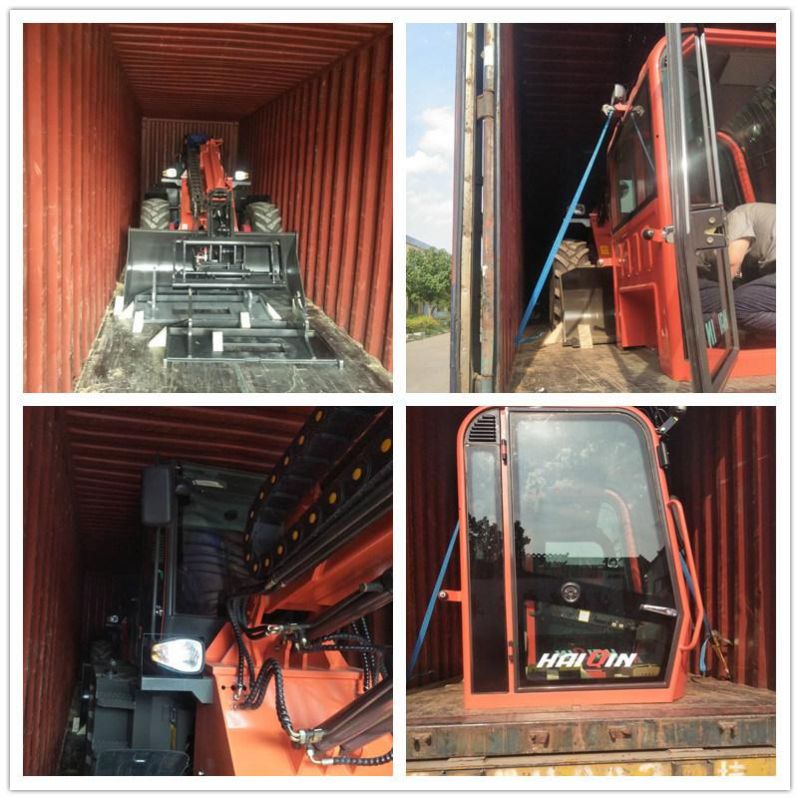

4, Professional Loading and Packing of HQ910T Telescopic Loader

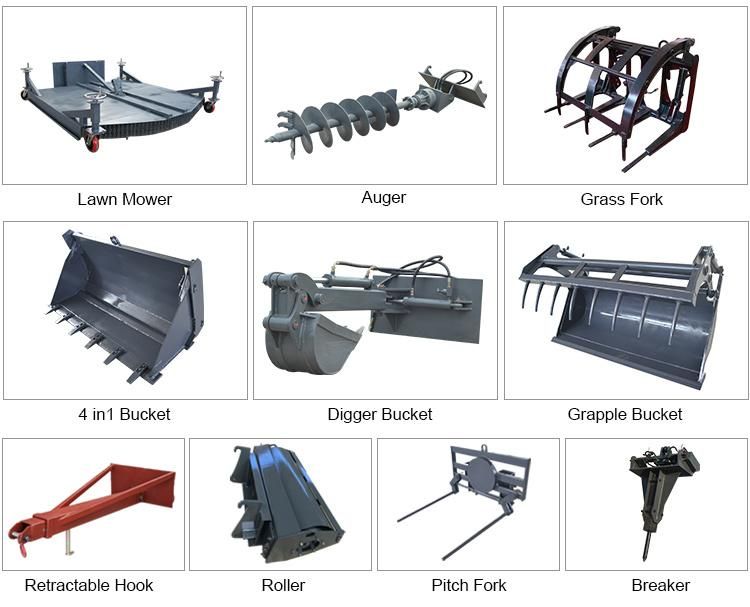

5, Optional Attachments for HQ910T Telescopic Loader

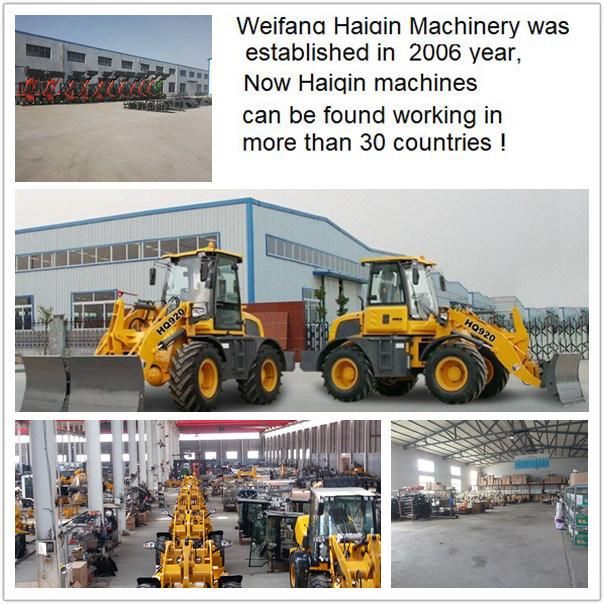

6, Factory introduction of Haiqin Machinery

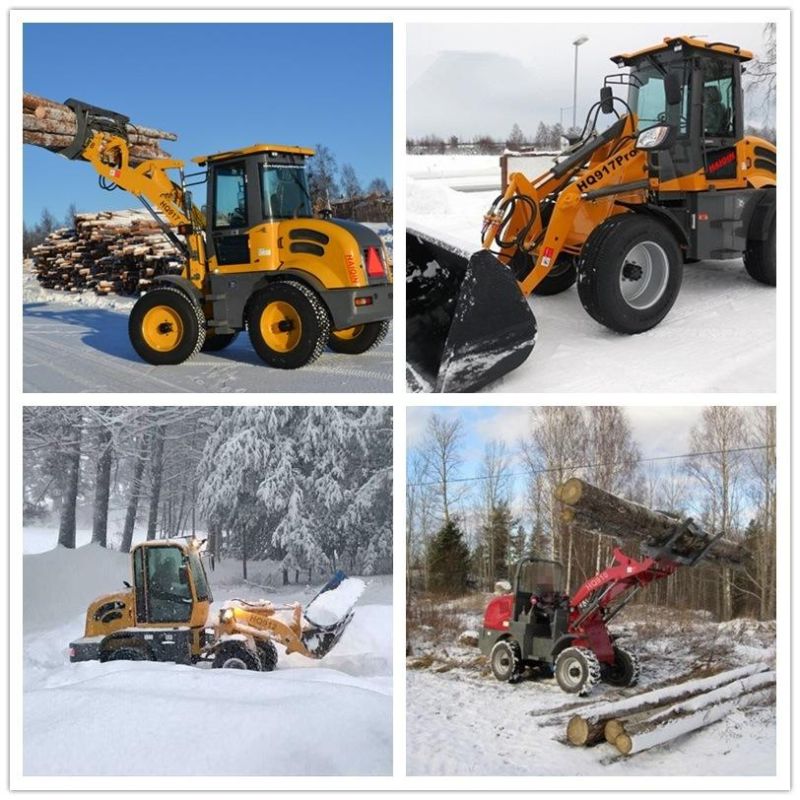

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

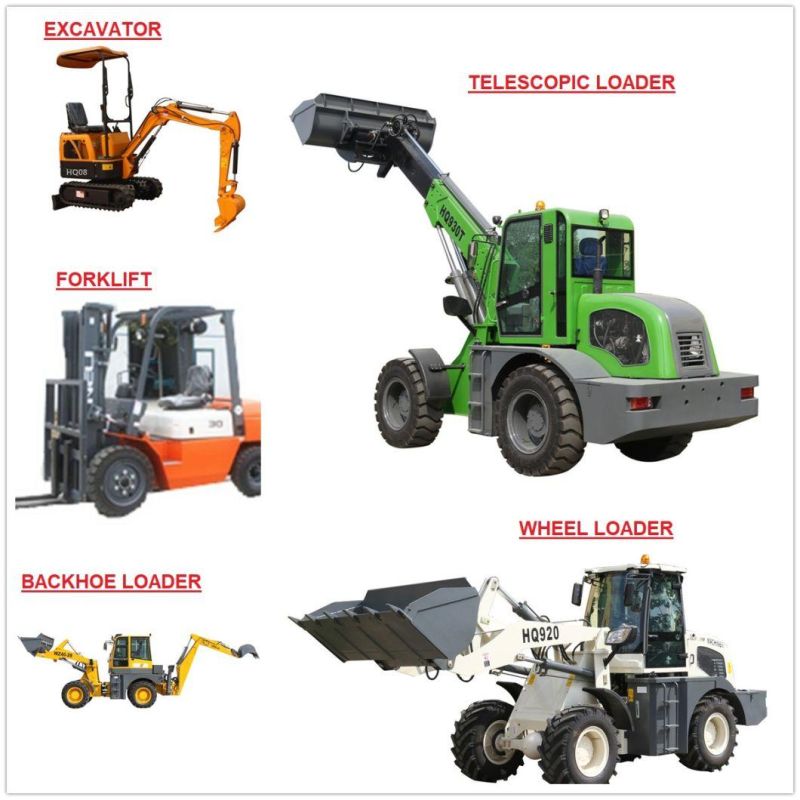

8, MORE PRODUCT CATEGORIES
9, Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
