• Model NO.：FB15S
• Lift height：3000~5000mm
• Condition：New
• Name：Three-Wheel Counterbalanced Forklift Battery 1.5to
• Max. Lifting Height：3000mm
• Fork Size：920mm*100mm*40mm
• Weight：3100kg
• Wheelbase：1295mm
• Color：Customize
• Overall Length (Without Fork)：1860mm
• Rated Capacity：1500kg
• Wheel Base：1295mm
• Battery Voltage：48V
• Transport Package：Container
• Specification：1860mm*1070mm*1980mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Manufacturer LTMGModel FB15SRated capacitykg1500Load centermm500Power type BatteryTire typeFront/Rear solidWheelsFront/Rear 2x2Lift heightmm3000Free lift heightmm130Fork sizeL*W*Tmm920*100*40Mast tilt angleFwd/Bwddeg5/7Overall length (without fork)mm1860Overall widthmm1070Mast height fork loweredmm1980Overall height fork raisedmm3945Overall height (overhead guard)mm1990Turning radius (outside)mm1500Load distance (centerline of front axle to front face of forks)mm360Wheel basemm1295TreadFrontmm895Rearmm205Min.Under-clearance (full load/no load)Bottom of mastmm80/85Bottom of framemm100/110SpeedTravel speed With loadkm/h14Without loadkm/h15.5Lifting speedWith loadmm/sec300Without loadmm/sec470Max.Drawbar pullWith/without loadkn14.5Max.GradeabilityWith/without load%20Self weightkg3100TyreSizeFront 18x7-8  PRRear 16x6-8 PRBatteryType Lead-acid batteryVoltage V48CapacityAH505MotorDrive motorkw/rpm2x6.5/1500Hydraulic motorkw/rpm12/2200Controller  Italian SME AC

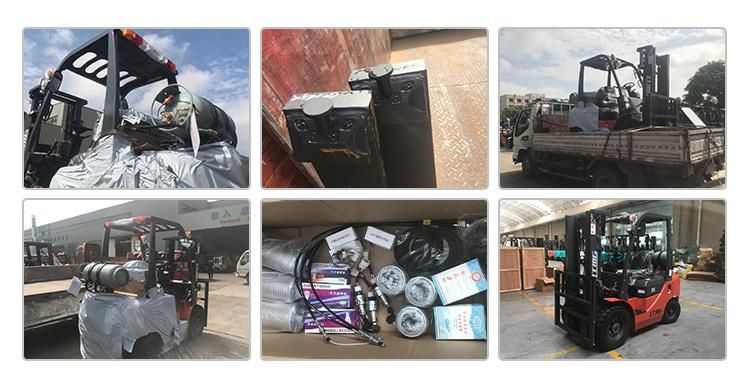

Packing&Shipping

Factory Overview

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
