• Model NO.：E18e
• Fuel：Electric
• Load center：500mm
• Lift height：3000-6500mm
• Condition：New
• Controller：Italy Zapi
• Transmission：Germany Zf
• Driven and Pump Motor：USA Kds
• Option Battery：Germany Hawker
• Option Seat：Germany Grammar
• Option：Finger Tips
• Transport Package：Standard Export Packing
• Trademark：Royal
• Origin：China
• HS Code：84271090
• Production Capacity：10000PCS,Year

 General 1Manufacturer RY2Model E16eE18eE20e3Power Type  Electric4Rated Load Capacitykg1600180020005Load Centremm500 Characteristic & Dimension6Rated Lift Heightmm30007Free Lift Heightmm1508Tilting Angle (F/R, α°/β°)Deg6°/6°9Height when Mast Loweredmm201510Height to Safeguardmm208011Min. Ground Clearancemm9012Length (to Fork Face)mm19981998211313Widthmm10821082114014Fork Size (L×W×T)mm920×120×3515Fork Spread (Min./Max.)mm200/97016Overhang Frontmm37817Overhang Rearmm20020020018Min. Turning Radiusmm16201620173519Height when Mast Liftedmm402520Working Aisle Width with Pallet (Ast)*, 1000×1200 Crosswaysmm33233323343821Working Aisle Width with Pallet (Ast)*, 800×1200 Lengthwaysmm344834483563 Performance22Travel Speed (Full Load)km/h12.523Travel Speed (No Load)km/h13.524Lifting Speed (Full Load)mm/s30029028025Lifting Speed (No Load)mm/s44026Gradeability (Full Load)%1527Gradeability (No Load)%1528Service Brake (Operation/Control) / Foot/Powershift29Parking Brake (Operation/Control) / Hand/Mechanical Chassis30Tyre (FrontX2) 18*7-8200/50-1031Tyre (RearX2) 15*4.5-832Tread (Front)mm91291294033Tread (Rear)mm18534Wheelbasemm142014201535 Weight35Total Weight (Include Battery Box)kg30003100325036Front Axle Weight Distribution (Full Load)kg40254370469237Rear Axle Weight Distribution (Full Load)kg57553055838Front Axle Weight Distribution (No Load)kg14101425152039Rear Axle Weight Distribution (No Load)kg159016751730 Drive40Drive Motorkw4*241Pump Motorkw1142Standard BatteryV/Ah48/50048/50048/57543Controller Type  AC  44Controller Manufacturer  ZAPI45Operating Pressure for AttachmentMpa14.5

Ergonomic Design

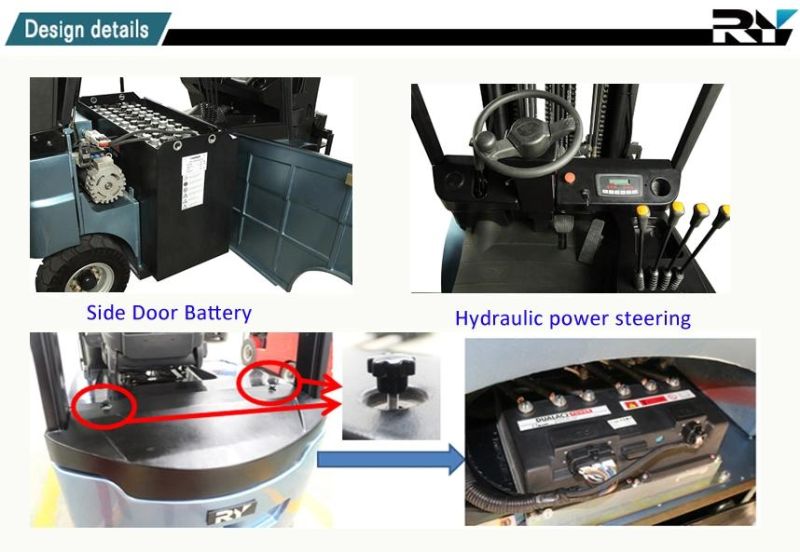

 Ergonomic Design1Good view of front, 300mm small steering wheel Reduce Tiredness2Hand brake with Button (same like the car) more safety3Right placed operator levers, more convenient and save effort4Same seat supplier of Toyota5LCD display meter with tempered glass protective overlay6Suspension pedal operate like a car7Upward visibility8side door battery Change battery in one minute





Who we are?

     √ We are experienced and with power and passion, we love what we are doing.
     √ We are professional, we can provide premium solutions for you.
     √ We offer the ergonomic design products to meet the international requirement.
     √ Strong research and design ability to offer high quality products.
     √ We are not only selling products,we offer full service convenience.


 FAQ

Q1. How is the warranty of your products.

A: We offer 2 years warranty for the whole products, during the warranty time, we could provide spare parts for free under the condition of quality problem.But except some consumable parts.

Q2. What about the claim process and after-service?
   we have professional technical team who can speak fluently English, French, Spanish, Russia, German,Portugueseto provide timely and accurate technical support to our customer.

Q3. What about the lead time?

A:Some model products have in stock, others nomal production time 4-5 weeks.

Q4. Do you have any MOQ limit for order?

A: Forklift 1 units, Electric stacker/Pallet: 2 units, manual equipment 20 ft container

Q5. Is it OK to print my logo on product or package?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: What is your payment method?

A: In general,we accept 30% T/T deposit and balance payment before shipmeng.
    But for big order,we can give the best payment method.



Company Information
Factory: Anhui Royal Forklift Co., Ltd.

Add:No.18,xingye Road,Baochanshan, Industrial Park,Ma'anshan City, Anhui Province,P.R.China 238100

Marketing Center:Royal Forklift (Suzhou) Co., Ltd.

Add:E102, No. 388 Ruoshui Rd,Suzhou, Industrial Park,Suzhou,China 215123

To make a good cooperation with us?Please contact your  customer-service manager.
