• Model NO.：ERB20
• Lift height：3000mm
• Condition：New
• Wheelbase：1325mm
• Weight：1280kg
• Fork Size：1150mm180mm*60mm
• Controller：Curtis
• Operating Type：Stand on
• Leg Type：Narrow Legs
• Battery：24V,280ah
• Service Weight with Battery：1280kg
• Min.Groud Clearance：30mm
• Min.Turning Radius：1630,1990mm
• Travel Speed,Laden/Unladen：5,5.5km,H
• Transport Package：Container
• Specification：1970mm*1050mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：1000sets,Year

Model ERB20 Type  Narrow legs Mast type  2-Stage STD Load capacitykg2000 Load centermm600 Wheel basemm1325 Operating type  Walkie/Stand onWheel type PU Wheel quantity driving wheel/Balance wheel/Bearing wheel 1/2/4 Standard lift heightmm3000 Lowered fork heightmm86 Fork size(length/width/thickness)mm1150(1200)/180/60 Overall lengthmm1970/2390 Overall widthmm1050Outside with between legsmm570/600/650/685 Inside with between legsmm180/230/280/315 Min.turning radiusmm1630/1990Min.aisle width for pallets 800×1200mm2180/2580Min.aisle width for pallets 1000×1200mm2210/2600 Min.groud clearancemm30 Travel speed,laden/unladenkm/h5/5.5 Lift speed,laden/unladenmm/s80/120 Travel speed,laden/unladenmm/s80/90 Gradeability,laden/unladen%5/8Drive motor /Lift motor/Steering motorkwAC1.5/DC3.0/DC0.15Battery voltageV24 Battery capacityAh280Brake Electromagnetic/Regenerative Controller CURTIS Battery weightkg235 Service weight with batterykg1280
Packing and Shipping

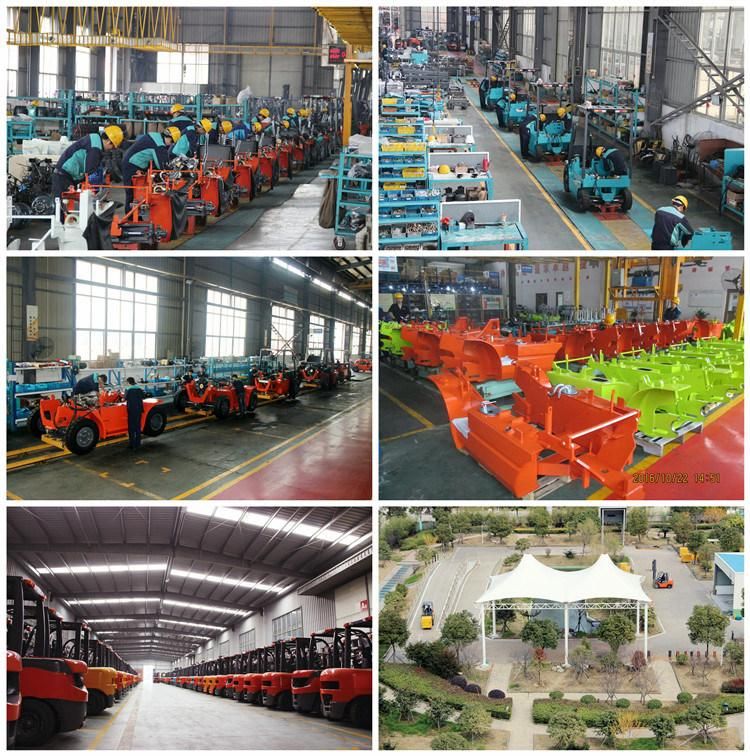

Our Factory



Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

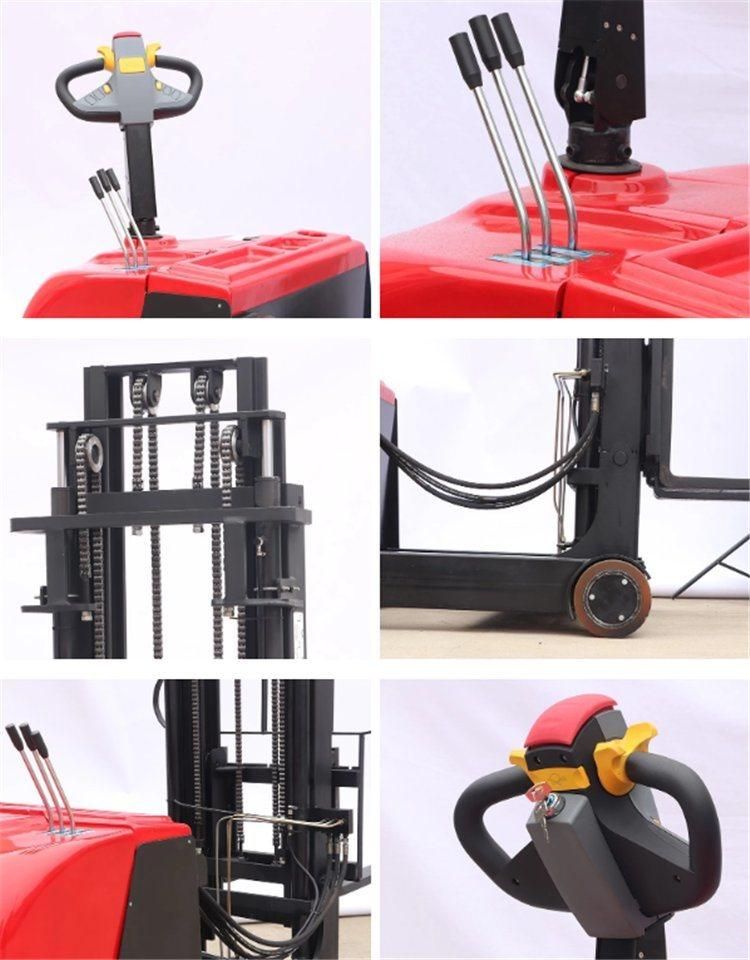

Product Features
 1.Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering, fully humanized design.

3. The equipment using the German imports of seal, bearing and electrical components,further to ensure the reliability of the vehicle.

4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

5. With strict accordance of ISO9000 and CE standards for product development and production,ensure product quality.

6. Flexible and convenient operation, energy saving and environmental protection, vehicle low noise,stable operation, high safety coefficient.

7. Large capacity of traction battery for vehicles, and fully guarantee the continuous working time.

8. All sold products enjoy a high quality after sale service, ensure the spare parts supply timely,authenticity and continuity, to solve customer any worry from the later period.

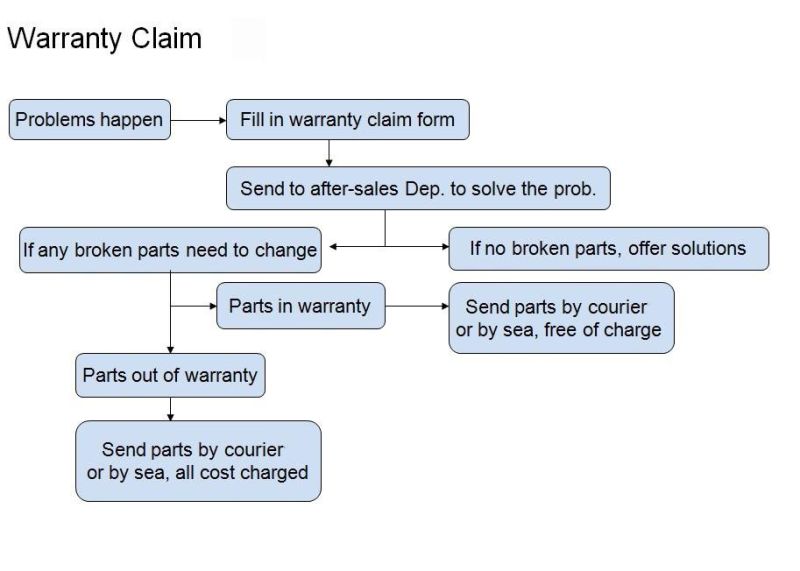

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.




FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 30 days
