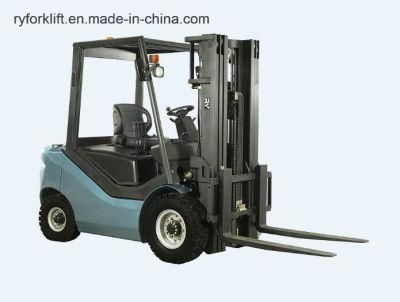

3.5t Diesel Forklfit/ LPG Forklfit/Electric Forklfit/ Gasonline&LPG Forklfit Truck
ROYAL FORKLIFT (SUZHOU) CO., LTD.- Cab Location：Adjustable
- Type：Ordinary Combustion Forklift
- Power：Diesel Engine
- Load Capacity：3.5t
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：C35
- Lift height：3000-6500mm
- Condition：New
- Engine Manufacturer：Isuzu,Mitsubishi,Xinchai,Yanmar,Nissan
- Fuel Tank Capacity：50L
- Transmission Type：Powershift
- Option Tyre：Double Pneumatic,Solid Tyre,No Marking Solid Tyre
- Option Attachment：Side Shifter,Fork Positioner,Drum Clamps
- Option：Cabin, Air Condition
- Transport Package：Standard Export Packing
- Trademark：Royal
- Origin：China
- HS Code：84272090
- Production Capacity：1000PCS,Year
Description
Manufacturer RY MODEL C305E C35D C35Y General Power Type DIESEL engine MITSUBISHI EuIII XINCHAI EuIII YANMAR Rated Load Capacity kg 3500 Load Centre mm 500 Characteristic & Dimension Rated Lift Height mm 3000 Free Lift Height mm 145 Mast Tilt Angle (F/R, α°/β°) Deg 6º/12º Mast Lowered Height mm 2060 Mast Extended Height (With Backrest) mm 4160 Overhead Guard Height mm 2198 Ground Clearance (Bottom of Mast) mm 145 Length to Face of Fork (Without Fork) mm 2716 Overall Width mm 1225 Fork Size (L×W×T) mm 1070×125×45 Fork Overhang (Wheel Center to Fork Face) mm 478 Rear Overhang mm 578 Turning Radius (Outside) mm 2420 Min.Right Angle Stacking Aisle Width
(Add Load Length and Clearance) mm 4120 Performance Travel Speed (No Load) km/h 20 Travel Speed (Full Load) km/h 18.5 Lifting Speed (Full Load) mm/s 430 Lowering Speed (Full Load) mm/s 450 Max.Drawbar Pull (Full Load) KN 16/15.7 16/15.7 17/16 Max.Gradeability (Full Load) % 20 Service Brake (Operation/Control) Foot/Powershift Parking Brake (Operation/Control) Hand/Mechanical Chassis Tyre (Front x 2) 28x9-15-12PR Tyre (Rear x 2) 6.50-10-10PR Front Tread mm 1000 Rear Tread mm 980 Wheelbase mm 1700 Weight Total Weight kg 3620 Front Axle Weight Distribution (Full Load) kg 5372 Rear Axle Weight Distribution (Full Load) kg 748 Front Axle Weight Distribution (No Load) kg 1492 Rear Axle Weight Distribution (No Load) kg 2128
(Add Load Length and Clearance)
