• Model NO.：SARS90
• Load Capacity：＞42T
• Fuel：Diesel
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Max. Lifting Height：21450 mm
• Max. Lifting Speed：675 mm,S
• Max. Travel Speed：30 Km,H
• Rated Lifting Capacity：90000kg
• Transport Package：Naked in Ship
• Origin：Jiangsu, China
• HS Code：8427109000
• Production Capacity：10000PC,Year

Basic Info.

Model NO. SARS90 Load Capacity ＞42T Fuel Diesel Load center 500mm Lift height >5000mm Condition New Max. Lifting Height 21450 mm Max. Lifting Speed 675 mm/S Max. Travel Speed 30 Km/H Rated Lifting Capacity 90000kg Transport Package Naked in Ship Origin Jiangsu, China HS Code 8427109000 Production Capacity 10000PC/Year

Product Description

PRODUCT DESCRIPTION

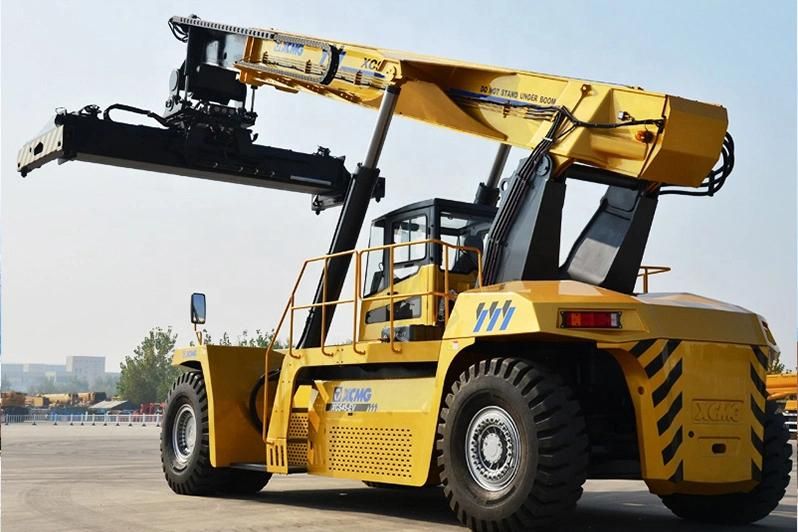

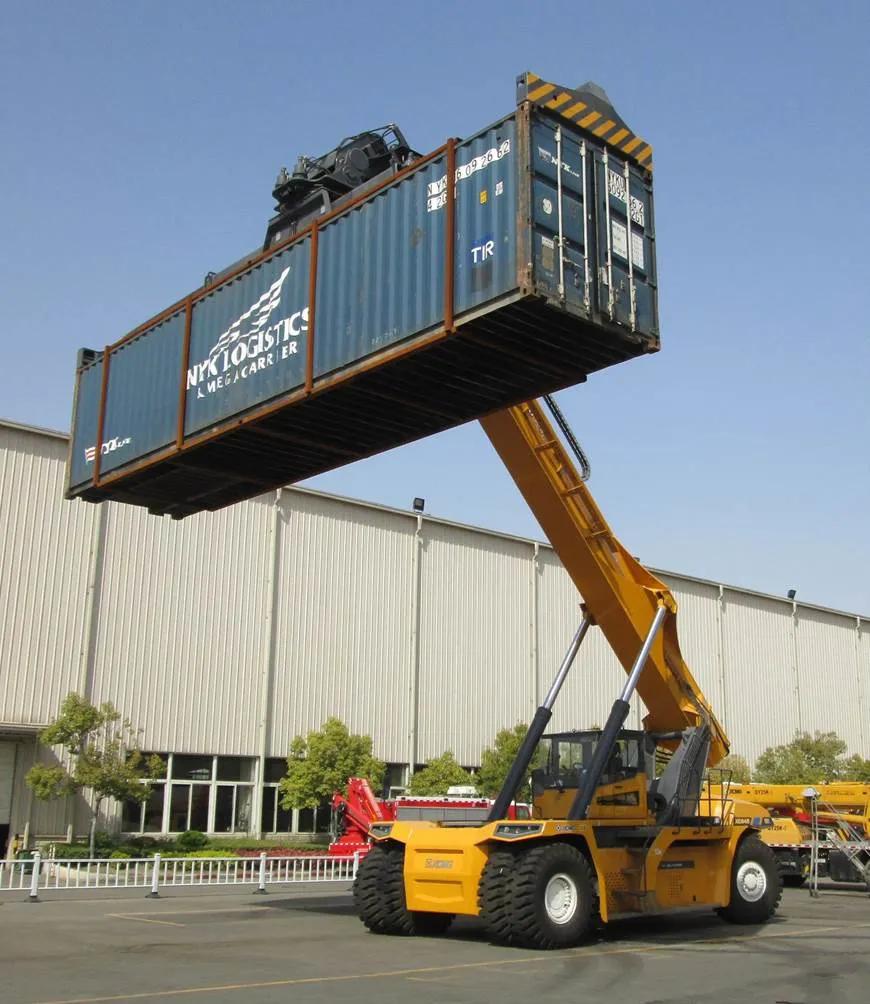

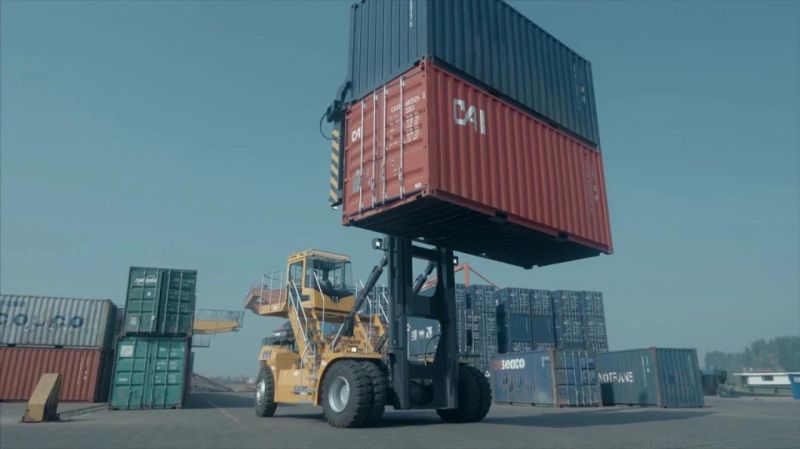

90 t empty container handler with the highest operational efficiency.   Unique low-speed large torque optimal transmission chain
matched and high power performance contribute to high job site transfer efficiency; with innovative intelligent mast technology,
the spreader height can be positioned by "one-key" operation, resulting in working efficiency 18% higher than the competitive
products in the industry; three energy-saving measures, such as multi-body dynamic optimization matching technology,
flow self-adaptive load sensitive hydraulic system and mast potential energy recovery technology, lead to more fuel-saving.


SPECIFICATION

Item	Unit	Parameter
Rated lifting capacity	kg	90000
Max. lifting height	mm	21450
Max. lifting speed	mm/s	675
Max. travel speed	km/h	30
Engine rated power	kW /(r/min)	164/2300

FEATURES
(1) Efficient operation
Unique low speed large torque optimal transmission chain, max. travel speed of 27 km/h and high power performance
contribute to quick job site transfer. Innovative oil cylinder differential control technology and vertically lifting spreader
technology contribute to rapid working
speed, leading to 15% improvement in efficiency while lifting and stacking containers.
(2) Safe and free from worry
With accumulation of experience for 75 years in crane safety control and the technologies developed for container reach
stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading, driving safety
active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved
to the greatest extent.
(3) Energy-saving and economical
Three energy-saving measures, such as flow self-adaptive load sensing hydraulic system, efficient power transmission
system and transmission ECO control, lead to high transmission efficiency, less energy loss, reduced fuel consumption
by 10% ~ 15%.
(4) Comfortable driving
Fourteen humanization-oriented designs, such as movable panorama driver's cab, man-machine interactive system for
providing abundant information and perfect lighting system, etc. offer more comfortable driving and operating environment.
