• Model NO.：CPCD30
• Transport Package：Nude
• Specification：2695X1225X2090mm
• Trademark：HELI
• Origin：Anhui
• Production Capacity：1000,Year

Model CPCD30Power type DieselRated capacitykg3000Load centermm500Lift heightmm4500Free lift heightmm145Fork sizemm1220×125×45Mast tilt angledeg6/12Front overhangmm482

OverallLength to face of forkliftmm2695Overall widthmm1225Mast lowerd heightmm2070Mast extended heightmm4250Overhead guard heightmm2090Turning radiusmm2420Min.right angle aisle widthmm2885

SpeedsDrive speedskm/h18/19.5Lifting speedsmm/s470/520Lowering speedsmm/s≤600Max.grade ability%15Total weightkg4350
TiresFrot 28*9-12PRRear 6.5-10-10PRWheeslbasemm1700
TreadFrontmm1000Rearmm970Hold under mastmm110

EngineModel Xinchang 490BPGRated outputkw/rpm37/2650Rated torqueN.m/rpm148/2000No.of cylinder 4DisplacementL2.54Fuel tank capacityL52

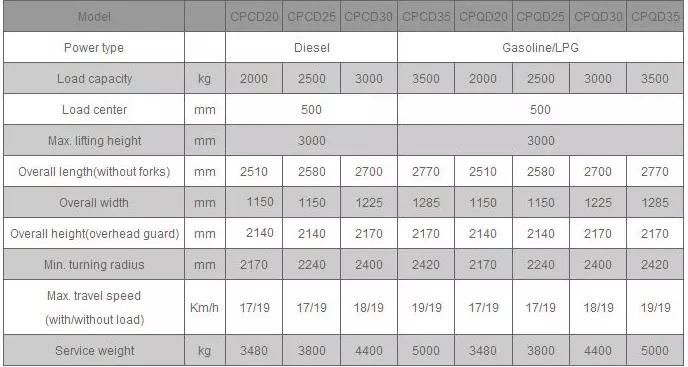

The other models of HELI forklift for your reference:

Feature of  CPCD30 3 ton HELI Forklift :

This new series forklift trucks that made with the latest technical design provide you excellent operating performance. HELI forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier.

Environmental Friendly

- The emission meets EC and EPA new regulation.

- High efficiency hydraulic system to lower the fuel consumption.

- Using environmental friendly material.

- Damping device on the mast to reduce impact and vibration.

- Sound insulating and absorbing device are used to reduce the noise.

 Ergonomics design

- Using power braking system to reduce footplate strength.

- Control lever right located to effectively reduce drivers arm tiredness.

- Dual combined switch lever as a car to enable easy operating.

- Wide mast with good visibility.

- Wide space for boarding and driving , increasing leg space.

- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.

Safety performance

- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.

- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.

- Safety device in mast hydraulic system prevents material falling down in case of hose broken.

- High pressure hose is designed far away from the driver.

- Safety wire harness, using waterproof plug
