• Model NO.：HH15
• Condition：New
• Configuration：According to Your Request
• Rated Capacity：1500kg
• Power Type：Diesel
• Gearbox Change Speed Type：Hydraulic,Mechanical
• Wheel Base：1400mm
• Max. Gradeability：20
• Self Weight：2740kg
• Transmission Type：Hydraulic , Mechanical
• Mast Tilt Angle：6,12
• Free Lift Height：162mm
• Transport Package：in Container
• Specification：CE, ISO
• Trademark：CHHGC
• Production Capacity：5000PCS,Year




















Standard  Configure
 ForksWater-thermometerTraction PinLoad-backrestOverhead guardElectric hornReversing lightChronoscopeFuel gaugeCharging indicationTool boxFree spare partsOil pressure alarmTurn light indicateHigh visibility mastSeat with arm and safety beltheadlampCombination rear lampFormed pedal padMultiple unit valveTransmission oil filterBack-up BuzzerTransmission oil scaleHydraulic circuit oil filterNeutral safety switchOverhead guard appenticeAir intake installationDurable tyreCable type parking brakeHydraulic oil scalePreheat indicatorHydraulic power transmissionLifting jack governor valveLifting and tilting joy stickWhirlwind joy air stickAutomatic engine preheating system
Alternative equipment




Alternative equipmentcabinSpeed indicatorFire extinguisherSolid tyreRear work lightAuxiliary pipingFloated seatSpecify colorsTransmission oil temperature gaugeFan heaterHigh exhaust device


A reliable mast
Emphasis on the inherent quality of the mast has provided operator a reliable security.Wide view mast makes vision more clearly.
We adopted the German mast channel which has the world-class quality.
The cross-section of mast channel has been increased and the structure become more strong.

New type of adjusting mechanism of the steering
The new type steering wheel dual threaded adjustment mechanism with patented technology has improved the operator comfort and adjustment reliability.

New drive and control system
Adopt the international electric actuators and makes the truck steering more stable,and output power stronger.
New electronic blanker improves the comfort and safety of the operation.

Air Inlet System
Air inlet mounted on top of overhead guard pillar, far away from the dust generated from the wheels driving ,and the engine inlet cleaner air improved engine life.

Reliable casting steering axle
Compact structure and the deflection is small under load.
Equipped with damping buffer device enhance driving comfort.
Dustproof and waterproof structure improve its life and reliable.
Later period maintenance cost is low.

The Product SpecificationCHHGCGeneralModel
 HH10HH15HH18Rated capacitykg100015001800Load centermm500Gearbox change speed type
 Hydraulic/MechanicalPower type
 DieselTire typeFront/Rear
 PneumaticWheelsFront/ Rear
 2/2DimensionsrLift heightmm3000Free lift heightmm162Fork sizeL*W*Tmm920x100x40Mast tilt angleFwd/Bwddeg6/12Overall length (without fork)mm218022352270Overall widthmm1080Mast height fork loweredmm1995Overall height fork raisedmm4042Overall height (overhead guard)mm2075Turning radius (outside)mm189019602000Load distance (centerline of front axle to front face of forks)mm429Wheel basemm1400TreadFrontmm890Rearmm920Min. Under-clearance (full load / no load )Bottom of mastmm95/11085/110Bottom of framemm105PerformanceSpeedTravel speedWith loadkm/h13.5Without loadkm/h14.5Lifting speedWith loadmm/sec450Without loadmm/sec510Max. Drawbar pullWith/ without loadkg1250/8501250/8501100/10001650/8501650/8501350/1000Max. GradeabilityWith/without load% (fan)2021WeightSelf weightkg234027402943Weight distributionWith loadFrontkg341037904170Rearkg370450570Without loadFrontkg101610961175Rearkg156416441765TyreTyreSizeFront
 6.50-10-10PRRear
 5.00-8-8PR5.00-8-10PRBrakeBrakeService
 Hydraulic-Foot pedalParking
 Mechanical-Hand leverTransmissionBatteryVoltage / CapacityV/AH12/80Internal combustion engineModel for option
 XINCHANG / ISUZU / DEUTZTransmissionType
 Hydraulic / Mechanicalshift (Fwd/Rvs)
 1/1 (2/2)
 Work pressureMpa17.5

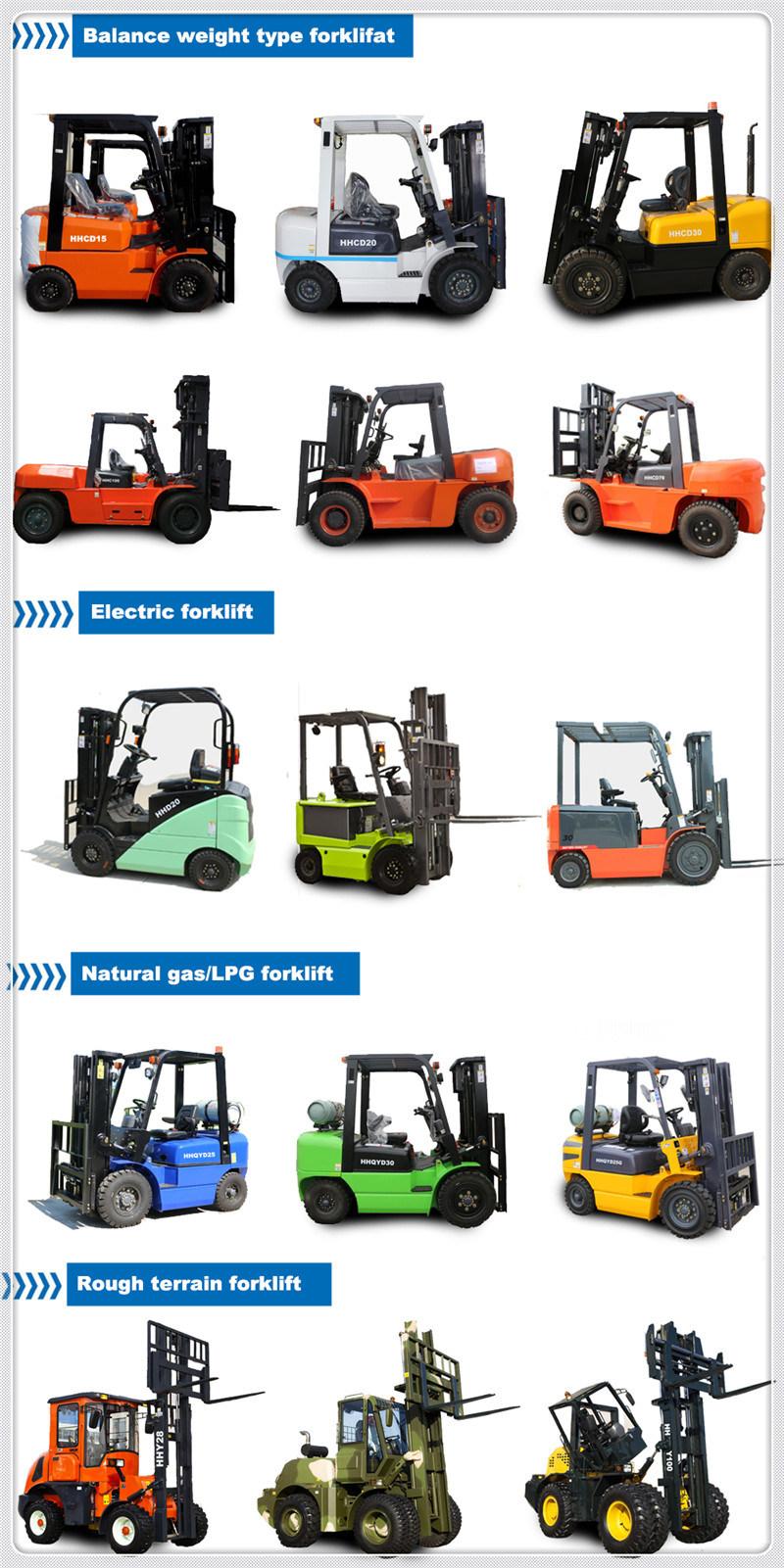

Products series

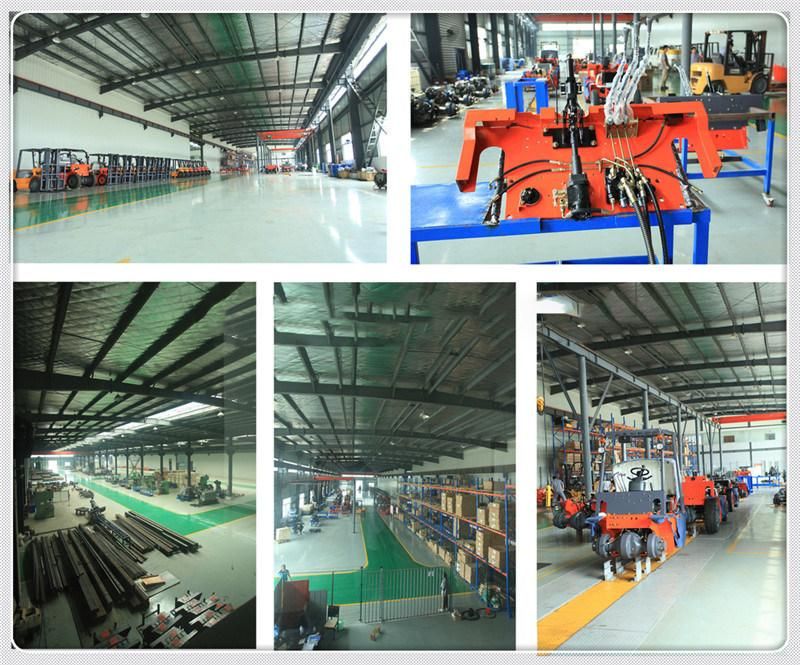

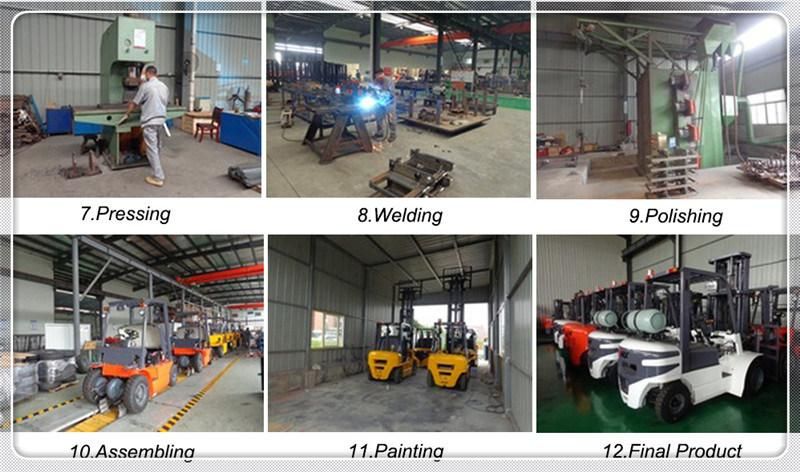

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the forklift?
A:    By container, bulk ship, RORO.

Q2. Do you have different forklift?
A:   Yes,we supply different model forklift and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type forklift do you supply?
A:  We supply all kinds of forklift such as gas, petrol, diesel, electric forklift etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
