• Model NO.：HH35Z
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Free Lift Height：130mm
• Mast Inclination F/R：6,12deg
• Front Overhang：482mm
• Length to Face of Fork：2480mm
• Turning Radius：2320mm
• Min. Right Angle Aisle Width：1910mm
• Lift Speed：480mm,S
• Max. Grade Ability：20%
• Max. Drawbar Pull：14kn
• Self Weight：3720kg
• Certification：CE,ISO9001
• Transport Package：Nude Package, Container
• Specification：3836*1225*2160mm
• Trademark：Cruking
• Origin：China
• HS Code：8428909090
• Production Capacity：300units,Moth

Overview

Product Description

Product Parameters

ModelUNITHH30 (Z)HH30 (Z)HH35 (Z)HH35 (Z)Power type                           DieselRated capacitykg3000300035003500Load centermm500500500500Lift heightmm3000300030003000Free lift heightmm110110110110Fork size(L*W*T)mm1070×125×451070×125×451070×125×451070×125×45Fork outside    spread(Min./Max.)mm255/1100255/1100255/1100255/1100Mast tilt range(F/R)deg6/126/126/126/12Front overhangmm500500500500Overall dimensionsLength to face of forkWithout of forkmm2680268027302730With forkmm2725272527752775Wheel widthmm1210121012101210Mast lowered heightmm2080208020802080Mast extended heightmm4110411041104110Overhead guard heightmm2150215021502150Turning radiusmm2460246025102510Min. right angle aisle    widthmm2105210522002200Travel speed (unload/full    load)km/h20/18.520/18.520/18.520/18.5Lift speed (unload/ full    load)mm/s510/450Max. gradeability%20202020TiresFront 28×9-15-12PR28×9-15-12PR28×9-15-12PR28×9-15-12PRRear 6.50-10-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PRTreadFrontmm1000100010001000Rearmm980980980980Wheelbasemm1700170017001700

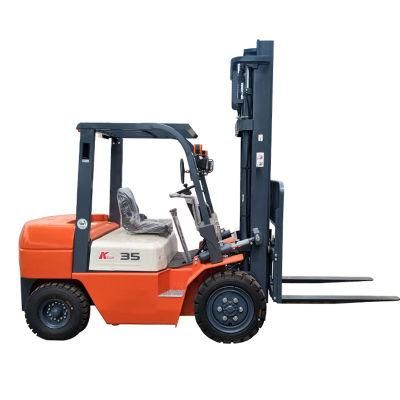

Detailed Photos

Company Profile
