• Model NO.：FB35
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New

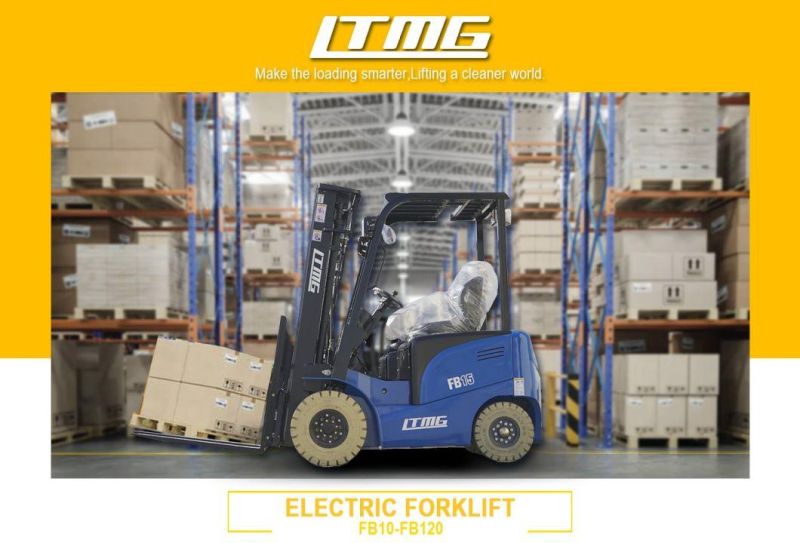

• Item：Four-Wheel Electric Forklift
• Weight：5190kg
• Wheelbase：1600mm
• Overall Length(Without Fork)：2550mm
• Battery：72V-560
• Brand：Ltmg
• Power Unit ：Battery
• Max. Lifting Height：3000mm
• Gradeability ：12.5%
• Transport Package：Container
• Specification：2550mm*1225mm*2190mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. FB35 Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Item Four-Wheel Electric Forklift Weight 5190kg Wheelbase 1600mm Overall Length(Without Fork) 2550mm Battery 72V-560 Brand Ltmg Power Unit  Battery Max. Lifting Height 3000mm Gradeability  12.5% Transport Package Container Specification 2550mm*1225mm*2190mm Trademark LTMG Origin China HS Code 8427109000 Production Capacity 3000sets/Year

Product Description

	FB30	FB35	FB50	FB60	FB80
Rated Capacity	3000kg	3500kg	5000kg	6000kg	8000kg
Load Centre	500mm	500mm	500mm	500mm	600mm
Lift Height	3000mm	3000mm	3000mm	3000mm	3000mm
Fork Size (L×W×T)	1070×125×45	1070×125×50	1070×150×50	1070×150×50	1220×150×70
Length to fork face of fork (Without fork)	2610mm	2615mm	3140mm	3140mm	3780mm
Overall Width	1230mm	1230mm	1600mm	1600mm	2200mm
Overhead Guard Height	2250mm	2250mm	2255mm	2255mm	2500mm
Turning Radius (outside)	2350mm	2350mm	2817mm	2817mm	3350mm
Wheelbase	1700mm	1700mm	2000mm	2000mm	2450mm
Driven Motor	15KW	15KW	11×2KW	11×2KW	14×2KW
Lift  Motor	12KW	12KW	12×2KW	12×2KW	25×2KW
Battery Standard	80/500V/Ah	80/550V/Ah	80/700V/Ah	80/800V/Ah	80/1150V/Ah
Controller Manufacturer	CURTIS AC	CURTIS AC	CURTIS AC	CURTIS AC	CURTIS AC

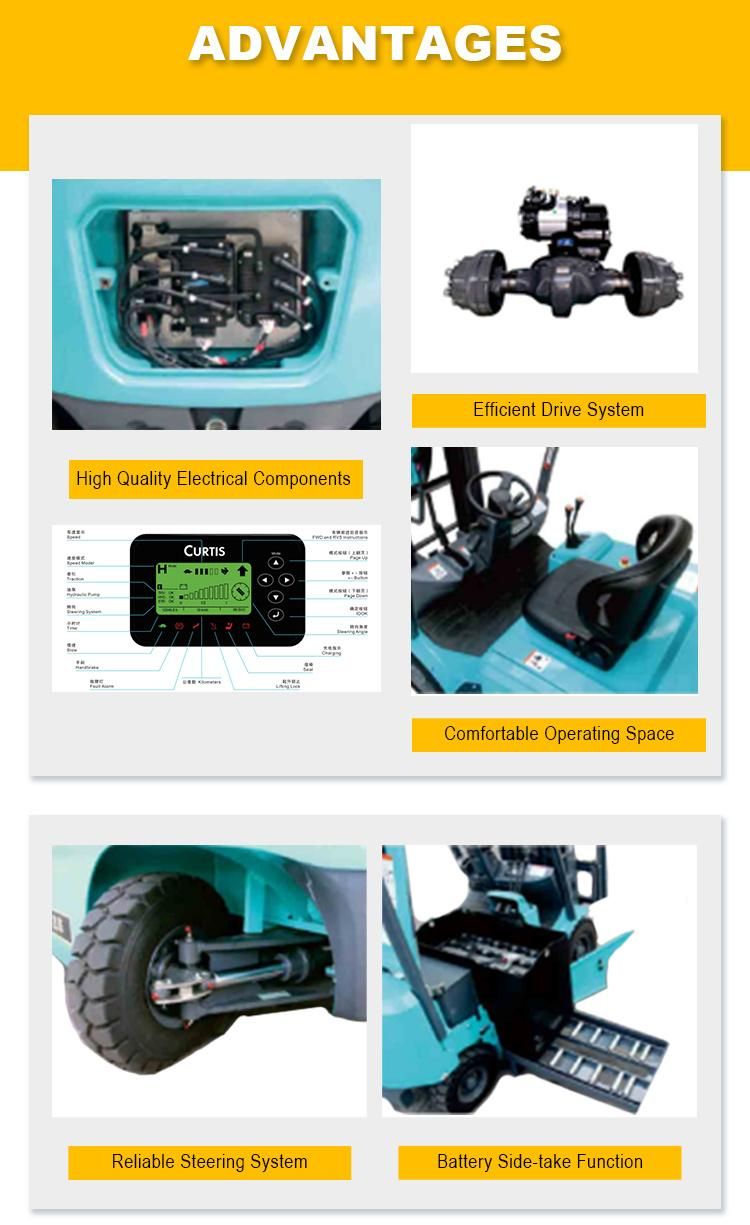

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.



FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
