• Model NO.：FD100
• Lift height：3000~5000mm
• Condition：New
• Engine：Isuzu
• Transmission：Hydraulic
• Truck Weight：12450 Kg
• Tire Type：Pneumatic
• Fork Size：1220*175*75 mm
• Wheel：4,2
• Height to Head Guard：2560 mm
• Tilt Range：6,12 Degree
• Turning Radius：3900 mm
• Mast Height (Fork Lowering)：2850 mm
• Transport Package：Container
• Specification：4255*2245*2850 mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer  LTMGModel Power shift T/MFD100Load capacity kg10000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm205Fork sizeL*W*Tmm1220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4255Total width mm2245Mast height (fork lowering) mm2850Overall height fork raisedWith backrestmm4430Height to head guard mm2560Turning radius(outside) mm3900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5850/3200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Truck weight kg12450Weight  distributionFull load front/rearkg20160/2290No load front/rearkg5480/6970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2800TreadFront/rearmm1600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

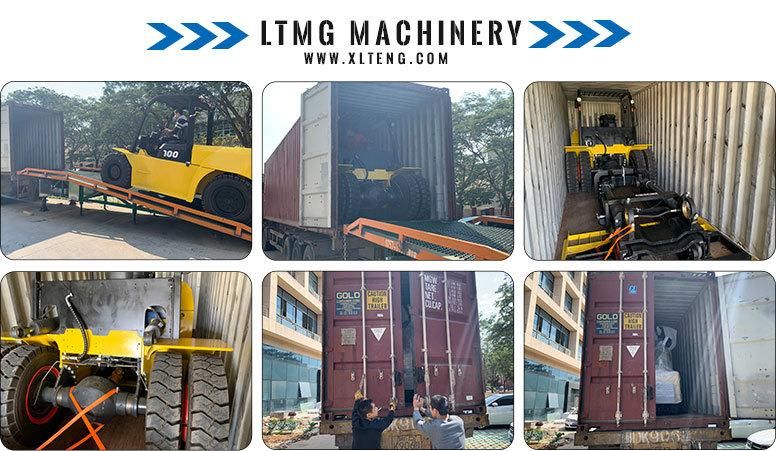

Shipping&packaging

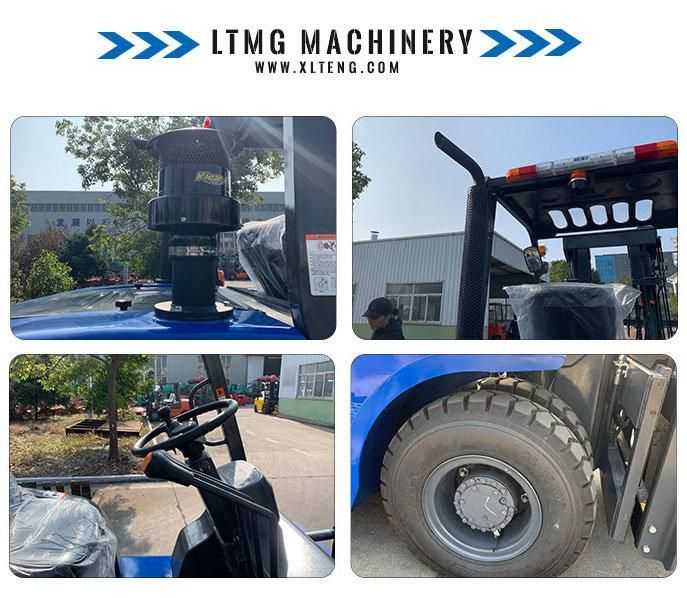

Factory Show



LTMG customer




After sales service
Nowadays we have been sell more than 150 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please check our website and product certificate.
