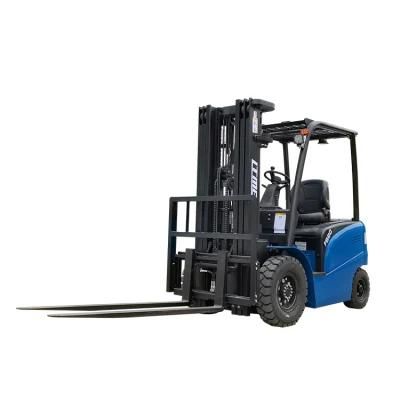

• Model NO.：FB15
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*100mm*35mm
• Weight：2690kg
• Wheelbase：1250mm
• Max.Lifting Height：3000mm
• Overall Length(Without Fork)：1955mm
• Turning Raduis(Outside)：1780mm
• Front Face of Fork to Front Axle：375mm
• Min. Right Angle Stacking Aisle：1770mm
• Transport Package：Container
• Specification：1955mm*1070mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer     LTMGModel    FB15Load capacity  kg1500Load center  mm500Power unit  BatteryOperator type  Driver/seat Tire type  PneumaticWheel(x=driving) Front/rear   2X/2Max. lifting height mm3000Free lift  mm155Fork sizeL*W*Tmm920*100*35Tilt range Mast forward/backward deg6/12Overall length(without fork) mm1955Total width  mm1070Mast height (fork lowering)   mm1995Overall height fork raisedWith backrestmm4030Height to head guard mm2100Turning radius(outside)     mm1780Load distance mm375Min. right angle stacking aisle not add load length&clearancemm2155Speed   Max Travellingfull load km/h14Max TravellingNoload km/h16Liftingfull load mm/s350Liftingnoload  mm/s530Gradeabilityfull load  %15Truck weight(with standard battery) kg2690Weight  distribution  Fullloadfront/rearkg3635/555Noloadfront/rear  kg1110/1580Tires        Number                                                   front/rear   2/2Model                                                    frontaxle 6.00-9-10-10PRrear axle        16*6-8-10PRWheelbase   mm1250Tread   Front/rear        mm910/900Ground clearanceAt lowest point(mast)  mm105Frame      mm95BrakeServicebrake          Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity     V-AH/5hr48V-400Weight with box (standard) kg 735Electric motor AC Driving motorkw8DC Hydraulic driving motor kw8.2AC Hydraulic driving motor (as option) kw8Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145

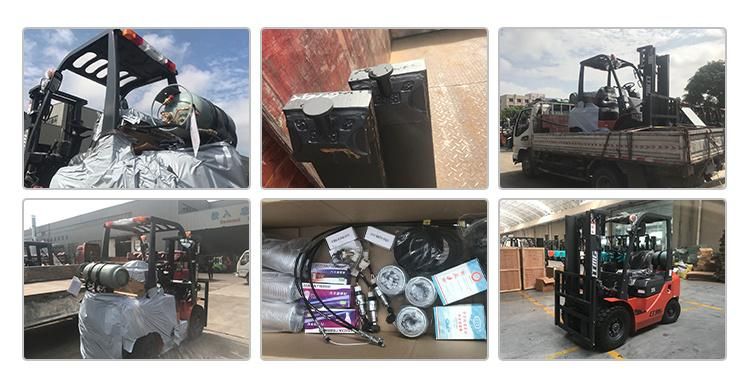

Shipping&Packing
