2-3 Ton Hand Pallet Trucks / Hand Pallet with Best Price

Yuanda Power Machinery Co., Ltd.
  • After-sales Service：12 Month
  • Warranty：12 Month
  • Cab Location：Not Adjustable
  • Type：Manual Pallet Truck
  • Power：No
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：YDHP2000
  • Fuel：No
  • Load center：>500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Transport Package：for Export
  • Specification：customized
  • Trademark：Yuanda Group
  • Origin：China
  • HS Code：8427109000
  • Production Capacity：10000PCS Per Year

Description

KG90/84

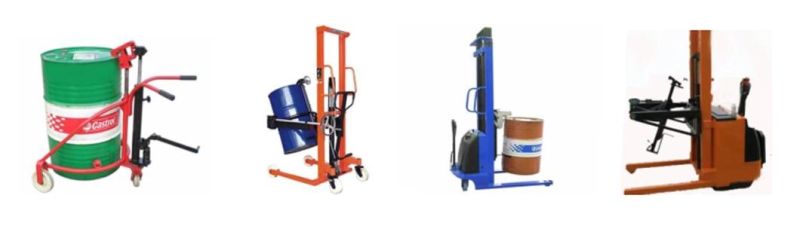

carriers for barrel & oil drum stacker

2-3 Ton Hand Pallet Trucks / Hand Pallet with Best Price
 SizeCapacityKG300(COYA)350(COYB)350(COT)350(COTD)Lifting heightMM10050016001600-3150Lifting speedMM/time 32  Air roll-over angledegree//>180>180Dimension LXWXHMM800X800X11501120X800X12201500X920X22001480X1000X2200Net weightKG4575200320-450

2-3 Ton Hand Pallet Trucks / Hand Pallet with Best Price

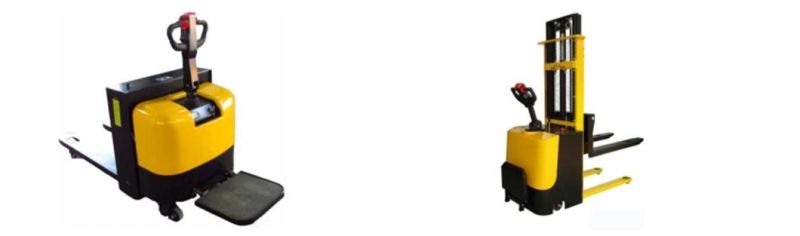

SEMI-ELECTRIC PALLET TRUCK

ItemUnitSize
CapacityKG1000-3000
Max lift heightMM205
Lowered fork heightMM85
Overall lengthMM1800
Overall widthMM680
Standard fork(L/W/H)MM1150X160X50
Fork outside distanceMM520/680
Fork inside sizeMM200/360
Load centreMM600
Turning radiusMM1650
Manipulation Tramp /standing
Type of driver Electromagnetic braking
Controlling type Mos Stepless speed regulation system
Load wheelMMφ80X70
Balance wheelMMφ100X40
Driving wheelMMφ250X80
Driving motorKw0.75/1.2
Travel speed(with/without load)km/h4.5/5.5
Climbing gradient°5
Battery(Voltage/capacity)V/Ah24V/80AH or 24V/160AH
Net weightKG270-410

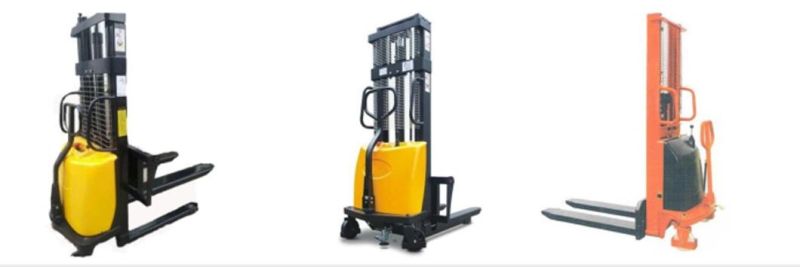

SEMI-ELECTRIC stacker

ItemUnitSize
CapacityKG1000-1500
Load centreMM600
Max load at topKg600-1500
Lift height MM1600-3300
Lowered fork heightMM90
Turning radiusMM1315
Overall lengthMM1725
Overall widthMM830
Standard fork(L/W/H)MM1150X160X70
Fork outside distanceMM680
Fork inside sizeMM330
Lifting speed(with/without load)km/s80/130
Lowering speed (with/without load) 110/90
Type of driver Manual
Load wheelMMφ80X70
Balance wheelMMφ180X50
Driving motorKw1.6
Battery(Voltage/capacity)V/Ah12V/120AH
Net weightKG400-600

2-3 Ton Hand Pallet Trucks / Hand Pallet with Best PriceFULL-ELECTRIC stacker

ItemUnitSize
CapacityKG1500-2000
Load centreMM600
Max load at topKg700-2000
Lift height MM1600-5200
Lowered fork heightMM90
Turning radiusMM1530
Overall lengthMM1785-2535
Overall widthMM850
Standard fork(L/W/H)MM1150X160X70
Fork outside distanceMM680
Fork inside sizeMM330
Type of driver Electromagnetic braking
Controlling type Curtis1207 from America
Load wheelMMφ80X70
Balance wheelMMφ100X40
Lifting speed(with/without load)km/s70/130
Lowering speed (with/without load)km/s110/90
Climbing gradientDeg.°5
Driving motorKw1.2
Battery(Voltage/capacity)V/Ah24V/210AH
Net weightKG7500-1000

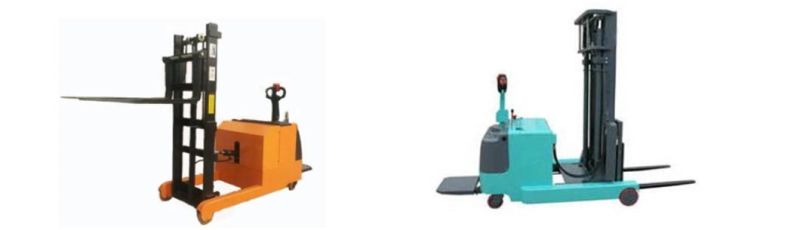

2-3 Ton Hand Pallet Trucks / Hand Pallet with Best PriceREACH stacker

ItemUnitSize
CapacityKG1000-2000
Load centreMM500
Max load at topKg700-2000
Reach distanceMM290-1530
Lift height MM1600-4500
Fork carriage tilt (forward/backward)Deg.2/4
Turning radiusMM1500
Overall lengthMM1845-2205
Overall widthMM1100
Standard fork(L/W/H)MM35/45X100X1070
Wheel baseMM1255
Height of mast , loweredMM1845-2205
Height of mast , extendedMM3945-5500
Type of driver Electromagnetic braking
Controlling type Curtis DC from America
Size of front tireMMΦ210X85
Size of rear tireMMΦ250X80
Balance wheelMMφ156X75
Driving motorKw1.2
Lift motorKw2.2
Battery(Voltage/capacity)V/Ah24V/210AH


2-3 Ton Hand Pallet Trucks / Hand Pallet with Best PriceRIDE ELECTRIC stacker

ItemUnitSize
CapacityKG1000-2000
Load centreMM400/500
Lift height MM1600-3500
Fork carriage tilt (forward/backward)Deg.2/5
Climbing gradientDeg.°5
Turning radiusMM1400/1450
Dimension (L/W/H)MM2350X820X1870 / 2624X900X1873
Fork leight MM800-1000
Fork high from ground MM100-130
Controlling type Mos Stepless speed regulation system
Drive speed with loading Kw/h0-6.5
Lift speed with loadingm/min>4.5
Tire  Rubber or PU
Drive type Steering wheel
Driving motorKw0.75-1.5
Lift motorKw1.5-2.2
Battery(Voltage)V24V
Net weightKG800-1520
2-3 Ton Hand Pallet Trucks / Hand Pallet with Best Price
