Bridge Construction Machinery Walkie Pallet Stacker 500kg Self Loading Forklift
Hangzhou Noelift Equipment Co., Ltd.- Cab Location：Not Adjustable
- Type：Manual Driving, Electrical Lifting
- Power：Manual Driving, Electrical Lifting
- Load Capacity：500 Kg
- Fuel：Manual Driving, Electrical Lifting
- Load center：400mm
Base Info
- Model NO.：cdd05z
- Lift height：800~1300mm
- Condition：New
- Operation：Manual Driving, Electrical Lifting
- Capacity：500kg
- Weight：230~255kg
- Lifting Total Height：1118~1618mm
- Height in Lowered Position：1097~1597mm
- Overall Length：1570mm
- Overall Width：786mm
- Fork Length：1150mm
- Fork Width：155mm
- Material of Wheel：Nylon
- Steering Wheel Size：100*45
- Loading Wheel Size：70*60
- Motor Power Lifting：0.8kw
- Turning Radius：1100~1200mm
- Color：Green,Red,Yellow
- Transport Package：International Packing Way with Thick Plastic Film.
- Specification：1570*786*1097mm
- Trademark：NOELIFT
- Origin：China
- HS Code：84271020
- Production Capacity：500 Pieces,Month
Description
Manual Driving, Electrical Lifting4 Capacity 500Kg 500Kg 500Kg 5 Weight 193Kg 200Kg 219Kg 6 Lift Height 800mm 1000mm 1300mm 7 Height in Lowerd Position 1200mm 1400mm 1600mm 8 Overall length 1600mm 1600mm 1600mm 9 Overall width 786mm 786mm 786mm 10 Fork Length 1250mm 1250mm 1250mm 11 Fork Width 540mm 540mm 540mm 12 Material of Wheels Polyurethane Polyurethane Polyurethane 13 Steering wheel size 100x45 100x45 100x45 14 Loading wheel size 70x60 70x60 70x60 15 Motor Power Lifting 0.7kw 0.7kw 0.7kw 16 Battery 12/45V/Ah 12/45V/Ah 12/45V/Ah 17 Charger Battery inclusive inclusive inclusive 18 Brake Type Mechanical Mechanical Mechanical 19 Lifting speed 80Mm/s 80Mm/s 80Mm/s 20 Descend speed 90Mm/s 90Mm/s 90Mm/s 21 Turning radius 1100Mm 1200Mm 1200Mm
bridge construction machinery walkie pallet stacker 500kg self loading forklift

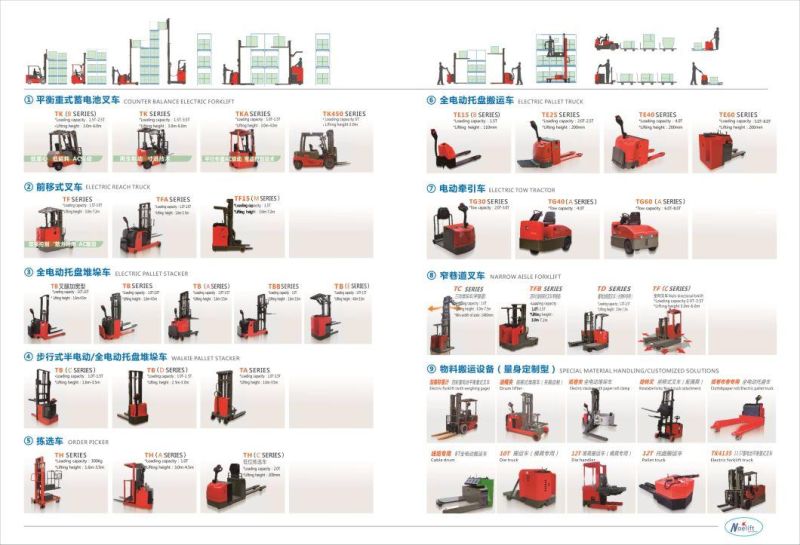

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
