Small Battery Electric Forklift Batterie Pour Chariot Elevateur
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：FB20H
- Lift height：3000~5000mm
- Condition：New
- Product Name：Small Battery Electric Forklift Batterie Pour Char
- Free Lifting Height：145mm
- Fork Size：1070*122*40mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：110mm
- Overhead Guard Height：2150mm
- Front Overhang：470mm
- The Turning Radius：2090mm
- Transport Package：Nude Package
- Specification：2310*1150*2150mm
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：1000 Sets Per Month
Description
SpecificationsUnit FB20 Features Power type battery Rated load kg 2000 Load center mm 500 Lifting height mm 3000 Free lifting height mm 145 Fork size L*W*T mm 1070*122*40 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 13 Max. lifting speed loaded/empty mm/s 280/300 Max. climbing ability % 15 Dimension Overall length without fork mm 2310 Overall width mm 1150 Mast lowered height mm 1990 Mast extended height mm 4030 Chassis Tyre Front 7.00-12-12PR Rear 18X7-8-14PR Wheel base mm 1450 Wheel thread Front/Rear mm 960/950 Weight(without load) kg 3950 Powertrain Battery V/AH 48/630 motor Travelling kw 11 Lifting kw 10/14 Controller Curtis Control type 50%AC/100%AC Working pressure Mpa 17.5

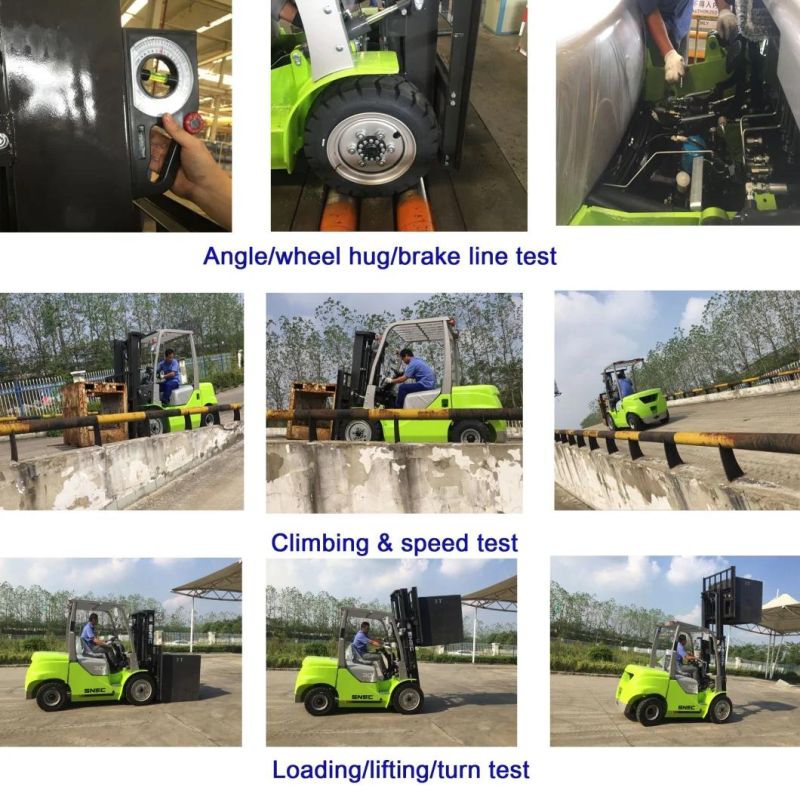

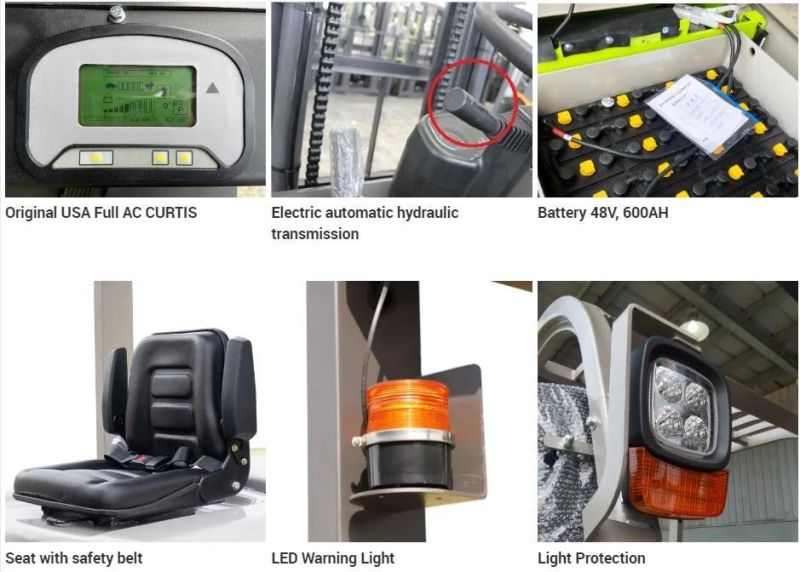

Detailed Pictures of Small Battery Electric Forklift Batterie Pour Chariot Elevateur:

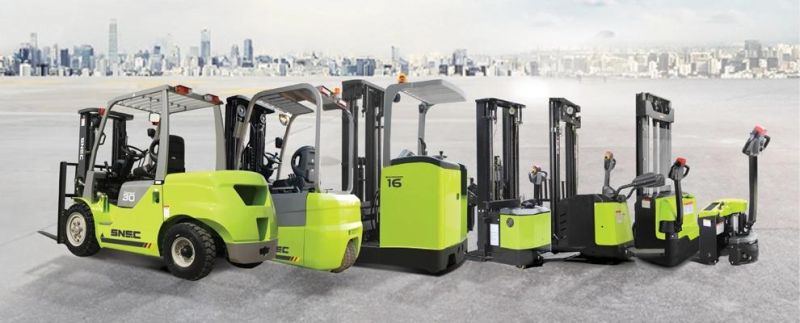

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

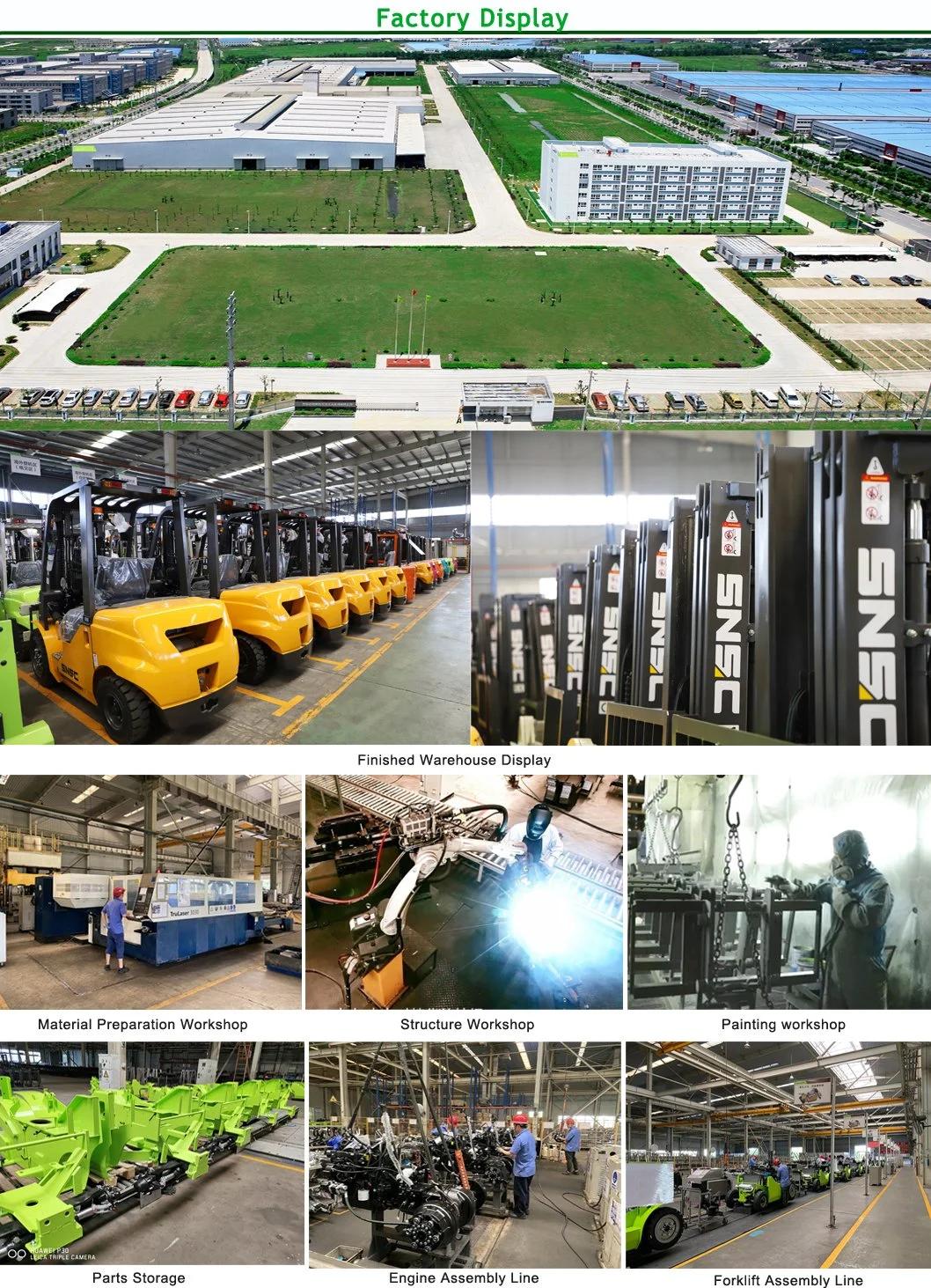

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be customized.
Your satisfaction is our terminal goal, SNSC is worth your trust and beyond your needs.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands. Winni is waiting for you here.
