2t Full Electric Stacker Made in Jeakue
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.- After-sales Service：Provided
- Warranty：Provided
- Cab Location：None
- Type：Stacker
- Power：AC Motor
- Load Capacity：2000kg
Base Info
- Model NO.：ES20
- Fuel：Electric
- Load center：500mm
- Lift height：3000-6000mm
- Condition：New
- Product Name：Electric Pallet Jack
- Loading Capacity：2t
- Model：Es16,20
- Power Souce：Electric
- Operate Type：Walkie
- Load Center Distance：600mm
- Battery：24V,280ah
- Lifting Height：3-6m
- Turning Radius：1589mm
- Brand：Jeakue
- Transport Package：Standard
- Specification：1.6T,2T
- Trademark：Jeakue
- Origin：China
- HS Code：8427102000
- Production Capacity：5000 Set,Year
Description
Overview
Product Description
2. Emergency reverse belly button protects the operator from getting hurt.
3. Emergency dis connector will cut off power source and avoid accident when trucks goes out of control.
4. Multiple lifting limit protection ensures safety.
5. Automatic switch to lower speed when the fork reaches its setting height
6. Anti-rolling back brake keeps the truck from skidding down when truck is out of control or traveling on ramp.
Operation
1. With the new design of ergonomical tiller head, all buttons are controlled conveniently & comfortably.
2. Dual pallets lifting doubles working efficiency.
3. Creep speed function: when handle in near vertical position, the driving speed will decrease aromatically, allowing delicate operation in confined space.
4. Long tiller decreases the operation force greatly and makes operations much easier.
5. Bias Operation, Greater View.
Maintenance
1. AC traction motor, maintenance free.
2. Hour meter and battery indicator remind the operator of battery charging.
3. Easily remove the back cover by only loosing four bolts; Access to all key components for inspection, maintenance and replacement.
4. Easy access for battery maintenance.
5. Vertical motor makes the inspection & service much more convenient.
6. Mast and chassis are assembled together, easy for maintenance.
7. Low voltage cut off setting protects batteries.
Product ParametersWhat's your warranty?
Safety
1. Safe hydraulic system design prevents mast from falling down abruptly when hydraulic pipeline cuts off.2. Emergency reverse belly button protects the operator from getting hurt.
3. Emergency dis connector will cut off power source and avoid accident when trucks goes out of control.
4. Multiple lifting limit protection ensures safety.
5. Automatic switch to lower speed when the fork reaches its setting height
6. Anti-rolling back brake keeps the truck from skidding down when truck is out of control or traveling on ramp.
Operation
1. With the new design of ergonomical tiller head, all buttons are controlled conveniently & comfortably.
2. Dual pallets lifting doubles working efficiency.
3. Creep speed function: when handle in near vertical position, the driving speed will decrease aromatically, allowing delicate operation in confined space.
4. Long tiller decreases the operation force greatly and makes operations much easier.
5. Bias Operation, Greater View.
Maintenance
1. AC traction motor, maintenance free.
2. Hour meter and battery indicator remind the operator of battery charging.
3. Easily remove the back cover by only loosing four bolts; Access to all key components for inspection, maintenance and replacement.
4. Easy access for battery maintenance.
5. Vertical motor makes the inspection & service much more convenient.
6. Mast and chassis are assembled together, easy for maintenance.
7. Low voltage cut off setting protects batteries.

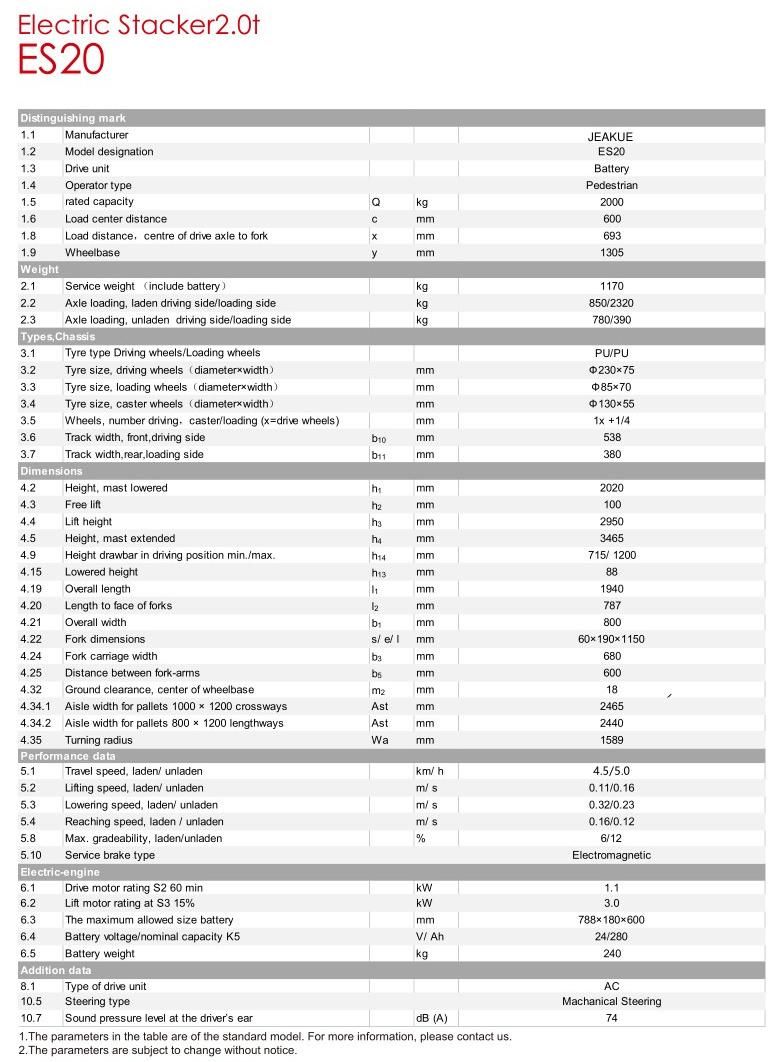

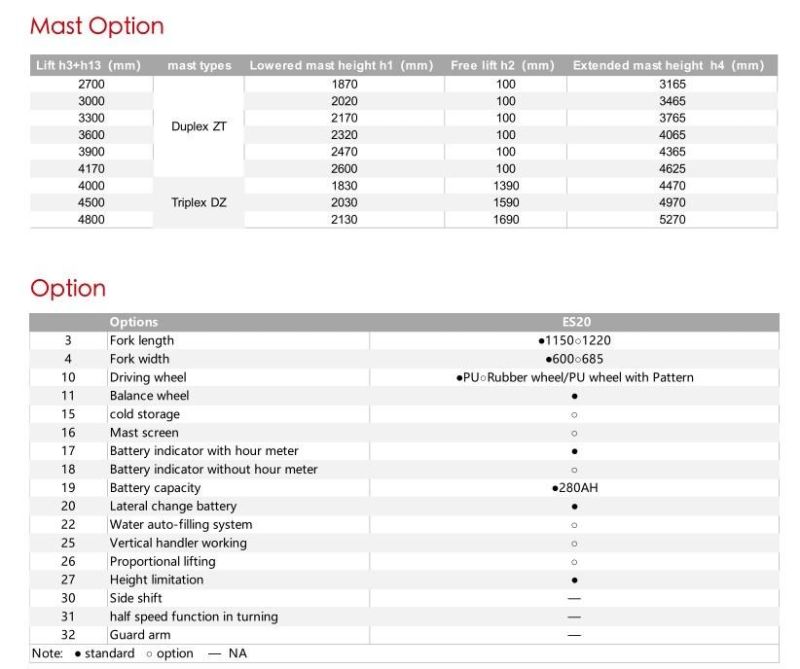

Product Parameters
