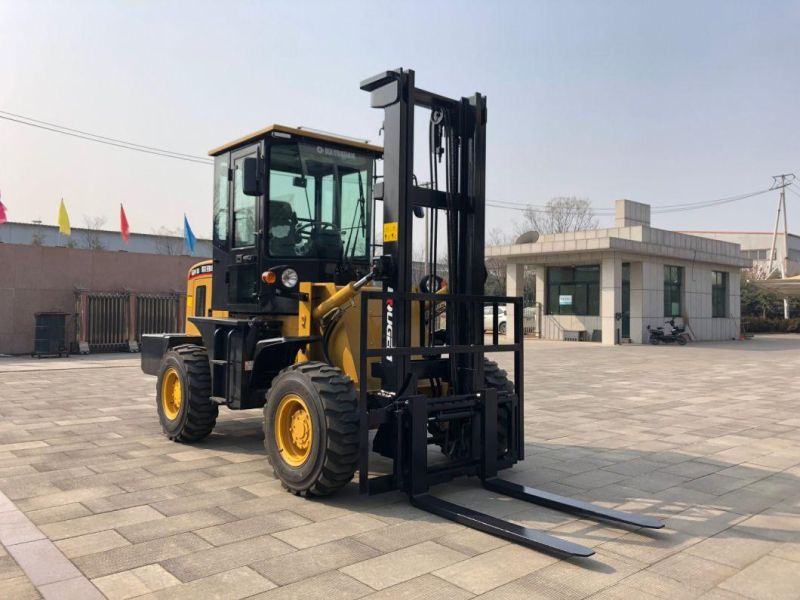

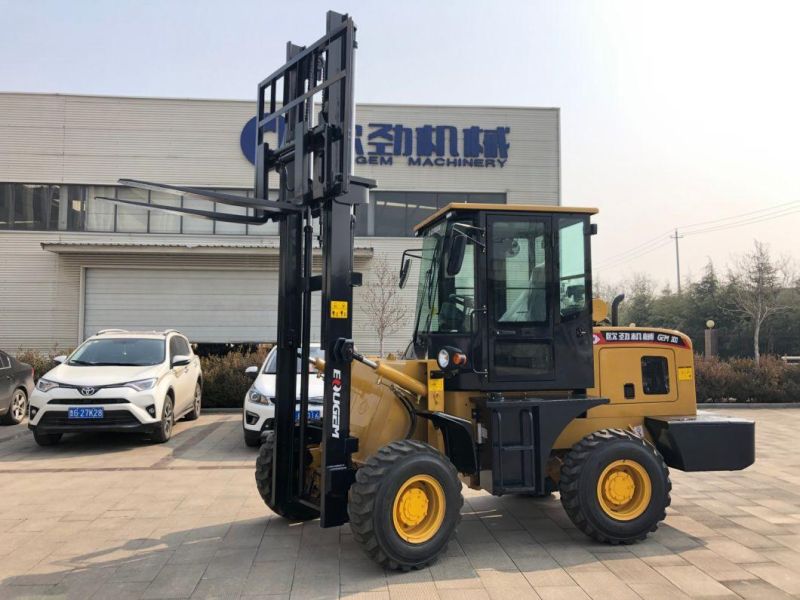

3 Ton New Type Rough Terrain Forklift with 42kw Engine for Sale
Shandong Oujin Engineering Machinery Co., Ltd.- Cab Location：Adjustable
- Type：Side Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：unfl30
- Lift height：3000~5000mm
- Condition：New
- Model：Cpcy35
- Lift：3500~4500mm
- Weight：4700kg
- Ground Clearance：206mm
- Height of The Mast：2495mm
- Tire：12-16.5
- Mast：Triple or Double
- Side Shifter：Fork
- Fork Lengthen：1220~1600mm
- Rated Loading Weight：3500mm
- Transport Package：Nude
- Specification：3500*1720*2100mm
- Trademark：eougem
- Origin：China
- HS Code：8427209000
- Production Capacity：3000
Description
ModelForklift CPCY30with CE)
Engine Model yunnei YN27 Rated output(kw) 42KW Type In line,vertical,water cooled,four-stroke Number of cylinders 4 Cylinder bore 98 Cylinder sroke 105 Rated speed(r/min) 2200 Method of starting Electric Total displacement (L) 3.168 Rated load(kg) 3500 Load center distance(mm) 565 Lift height(mm) 4000 The freedom lifts the altitude(mm) 150 Max lifts the speed(full load)(mm/s) 372 Gate inclination angle (F/R)(°) 6/12 Moving velocity (idling)(km/h) 19 Max climbing power(%) 20 Overal dimensions(L*W*H)(mm) No fork(mm)3500
With fork(mm) 4650 Width (mm) 1700 Height(mm) 2100 Dead weight(kg) 4700 Min ground clearance(mm) 206 Wheel distance(mm) 1320 Axle-base(mm) 2040 Forks the tooth size(L)(mm) 1600
1) Hard Mn alloy steel Q345B was used for 80% chassis. Triplex stage mast with side shifter, With forklifting first. Then Mast lifting later
2)3000kg Max loading capacity with 3m lifting height,1.6m pallet fork
3)Chinese famous brand YUNNEI 42kw engine
4)Automatic transmission control
5)Central articulated frame and load sensing hydraulic steering
6)Four wheel drive, Oscillating gear axles
7)Four wheel hydraulic spread-shoe brake
8)Famous brand Camel battery with Big AH
9) tires
10) warm Cabin with luxury seat, Adjustable steering wheel, Heater
one 20 inch container can load 1 unit
one 40 inch container can load 3 units
if you need,pls contact me
1.Different parts of the corresponding international plate, the vehicle parts do a tough steel is not easy to deform. Structural parts derusting surface adopts the advanced blast cleaning equipment, cleaning effect is obvious, the component will never rust
2. Vehicle sheet metal parts using the international advanced 1.5-2.75 cold rolled plate production, the surface is smooth, not deformation.Sheet metal primer using electrophoretic method of paint, so that parts will never rust
3.Use of copper composite, strong wear resistance. The pin shaft grinder using high frequency quenching processing, convenient installation, strong wear resistance
4.By sheet metal forming, the driving cab hood has the features of high transparency, anticorrosion and the color won't wear out; with the international ultraviolet-proof all-steel cab of forming glass adopted, the driving cab is equipped with humanized adjustable seat, scuttle, making your vision broader and your driving safer; all those make the operation easy, natural and accurate, and relieve your fatigue as well.
