• Model NO.：FD80
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1220X175X75mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：4040x2165x2695mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

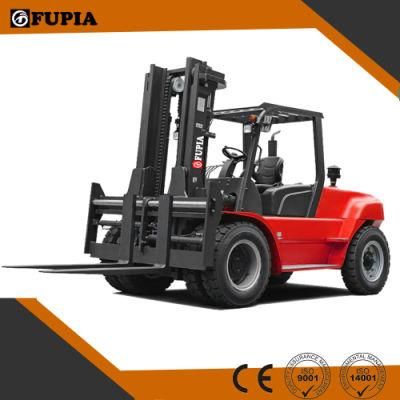

FUPIA 8-10Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

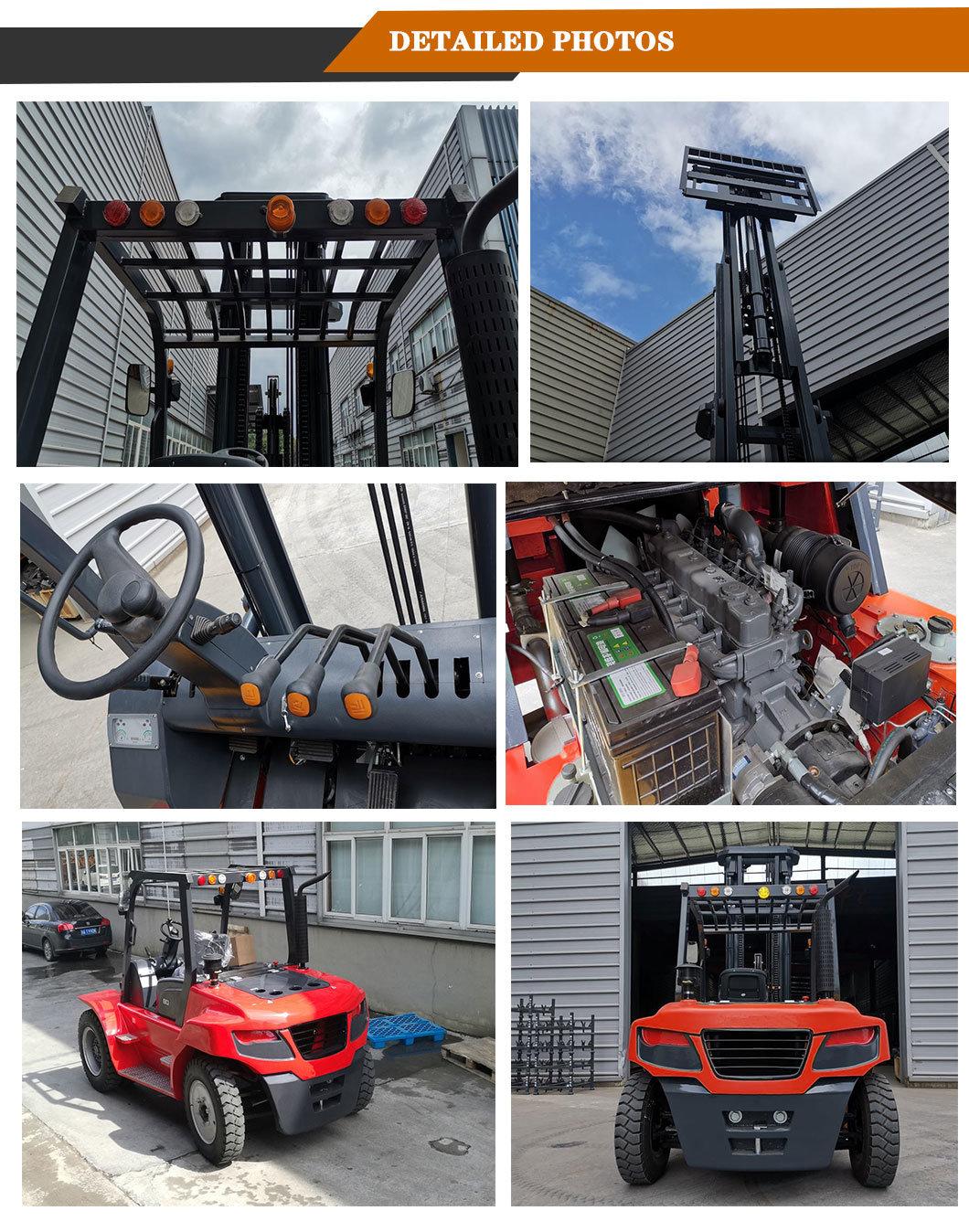

Detailed Photos

Product ParametersGeneral 1Manufacturer FUPIA2Model FD80T-HFD90T-HFD100T-HFD80T-JFFD90T-JFFD100T-JF3Power Type  Diesel4Rated Load CapacityQ(kg)800090001000080009000100005Load CentreC(mm)600Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1208Fork Size (L×W×T)mm1220×175×751220×175×801220×175×751220×175×809Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)72111Rear OverhangX2(mm)76012Ground Clearance (Bottom of Mast)H7(mm)25013Length to Face of Fork (Without Fork)L1(mm)404042704040427014Overall WidthB1(mm)216515Mast Lowered HeightH1(mm)269528452695284516Mast Extended Height (With Backrest)H4(mm)402042604020426017Side Shift X(mm)340-2000440-2140340-2000440-214018Overhead Guard HeightH5(mm)252025402520254019Turning Radius (Outside)Wa(mm)370039003700390020Min.Aisle width for pallets Ast(mm)5845604558456045Performance21Travel Speed (No Load)km/h2022Lifting Speed (Full Load)mm/sec38031038031023Lowering Speed  (Full Load)mm/sec48050048050024Max.Drawbar Pull (Full Load)KN5857585725Max.Gradeability (Full Load)%≤20Chassis26Tyre (Front x 4) 8.25-20-14PR9.00-20-14PR8.25-20-14PR9.00-20-14PR27Tyre (Rear x 2) 8.25-20-14PR9.00-20-14PR8.25-20-14PR9.00-20-14PR28Front TreadB2(mm)160029Rear TreadB3(mm)170030WheelbaseY(mm)2500280025002800Weight31Total Weightkg11850122001290011850122001290032Front Axle Weight Distribution (Full Load)kg17800199802061017800199802061033Rear Axle Weight Distribution (Full Load)kg20502220229020502220229034Front Axle Weight Distribution (No Load)kg47405380566047405380566035Rear Axle Weight Distribution (No Load)kg711068208240711068208240Power & Transmission36BatteryV/Ah24/9037Engine Model 6102BG6A-6BG1QC38Engine Manufacturer CHAOCHAIISUZU39Rated Output / r.p.m.kw80.9/250082/200040Rated Torque / r.p.m.N·m353/1650416/1400-160041No.of Cylinder 642Bore x Strokemm102×118105×12543DisplacementL5.7856.49444Fuel Tank CapacityL14045Transmission Type Powershift46Transmission Stage (FWD/RVS) 2/247Operating Pressure (For Attachments) Mpa17Certifications

Packaging & Shipping

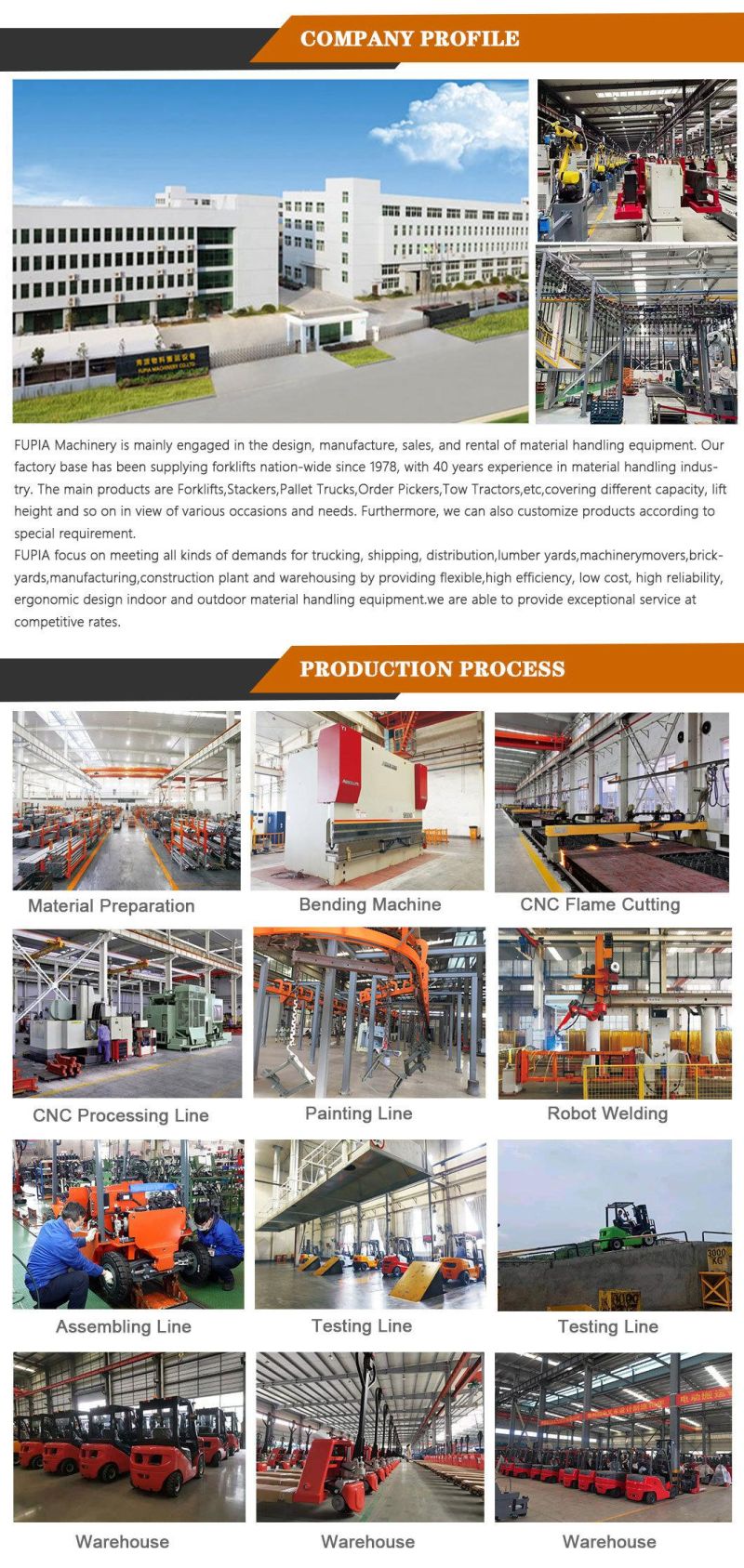

Company Profile
