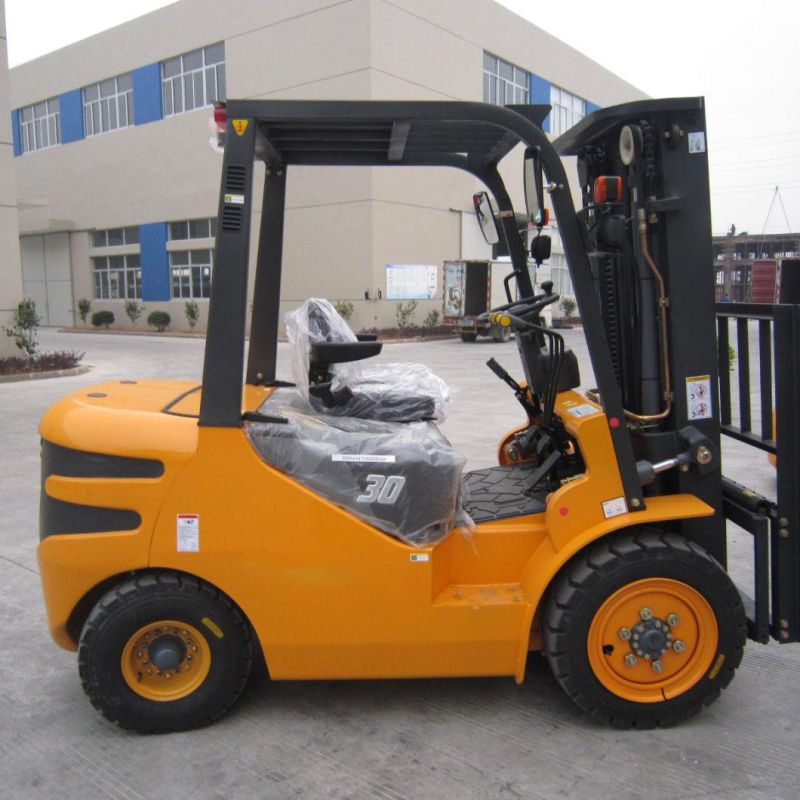

• Model NO.：HH30Z
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Power Type：Diesel
• Rated Capacity：2000kg
• Max.Lifting Height：3000mm
• Free Lift Height：130mm
• Mast Inclination F/R：6,12deg
• Front Overhang：482mm
• Length to Face of Fork：2480mm
• Turning Radius：2320mm
• Min. Right Angle Aisle Width：1910mm
• Lift Speed：480mm,S
• Max. Grade Ability：20%
• Max. Drawbar Pull：14kn
• Self Weight：3720kg
• Battery：12,90V,Ah
• Shift Fwd/Rwd：1,1 Power Shift
• Transport Package：Nude Packing
• Specification：2680*1225*2120MM
• Trademark：forklift
• Origin：Jiangsu, China
• HS Code：8427209000
• Production Capacity：1000 Unit,Units Per Month

Our CompanyProduct ParamentersSpecification1Model HH30Z-N2-D2Rated capacitykg30003Load centermm5004Lift heightmm30005Fork sizeL×W×Tmm1070×125×456Mast inclinationfront/back(α°/β°)Deg6/12Size7Overall DimensionLength(to fork face)mm26808Overall Widthmm12259Mast lowered heightmm209510Height When Mast Liftingmm418011Safeguard Heightmm212012Turning Radius minmm246013Front Overhangmm49014Treadfront/backmm1000/97015Ground Clearance min(no load/full load) mast/framemm152/132158/13816Wheelbasemm170017Fork Spreadmin/maxmm300/1200Performance18SpeedTravel (Laden)km/h20/18.519Lifting (Laden)mm/s48020Grade abilityLaden%2021Service Weight(include battery )kg440022TireFront 28×9-15-12PR23rear 6.50-10-10PRDiesel Engine24XINCHAI 490BPGRated OutputKw/rpm37/265025Rated TorqueN.m/rpm148/180026Displacementcc254027No.of Cylinder 428Bore*Strokemm90*10029Operating Pressure for AttachmentMpa17.5

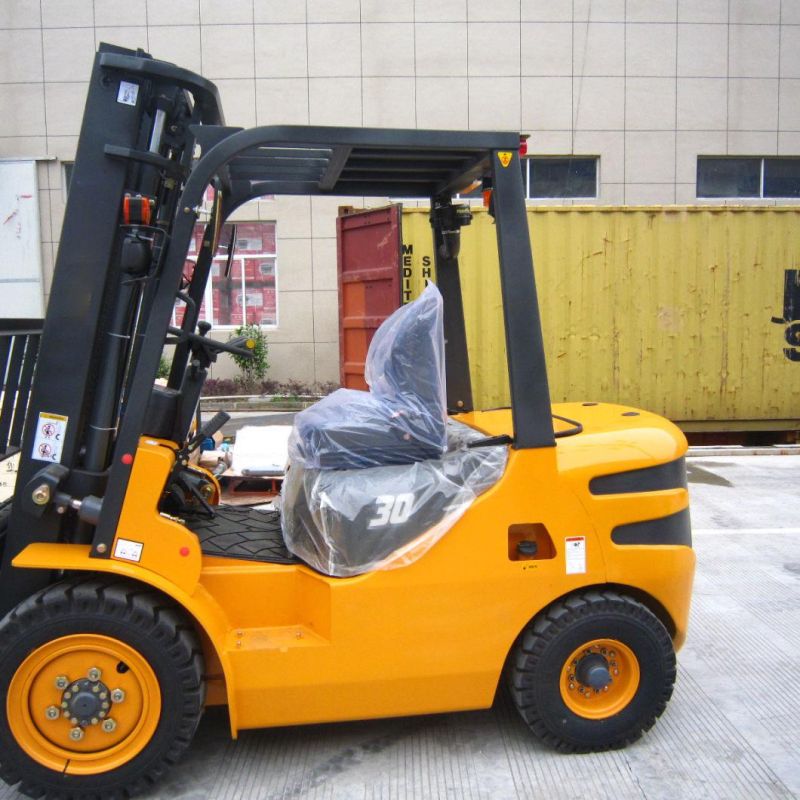

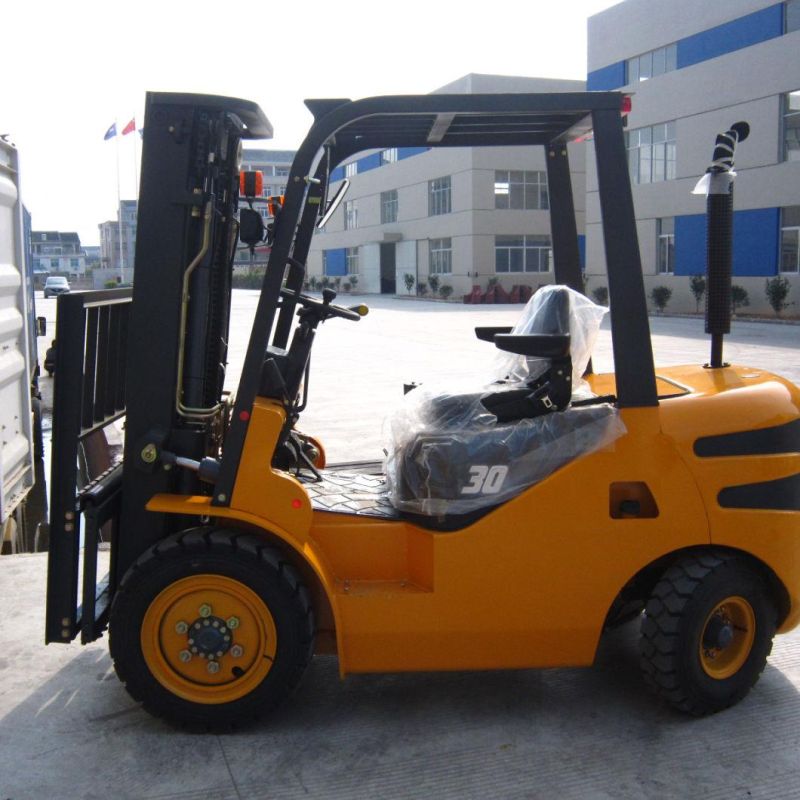

Product Configuration


Company Information
