• Model NO.：FD40
• Lift height：>5000mm
• Condition：New
• Engine：Japan Isuzu Engine or Xc498
• Transmission：Automatic Transmission
• Hydraulic System：Japan Shimadzu Hydraulic System
• Seat：Lusury Suspension Seat
• Light：All LED Light
• Color：Yellow, Green, Red
• Gear：USA Eaton Steering Gear
• Mast：3000mm-7000mm Lifting Height Mast
• Tire：Air Tire and Full Rubber Tire
• Mirror：Wider Back Mirror
• Transport Package：Container Package
• Specification：4000kg load capacity
• Trademark：SNSC
• Origin：China
• HS Code：84272090
• Production Capacity：8000set,Year

SpecificationsUnitFD401CharacteristicsPower-diesel2Rated Capacitykg40003Center of loadmm5004Lifting heightmm30005Free lifting heightmm851466Forks L×W×Hmm1070x125x501070×150×507Tilt Forward/Backward.6/128Min.turning radiusmm270027609Min.ground clearance(Mast)mm12016010Overhead guard heightmm2090235011Height from seat to overhead guardmm1005104012Front overhangmm50055813PerformanceMax.traveling speed(loaded)km/h19.51814Max.lifting speed(loaded/empty)mm/s415/440380/40015Drawback pull/Grade abilitykN/%20/2022/2016DimensionsOverall length (without fork)mm2930306017Overall widthmm1410149018Mast lowered heightmm2155235519Mast extended heightmm4275425720ChassisTireFront-250-15-160PR8.25-15-14PR21Rear-6.50-10-10PR7.00-12-12PR22Wheelbasemm1900200023Tread widthFront/Rearmm1160/10651180/119024Curb weightNone-loadkg5300609025PowertrainBatteryVoltage/CapacityV/Ah12/90(12/90)×226EngineModel-XC498BPGQC 4JR327Rated powerkw/r.p.m45/250048/230028Rated torqueNm/r.p.m193/1600-1800230/1600-180029Cylinder amount-4430Bore×Strokemm98x10598x11531Displacement-3.1683.4732Fuel tankL8010033Transmission1/1 automatic transmission34Working pressureMPa17.518.5


Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).



Company Introduction:

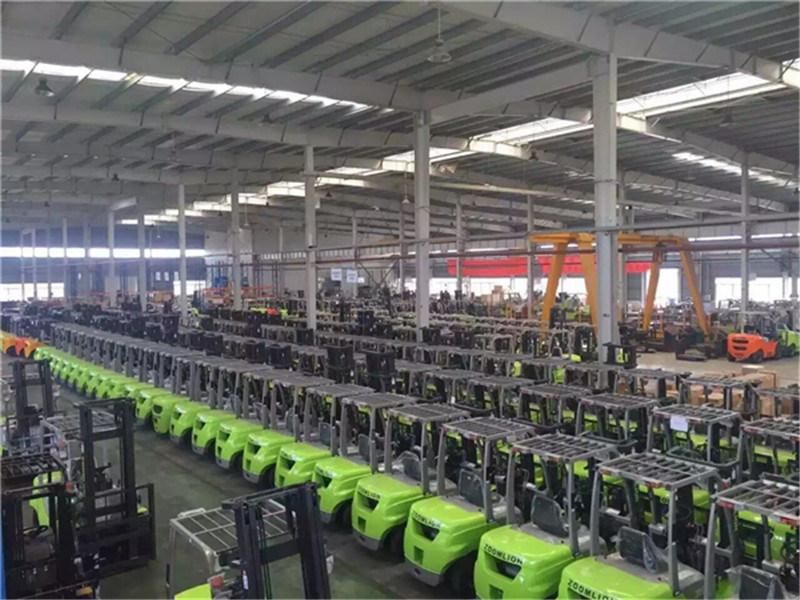

We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
