• Model NO.：T25Y-4WD
• Load Capacity：1T - 5T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070*125*40mm
• Battery：12V,90ah
• Engine Manufacturer：Yanmar
• Transport Package：Standard Export Packing
• Trademark：Royal
• Origin：China
• HS Code：84272090
• Production Capacity：10000PCS,Year

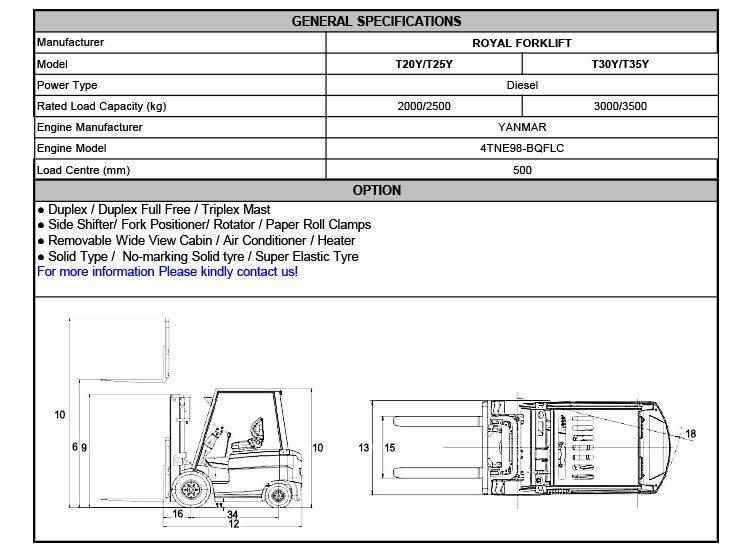

Manufacturer RY MODEL T25YGeneral Power Type DIESELengine YANMARRated Load Capacitykg2500Load Centremm500Characteristic & DimensionRated Lift Heightmm3000Free Lift Heightmm150Mast Tilt Angle (F/R, α°/β°)Deg10º/12ºMast Lowered Heightmm1980Mast Extended Height (With Backrest)mm4015Overhead Guard Heightmm1980Ground Clearance (Bottom of Mast)mm220Length to Face of Fork (Without Fork)mm2997Overall Widthmm1600Fork Size (L×W×T)mm1220X125X50Fork Overhang (Wheel Center to Fork Face)mm606Rear Overhangmm540Turning Radius (Outside)mm2785Min.Right Angle Stacking Aisle Width
(Add Load Length and Clearance)mm4805PerformanceTravel Speed (No Load)km/h22Travel Speed (Full Load)km/h22Lifting Speed (Full Load)mm/s450Lowering Speed  (Full Load)mm/s500Max.Drawbar Pull (Full Load)KN17Max.Gradeability (Full Load)%16Service Brake (Operation/Control) Foot/PowershiftParking Brake (Operation/Control) Hand/MechanicalChassisTyre (Front x 2) 14-17.5-14PRTyre (Rear x 2) 27x10-12-12PRFront Treadmm1250.5Rear Treadmm1205Wheelbasemm1880
