• Model NO.：FB20R
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Name：Four Wheels 2.0 Ton 2000kg Electric Forklift
• Center Distance：500 mm
• Axle Unloading,Laden Front/Rear：4815,685mm
• Axle Loading,Laden Front/Rear：1635,1865mm
• Tyre Size,Front：6.50-10
• Height of Mast,Lowered：3000--6000mm
• Height,Mast Lowered：2015-2610mm
• Height,Mast Extended：4050-7050mm
• Seat Height/Stand Height：1040mm
• Fork Dimension：40,120,1070mm
• Overall Width of Fork：1130 mm
• Turning Radius：2080mm
• Lifting Speed,Laden/Unladen：0.28,0.32m,S
• Battery Voltage/Rated Capacity：48,500(560)Ah
• Service Weight(with Battery)：3500kg
• Transport Package：Seaworth Packing
• Specification：3270 mm*1130 mm*2110 mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

Main Configuration1.) 48V FULL AC Power2.) JIACHENG controller3.) Pneumatic tyres 4.) 1070mm Forged fork5.) Multiple vavle control6.) 48V 450Ah lead-acid battery7.) 48V65A charger8.) Lifting type battery9.) With front LED light,signal light.rear light,safety belt,view mirror,reversing buzzer.OptionsSide way shift--3000mm lifting heightSide way shift--4000mm lifting heightSide way shift--4500mm lifting heightSide way shift--5000mm lifting heightSide way shift--6000mm lifting heightSolid TyreEnvironment-friendly solid tyreThe fork is lengthened by 100mm eachStrobe lightSide-way battery boxMultiple valve configuration for each additional one spoolJoy stick arm rest integrated control (3 spools)          Joy stick arm rest integrated control (4 spools)INMOTION controller(48450/35P+350/23P)CURTIS controller(1232SE*2)48V500Ah Lead-acid battery
48V65A charger48V560Ah Lead-acid battery
48V80A charger48V250Ah Lithium battery
48V50A charger48V300Ah Lithium battery
48V100A charger48V350Ah Lithium battery
48V100A charger48V400Ah Lithium battery

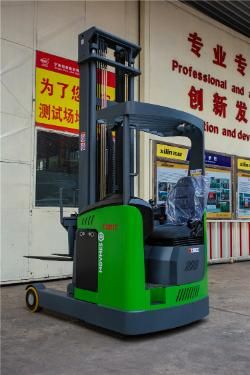

48V150A chargerParameterCQD15 Narrow Aisle Mast fork reach truck
1.5ton with 5000-8000mm lifting height,
CURTIS controller,48V400AH LEAD-ACID BATTERYCPD15S-E,3 wheel electric forklift
1.5ton with 2500-5600mm lifting height ,
24V AC power,INMOTION controller,24V320Ah lead-acid battery CPD20SA-16/18/20
1.6/1.8/2.0 ton with 3000-6200mm lifting height.
48V AC power,INMOTION controller,48V450AH LEAD-ACID BATTERY .48V50A CHARGER

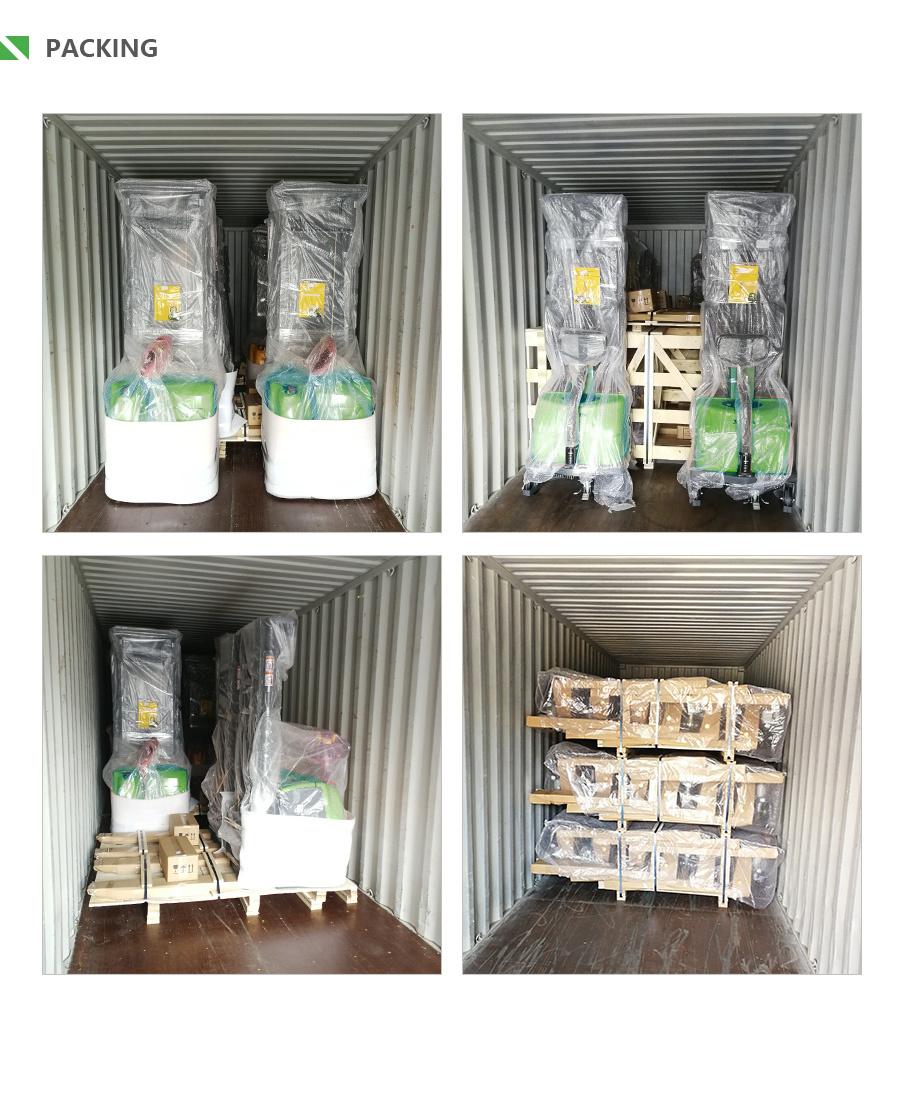

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

High praise from customer
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

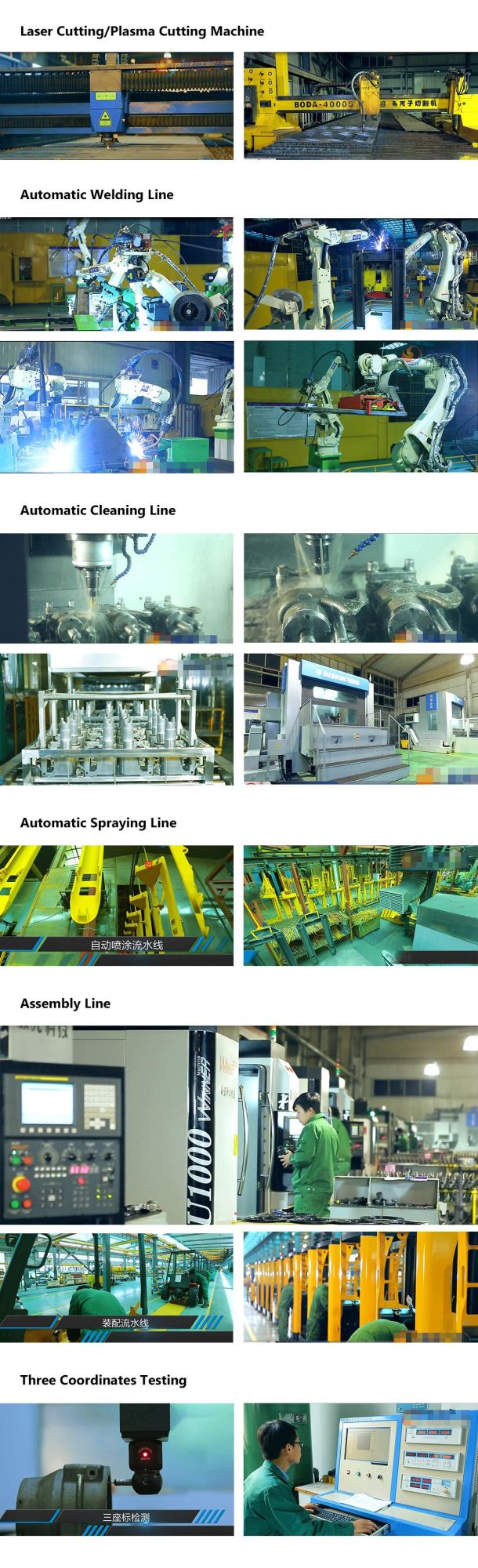

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CQDH18C?

A2: Our chargers 36V700AH Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
