• Model NO.：FD50
• Lift height：3000~5000mm
• Condition：New
• Service Weight：8250kg
• Fork Size：1220mm*150mm*60mm
• Engine：Isuzu or Other Famous Brands
• Wheelbase：2250mm
• Max.Lifting Height：3000mm
• Tires：Pneumatic Tires , Solid Tires
• Transmission：Hydraulic
• Color：Decided by Buyer
• Transport Package：Container
• Specification：3440*2010*2500mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer                           LTMGModel                              FD50Load capacity                         kg5000Load center                            mm600Power unit                                Diesel   Operator type                          Driver/seat Tire type                             Pnenumatic  Wheel                                    Front/rear 4/2Max. lifting height mm3000Free lift                              mm205Fork size                            L*W*Tmm1220*150*60Tilt range                                Mast forward/backward          deg6/12Overall length(without fork)     mm3440Total width                              mm2010Mast height (fork lowering)   mm2500Overall height fork raised    With backrest                           mm4415Height to head guard               mm2430Turning raduis(outside)           mm3250Front face of fork to front axle mm615Min. right angle stacking aislepallet size :1100×1100 add clearence                     mm5500Speed  Max Travelling  full/no loadkm/h26/30Lifting  full/no load    mm/s500/550Lowering  full/no load   mm/s450/500Max.drawbar pull                   full/no load  kg5500/2250Gradeability at 1.6km/h         full load %37Max. Gradeability  full/no load  %42/19Truck weight               kg8050Weight  distribution            Full  load  front/rear     kg11710/1340No  load  front/rear   kg4020/4030Tires                                       Number front/rear4/2Model front axle8.25x15-14PRrear axle 8.25x15-14PRWheelbase                               mm2250Tread Front/rearmm1470/1700Ground clearence           At lowest point(mast)            mm190Frame mm230Brake                                            Service  brake power brakeParking brake  Mechanical-hand lever                              Battery                                          Voltage/capacityV/AH2x12V-80AHEngine                                          Model  ISUZU 6BG1Rated power kw/rpm82.3/2000Rated torque N-m/rpm418/1500Number of cylinders  6Displacement L6.494Fuel tank capacity L140Transmission                              shift stage(front/rear-type) 2-2 automatic                                       Operating pressure                    Hydraulic system pressure     kg/cm²200
Product Features
1. Advanced Hydraulic Automatic Transmission.
2. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
3. Electric-hydraulic Directional Control Valve.
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Seat Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
9.Middle muffler, more environmental.

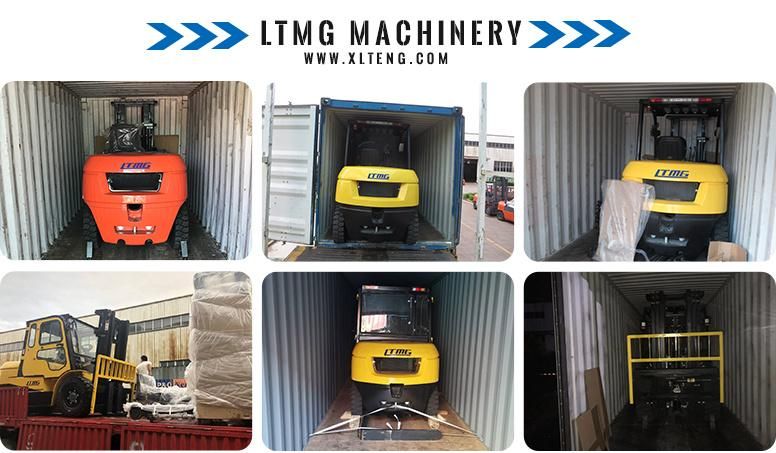

Packing & Shipping




Exhibitions and clients





After sales service



LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
