3.5tons Lonking Diesel Forklift Fd35t and Spare Parts
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:Oversea
- Warranty:1 Year
- Cab Location:Adjustable
- Type:Diesel Forklift
- Power:Diesel Engine
- Load Capacity:1T - 5T
Base Info
- Model NO.:FD35(T)
- Fuel:Diesel
- Load center:500mm
- Lift height:3000~5000mm
- Condition:New
- Rated Capacity:3500kg
- Lifting Height:3000mm
- Free Lifting Height:170mm
- Mast Tilt Angle:6,12deg
- Min. Turning Radius:2490mm
- Min Intersecting Aisle:4200mm
- Max Travel Speed(Load/Unload):18.5,20km,H
- Gradeablity(Load/Unload):20%
- Self Weight:4650kg
- Axle Distance:1700mm
- Rated Power:36.8,2600kw,Rpm
- Transport Package:Container
- Specification:2930*1800*2452mm
- Trademark:Lonking
- Origin:China
- HS Code:8427209000
- Production Capacity:1000
Description
Overview
Product DescriptionUnit FD20(T) FD25(T) FD30(T) FD35(T) CPC(D)20 CPC(D)25 CPC(D)30 CPC(D)35 Power type / diesel diesel diesel diesel Rated capacity kg 2000 2500 3000 3500 J Load center mm 500 500 500 500 H1 STD lifting height mm 3000 3000 3000 3000 H3 freee lifting height mm 150 150 165 170 L5×W×T forke size mm 1070×120×40 1070×120×40 1070×125×45 1070×125×50 Mast tilt angle deg Forward 6/Rear12 Forward 6/Rear12 Forward 6/Rear12 Forward 6/Rear12 L3 Front overhang mm 460 460 479 498 L4 Rear overhang mm 410 470 522 580 Dimension L1 Overall length(with fork) mm 3590 3650 3770 3830 W1 Overall width mm 1160 1160 1225 1225 h2 STD mast lower height mm 2000 2000 2075 2180 h4 OverHead guard height mm 2110 2110 2130 2130 the height of Load-backrest mm 975 975 1280 1280 R1 Min. turning radius mm 2250 2300 2460 2490 Ra Min intersecting aisle mm 3900 3970 4155 4200 Max travel speed(load/unload) Km/h 18/20 18/20 18.5/20 18.5/20 Max lifting speed(load/unload) mm/s 550/530 550/530 505/485 400/380 Gradeablity(load/unload) % 20 20 20 20 Self weight kg 3400 3800 4220 4650 tyre front tires / 7.00-12-12PR 7.00-12-12PR 28×9-15-14PR 28×9-15-14PR Rear tires / 6.00-9-10PR 6.00-9-10PR 6.5-10-10PR 6.5-10-10PR Tread S front tires mm 970 970 1000 1000 P Rar tires mm 980 980 980 980 L2 axle distance mm 1650 1650 1700 1700 Min.ground clearance m2 Mast mm 110 110 130 130 m1 Frame mm 150 150 160 160 fuel tank capacity ltr 50 50 60 60 Engine Model / YunneiYN4A055-31CR xicahi4D27G31-007 QuancahiC02-624 Rated capacity kW/r 36.8/2600 36.8/2500 36.8/2500 Rated torque N·m/r 180/1600~1950 156/1700~1900 157/1800~1900 cylinder number / 4 4 4 Displacement L 2.67 2.67 2.67
Model

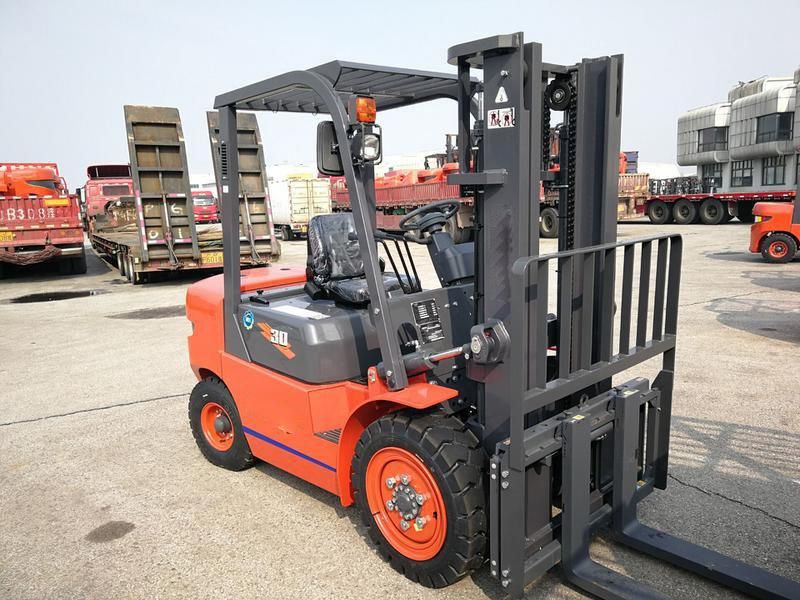

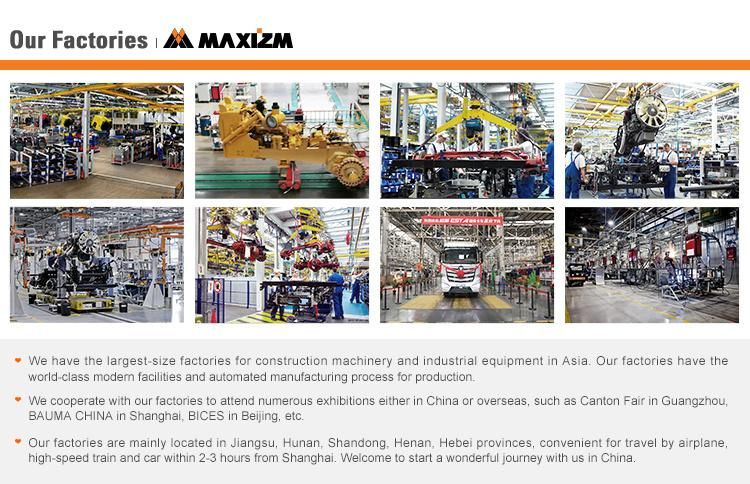

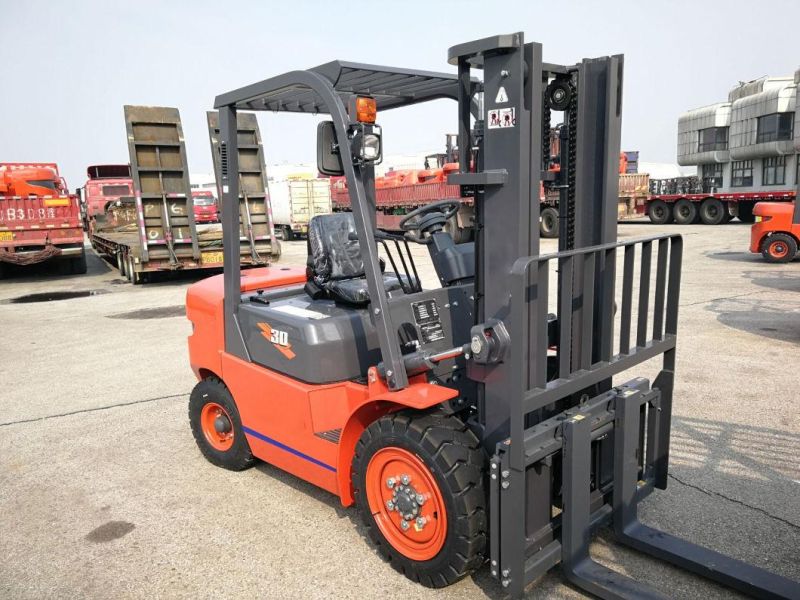

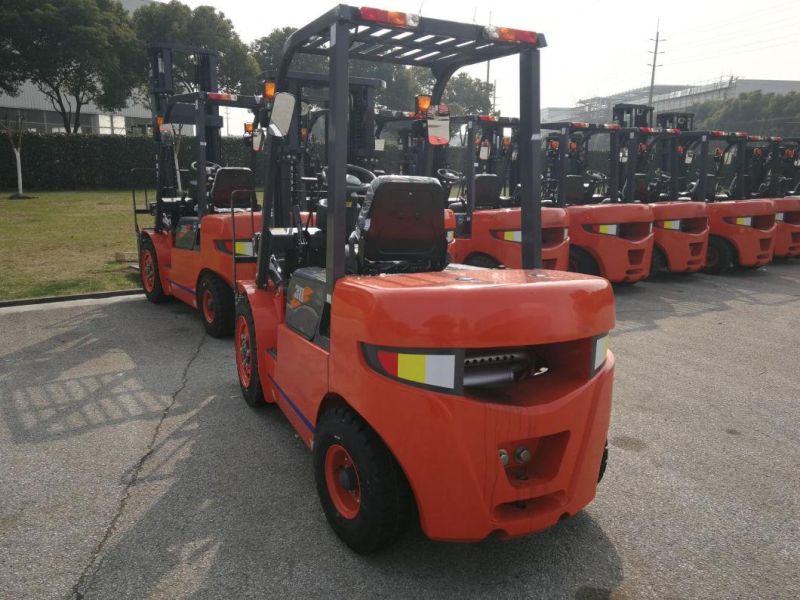

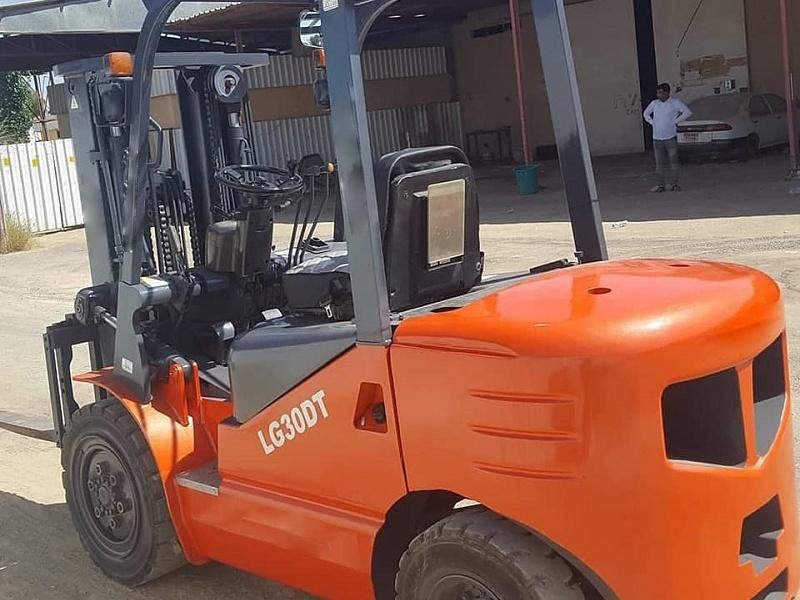

Detailed PhotosCompany Profile
