Ltmg 3000kg Mini Diesel Forklift with Bale Clamp

XIAMEN LTMG CO., LTD.
  • After-sales Service：Free Parts Within Warranty
  • Warranty：1 Year,2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Fuel：Diesel
  • Load center：500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Engine：Japanese or Chinese Engine
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Color：Customized
  • Fuel Tank：70L

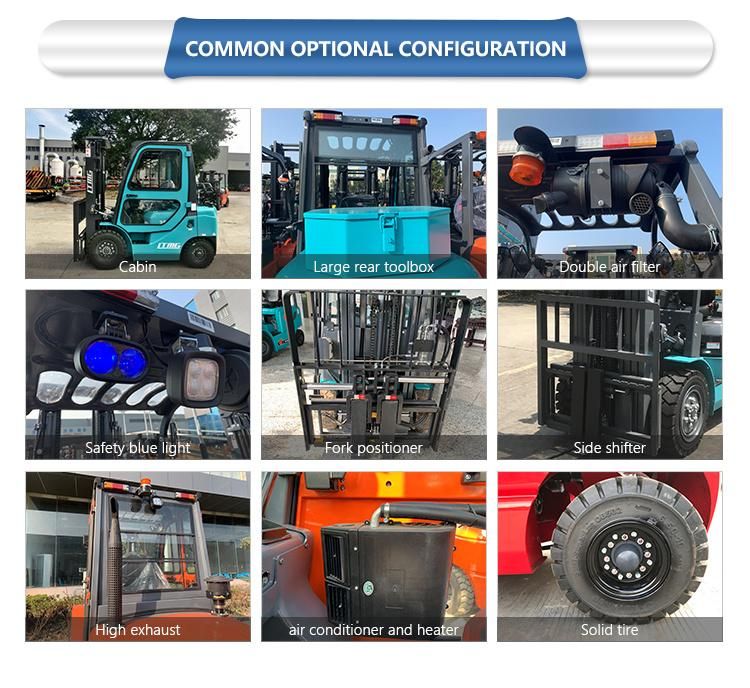

  • Optional：Cab, Fork Positioner, Side Shift, Lift Height, etc
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：1000set,Years

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180 Ltmg 3000kg Mini Diesel Forklift with Bale ClampLtmg 3000kg Mini Diesel Forklift with Bale ClampLtmg 3000kg Mini Diesel Forklift with Bale Clamp Ltmg 3000kg Mini Diesel Forklift with Bale Clamp
