• Model NO.：NEW-TE
• Lift height：3000~5000mm
• Condition：New
• Power Type：Electric
• Color：Orange
• Rated Capacity：3000kg
• Total Weight：830kg
• Wheel Base：1495mm
• Fork Width：175mm
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Overall Dimensions: 1985*850mm
• Trademark：Noelift
• Origin：China
• HS Code：84271020
• Production Capacity：30 Month

Basic Info.

Model NO. NEW-TE Lift height 3000~5000mm Condition New Power Type Electric Color Orange Rated Capacity 3000kg Total Weight 830kg Wheel Base 1495mm Fork Width 175mm Transport Package International Packing Way with Thick Plastic Film Specification Overall Dimensions: 1985*850mm Trademark Noelift Origin China HS Code 84271020 Production Capacity 30Month

Product Description

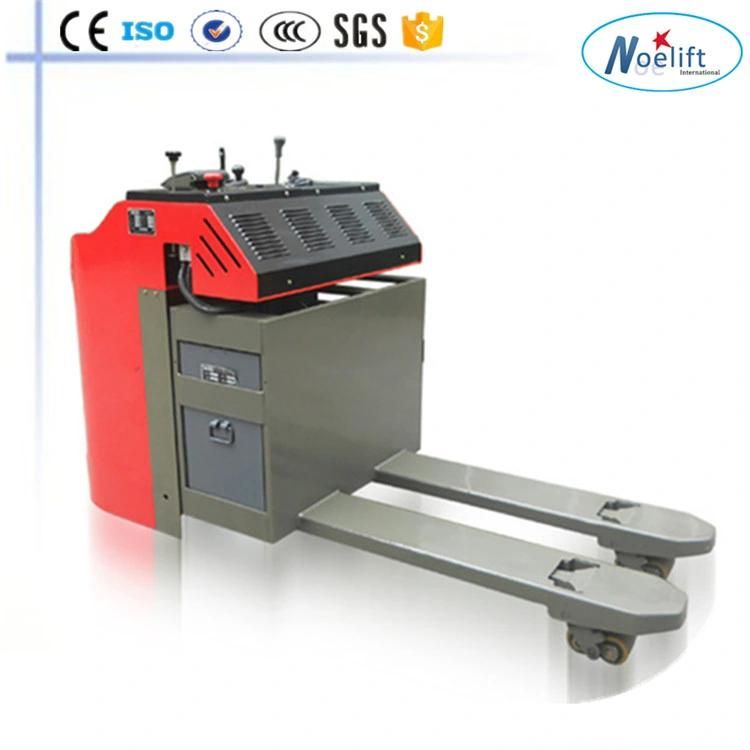

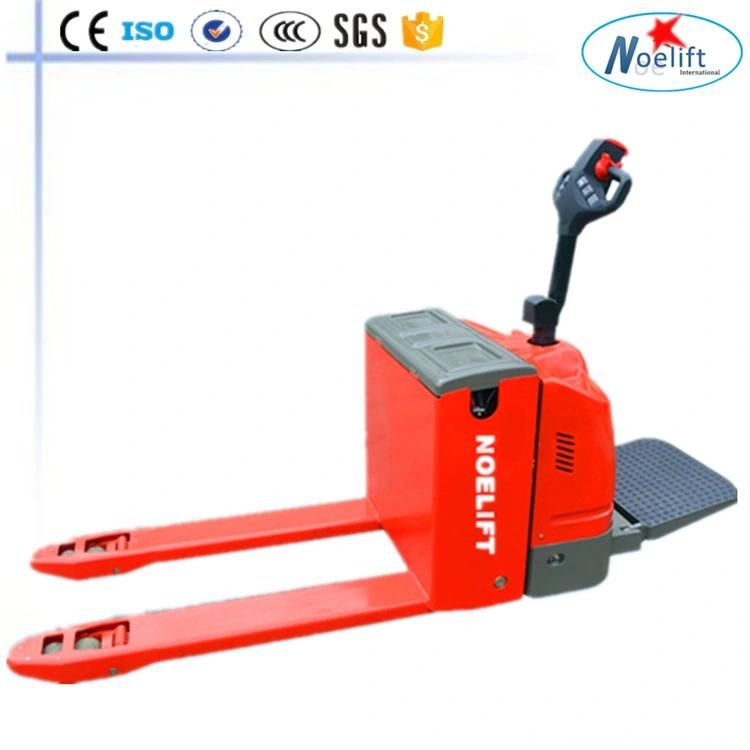

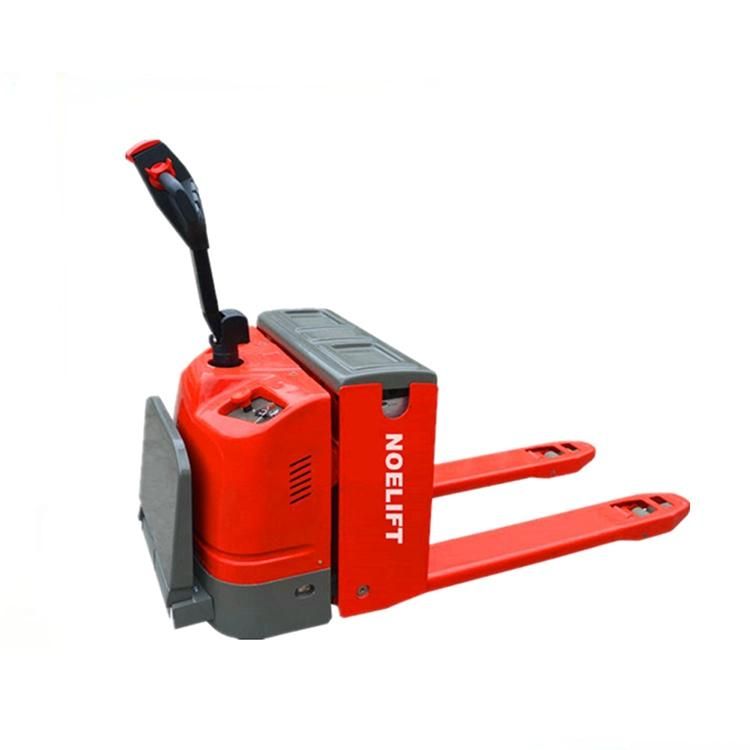

Warehouse Electric Pallet Truck 2ton




Main Fueatures

TE Series.It's popular in many industries.
1.Suit for horizontal transport to long distances.
2.Fast lifting and driving speed with 48v motors.
3.Pallet capacity 1500-6000kg.
4.Safety.Auto Curve Speed-reduced function.
5.Anti-roll back prevents uncontrolled traveled speed or roll-back on ramps when roading and unloading.
6.The smalll ground clearance to protect the operator.
8.High-strength frame design,suitable for tough workplaces ensures longer service life.


1	Model		TE25 with CE	TE30 with CE
2	Power type		Battery	Battery
3	Operation type		Stand-in	Stand-in
4	Foot platform& armrest		with	with
5	Rated Load Capacity	Q, kg	2500	3000
6	Load center	C,mm	600	600
8	Wheelbase	y,mm	1345	1550
11	Tyre type	kg	Solid PU	Solid PU
12	Tyre size, load wheel		Φ80x70	Φ80x70
13	Tyre size, drive wheel		Φ230x75	Φ215x75
14	Tyre size, auxiliary wheel		Φ125x50	Φ150x50
15	Tread, driving	b10, mm	476	618
16	Tread, Load	b11, mm	510	510
17	Overall height	h1, mm	1420	1420
18	Lift height	h2, mm	120	120
19	Forks min. lowered height	h3, mm	85	85
20	Stand platform height	h4, mm	155	130
21	Arm Tiller height	h5, mm	1094-1342	1094-1342
22	Overall length, fold/unfold	l1, mm	1850/2310	1985/2395
23	Overall width	b1, mm	730	850
24	Forks width	b2, mm	540/680	540/680
25	Forks dimenstion	l/e/s, mm	1150/170/56	1150/170/56
26	Ground clearance	m2, mm	35	50
27	Aisle width,1000X1200 pallet,crosswise,platfrom unfold/fold	Ast, mm	2875/2455	2590/2984
28	Aisle width,800X1200 pallet,lengthwise,platfrom unfold/fold	Ast, mm	2765/2345	2499/2895
29	Turning radius, fold/unladen	Ast, mm	2065/1645	1845/2240
33	Max.gradeability, laden/unladen (S2-5min)	%, tanθ	6/15	6/10
34	Service brake		electromagnetic	electromagnetic
37	Battery, voltage/nominal capacity	V/Ah	24V/210Ah	24V/210Ah
38	Battery weight	kg	200	200
39	Steering system		Electric	Electric
40	Service weight	kg	676	770
