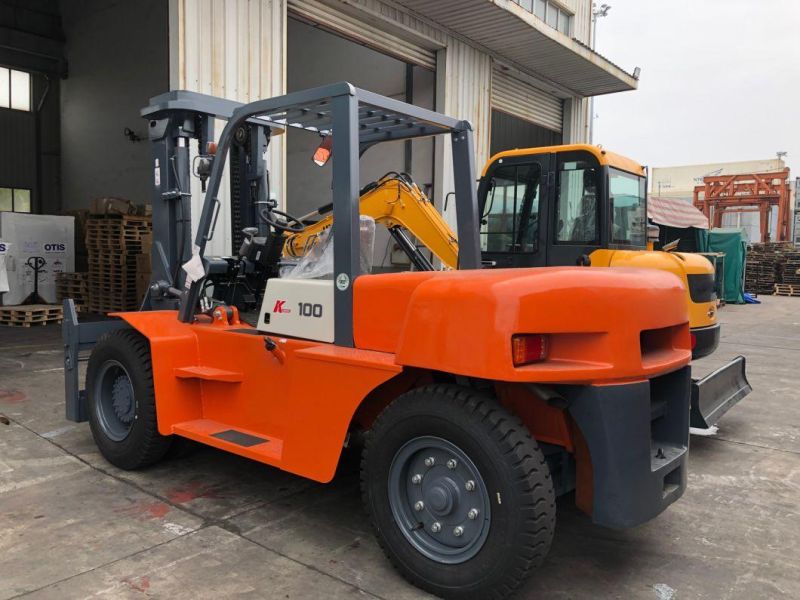

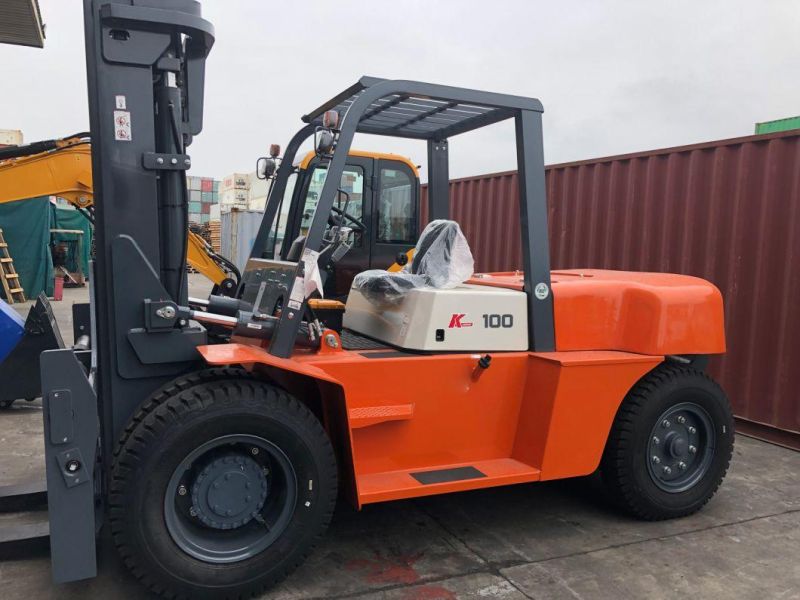

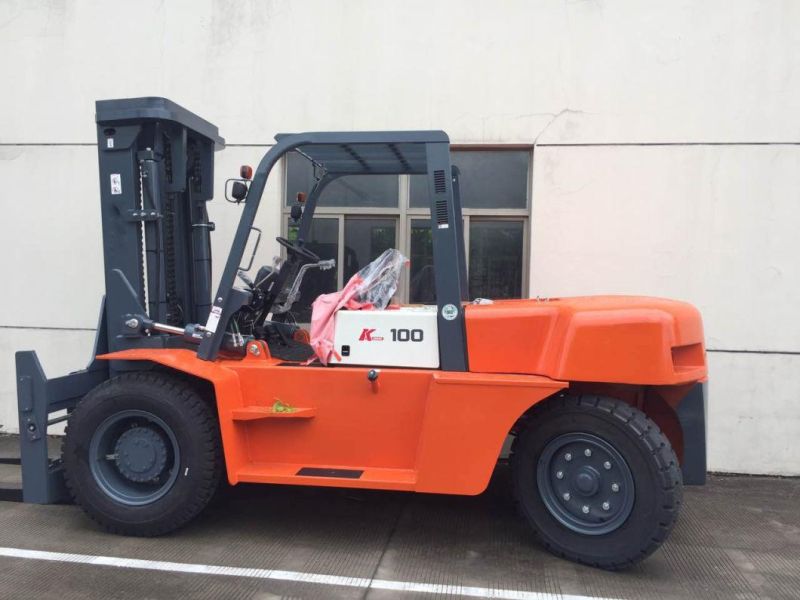

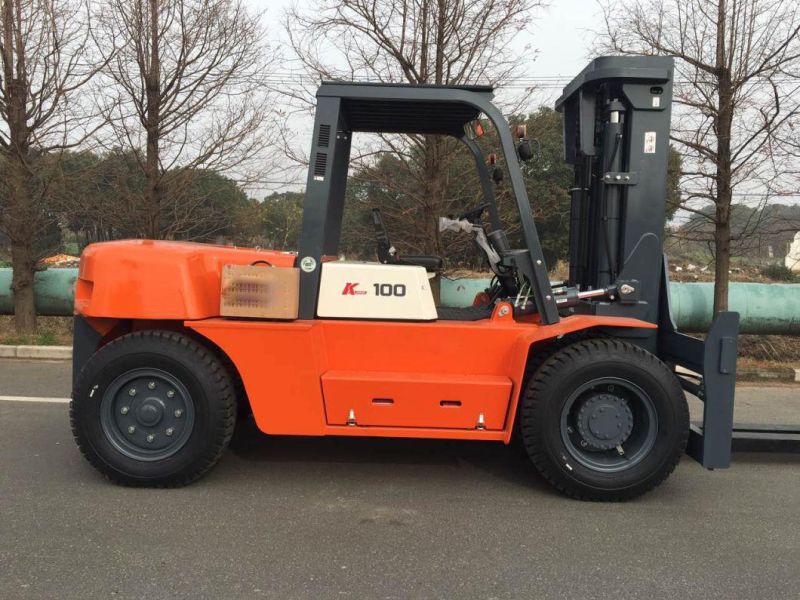

• Model NO.：CPCD100
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：10 Ton
• Max. Lifting Height：3000 mm
• Optional Engine：Xinchai
• Fork Length：1220 mm
• Operating Weight：12510 Kg
• Fork Width：170 mm
• Free Lift Height：200 mm
• Rated Power：83 Kw
• Overall Dimensions：5530*1945*2230 mm
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO, CE
• Trademark：HELI
• Origin：Anhui
• HS Code：84272090
• Production Capacity：1000sets,Month

Model CPCD50CPCD60CPCD70CPCD85CPCD100Power type DieselLoad capacitykg500060007000850010000Load centermm600Pallet fork maximum height (with block shelf)mm44004400440044204217Maximum lifting heightmm3000Free hoisting heightmm200Overall height (upper frame protection)mm24502450245025602560Full length (with cargo fork)mm47104790484051805430Full width mm20452045204521652165The minimum ground clearance (the door)mm200200200250250The minimum turning radius (outer)mm32403300337036503900Least square channel widthmm32003260333035903860Pallet fork a*b*cmm1220*150*551220*150*601220*150*651220*170*701220*175*80Maximum speed (full/empty)km/h24/2924/28Maximum traction(full/empty)KN6363626058Maximum gradeability (full/empty)%38/1935/1932/1923/2021/20Tire type (before/after) 2/2Engine manufacturers/models CA6110Rated powerKW/rpm83/2000Rated torqueNm/rpm450/1400-1500Total water (oil)kg830090509650115012660
Main technological parameters
