• Model NO.：cpd25
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Mast Tilt Angle (Forward/Backward)：6,12
• Front Overhang：483mm
• Wheel-Base：1500mm
• Tread(Front/Rear)：970,950mm

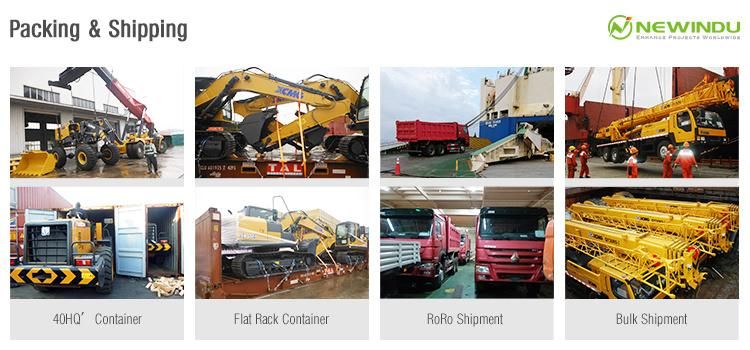

• Transport Package：Container Roro Bulk Break Shipment
• Specification：black
• Trademark：HELI
• Origin：Shanghai
• HS Code：8427109000
• Production Capacity：50PCS,Month

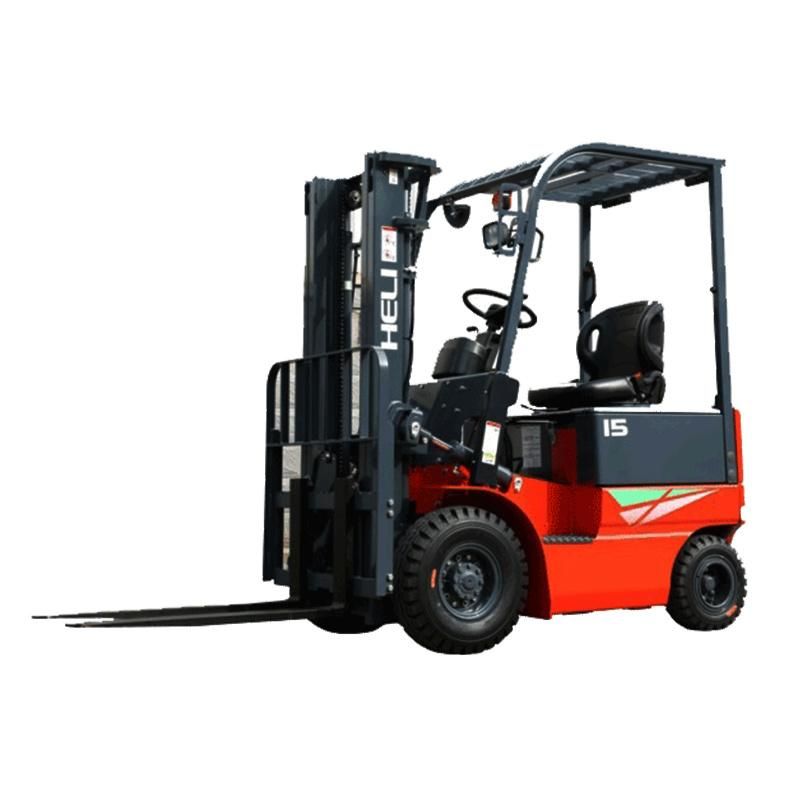

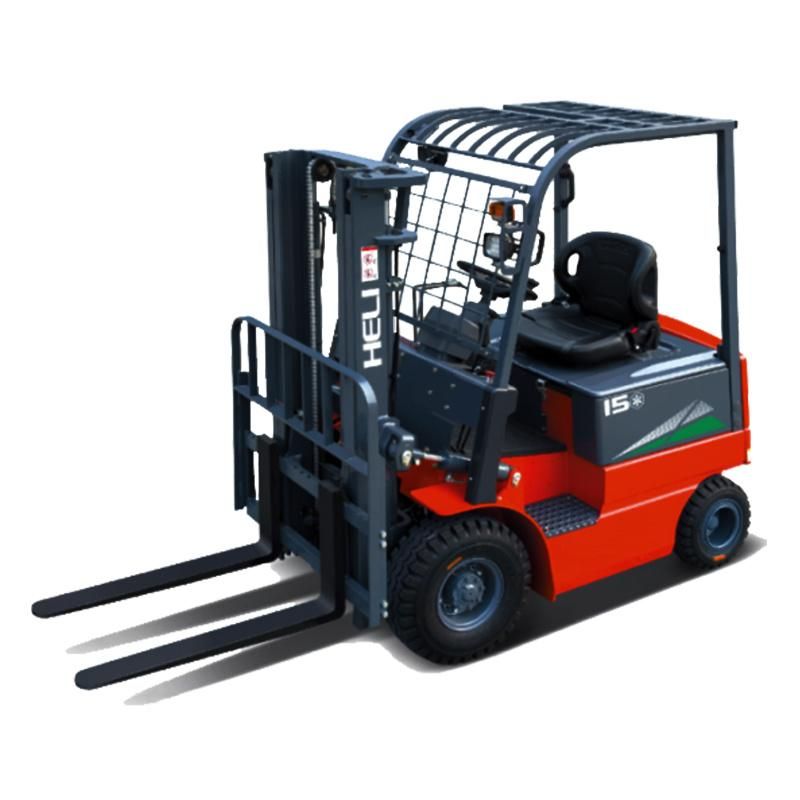

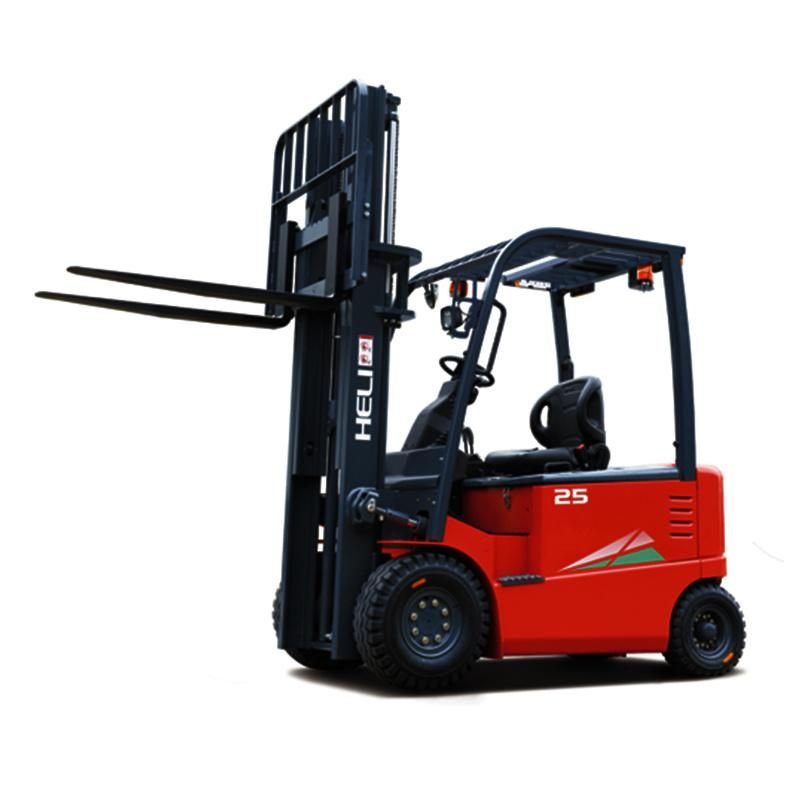

Model

/

CPD25

Power type

/

Battery

Rated capacity

kg

2500

Load center

mm

500

Lift height

mm

3000

Mast tilt angle (forward/backward)

Deg

6/12

Front overhang

mm

483

Wheel-base

mm

1500

Tread(front/rear)

mm

970/950

Travel brake

/

Hydraulic-Foot pedal

Parking brake

/

Mechanical-Hand leverG

Lift speed(with/without load)

mm/s

260/400

Lower speed (with/without load)

mm/s

(with load)<600,(without load)>300

Travel speed (with/without load)

km/h

11/12

Max. gradeability (with load)

%

10

Motor

Driving motor(Model)

/

XQ-6.3-1T

Driving motor(Rated power)

kw

6.3

Driving motor(Rated rotation)

r/min

1200

Working motor

Working motor(Model)

/

XQD-8.6-C

Working motor(Rated power)

kw

8.6

Working motor(Rated rotation)

r/min

1550

Controller

Manufacturer

/

GE

Type

/

MOSFET

Battery

Voltage

v

48

Capacity

Ah

630

Size(L×W×H)

mm

820×1065×520

Gearbox

Transmission type

/

Mechanical

Tire

type

/

Pneumatic tyre

Model(Front)

/

7.00-12-12PR

Model(Rear)

/

18×7-8-14PR

Self.weight

kg

4240

Free lift height

mm

140

Fork (Thickness×Width×Length)

mm

40×125×1070

Min. turning radius

mm

2100

Overall dimensions : Overall length(without forks)

mm

2430

Overall dimensions : Overall width

mm

1150

Overall dimensions : Overall height(Extended height(mast)

mm

4030

Overall dimensions : Overall height(Lower height(mast))

mm

1995

Overall dimensions : Overall height(Overhead guard)

mm

2150

Min. under ground clearance : Under mast

mm

110

Min. under ground clearance : Center of wheel-base

mm

120

Contact


Our company
We, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts,etc.
