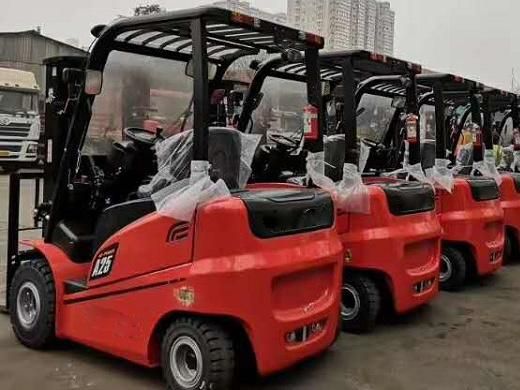

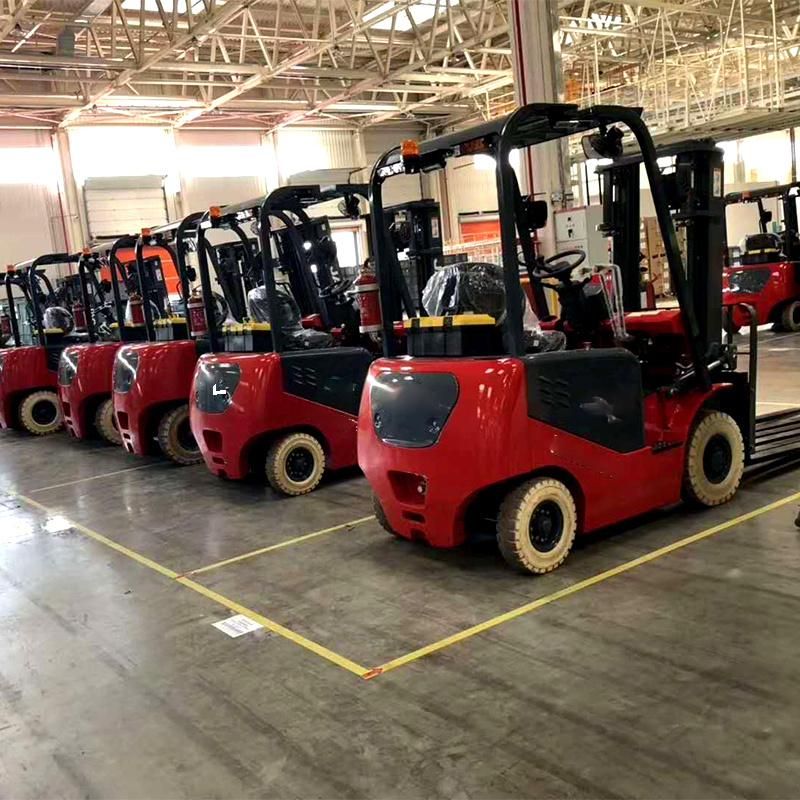

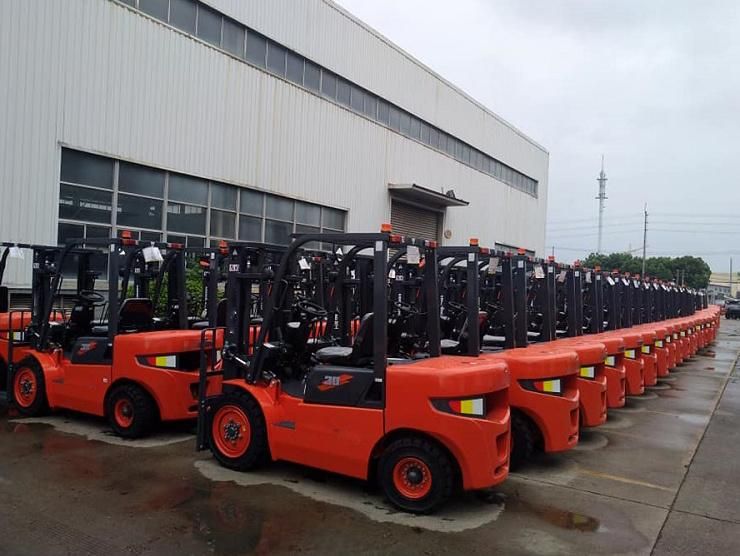

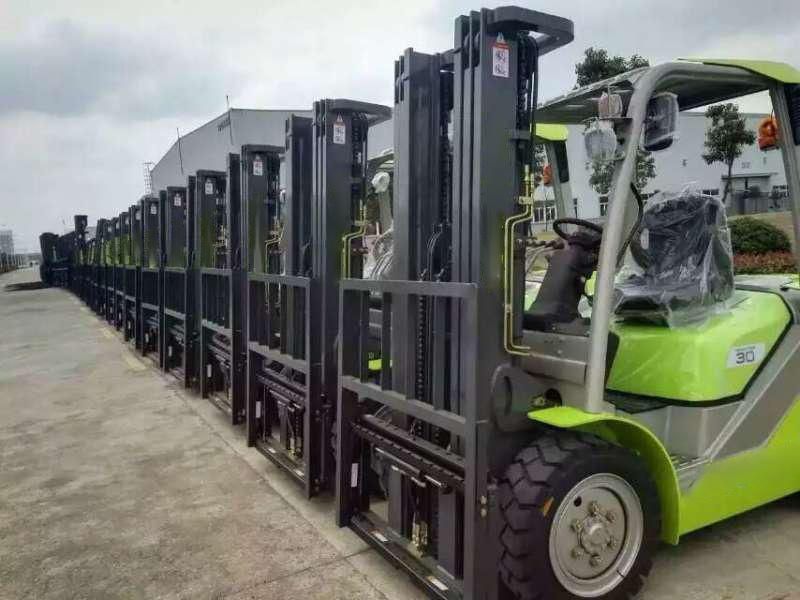

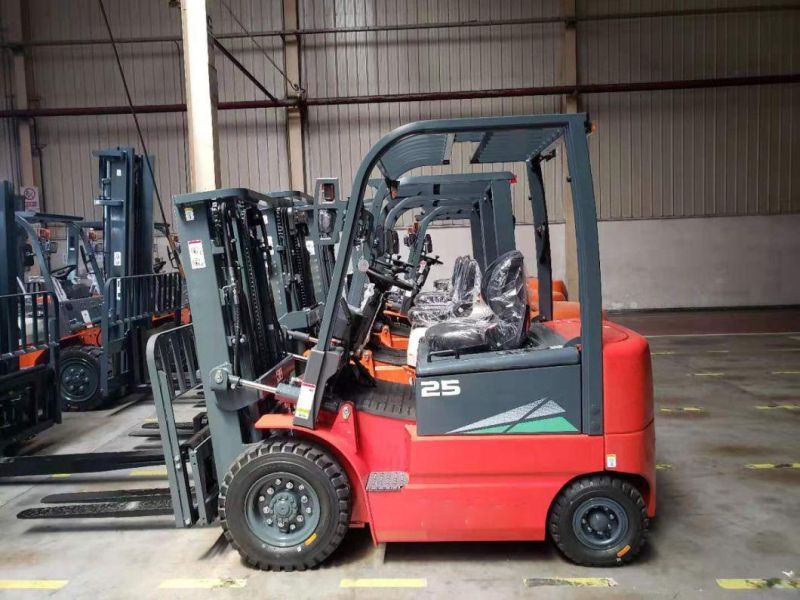

Yto/Heli/Hangcha/Zoomlion/Lonking/JAC Cpd25 2.5ton Small Battery Electric Forklift
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service:Online Video Support
- Warranty:One Year
- Cab Location:Not Adjustable
- Type:Powered Pallet Truck
- Power:AC Motor
- Load Capacity:1T - 5T
Base Info
- Model NO.:CPD25
- Fuel:Electric
- Load center:500mm
- Lift height:3000~5000mm
- Condition:New
- Standard Lifting Height:3000mm
- Standard Mast:2-Stage
- Standard Tyre:Pneumatic
- Optional:Side Shift,Solid Tyre,Fork Positioner etc
- Color:Red Yellow Blue Pink etc
- Transport Package:Nude
- Specification:ISO
- Trademark:EVANGEL
- Origin:China
- Production Capacity:100units,Month
Description
Model
CPD25
Power type
Battery
Rated capacity
kg
2500
Load center
mm
500
Lift height
mm
3000
Mast tilt angle(forward/backward)
Deg
6/12
Front overhang
mm
483
Wheelbase
mm
1500
Tread(front/rear)
mm
970/950
Travel brake
Hydraulic-foot pedal
Parking brake
Mechanical-hand level
Lift speed(with/without load)
mm/s
260/400
Lower speed(with/without load)
mm/s
With load< 600, without load> 300
Travel speed(with/without load)
Km/h
11/12
Max. Gradeability(with load)
%
10
Max. towing(with/without load)
kN
9.8/8
Weight distribution with load(front/rear)
kg
5900/840
Weight distribution without load(front/rear)
kg
1825/2415
Motor
Driving motor
Model
XQ-6.3-1T
Rated power
kW
6.3
Rated rotation
r/min
1200
Working motor
Model
XQD-8.6-C
Rated power
kW
8.6
Rated
r/min
1550
Controller
Manufacturer
GE
Type
MOSFET
Battery
Voltage
V
48
Capacity
Ah
630
Sized(LXWXH)
mm
820X1065X520
Gearbox
Transmission type
Mechanical
Tire
Type
Pneumatic tire
Model
Front
7.00-12-12PR
Rear
18X7-8-14PR
Self weight
kg
4240
Free lift height
mm
140
Fork
Thickness X Width X Length
mm
40X125X1070
Overall
dimensions
Overall length(without forks)
mm
2430
Overall width
mm
1150
Overall height
Extended height(mast)
mm
4030
Lowered height(mast)
mm
1995
Overhrad guard
mm
2150
Min. Turning radius
mm
2100
Min. Ground clearance
Under mast
mm
110
Center of wheelbase
mm
120
