• Model NO.：CPCD80
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Power Type：Diesel
• Rated Capacity：8000kg
• Load Center.：600mm
• Lift Height.：3000mm
• Engine：Isu.Zu
• Rated Power：82.4,2000kw
• Fork Thickness X Width X Length：75*175*1220mm
• Self.Weight：11210kg

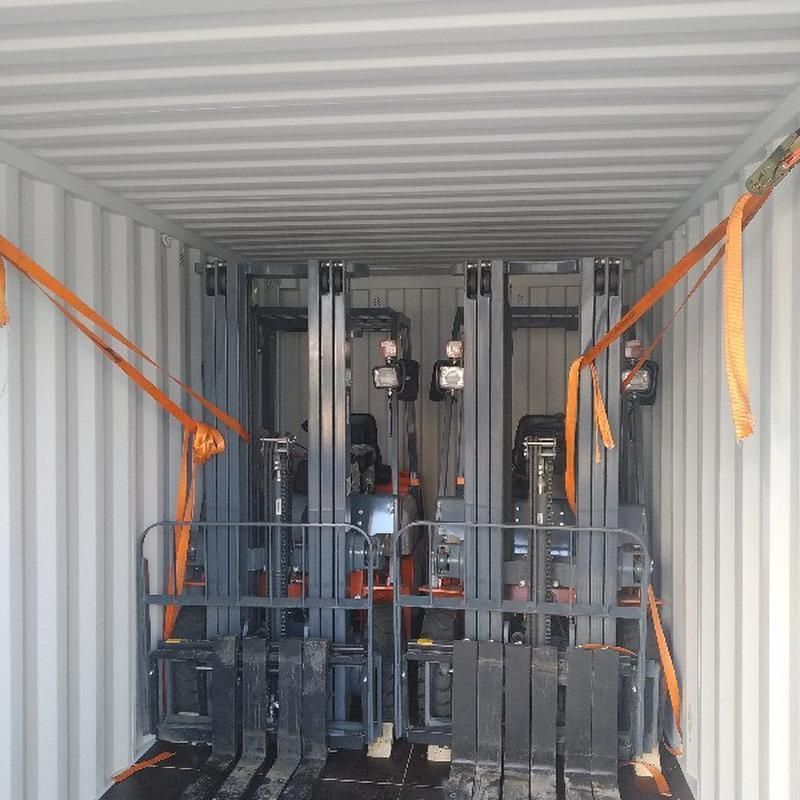

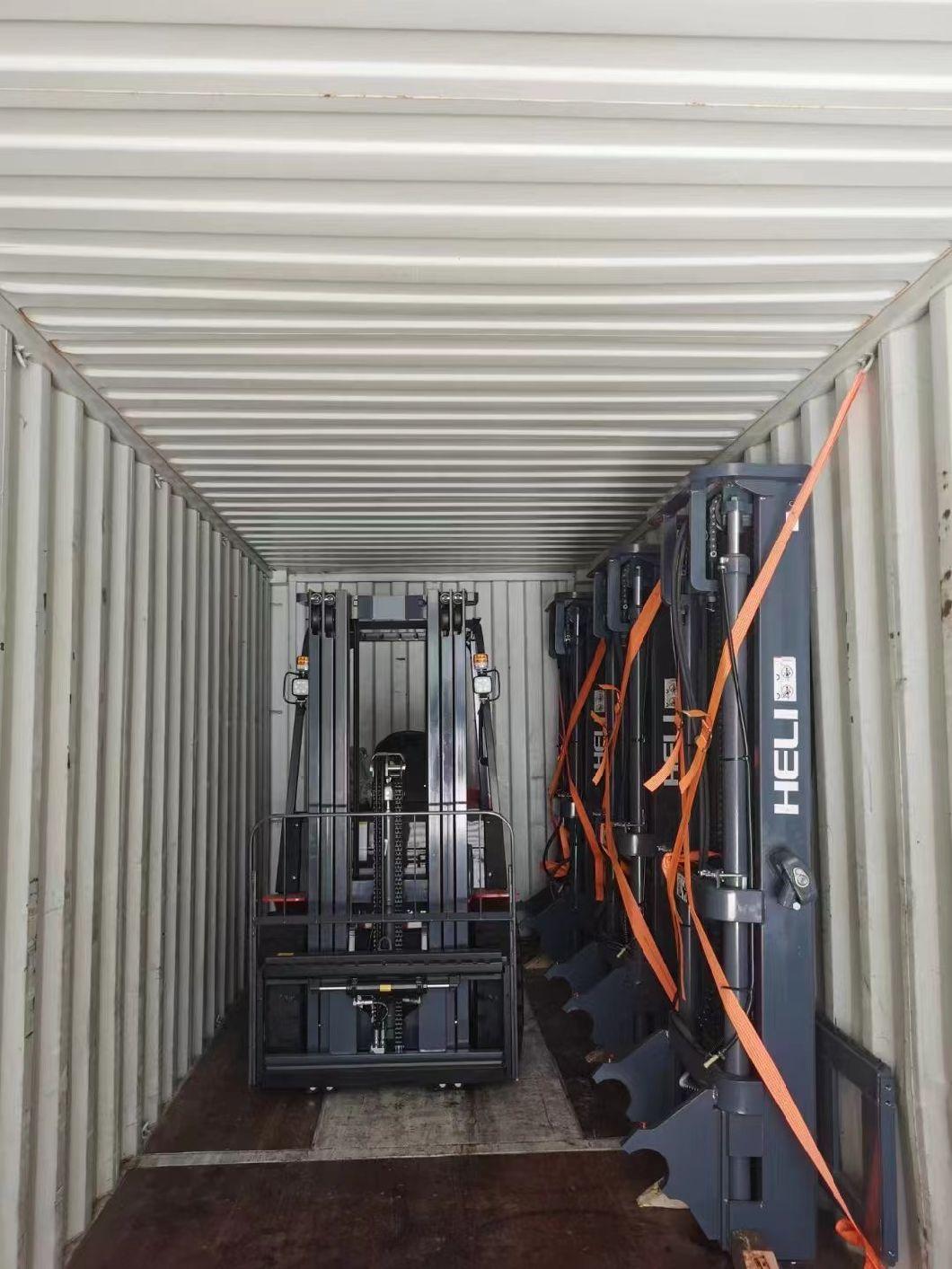

• Transport Package：Nube Packing
• Specification：3995*2050*2550mm
• Trademark：HELI
• Origin：Shanghai, China
• HS Code：842729000
• Production Capacity：10000 Units,Year

Overview Product Description

Improved performance
HELI specialized transmission box and drive axle with more than 20 years of market verification are stable and reliable forklift truck transmission systems. Load sensing and dual pump confluence hydraulic system technology not only improves working efficiency but also effectively reduces truck energy consumption. HELI forklift truck specialized electric control technology which is co-developed with engine manufacturer makes the engine perform better. Air cleaner with safety filter and electronic pressure alarm not only ensures engine air intake amount but also improve truck reliability and durability. Split type radiator improves cooling performance and truck reliability. The standard powered braking system offers quick-respond brake and effective brake; high capacity bag type accumulator with good performance improves truck reliability. Steering systems offer easy operation, flexible, and reliable steering. For LPG truck, with dual-cylinder type, the cruising range has doubled and realized the automatic switch between cylinders.

Product ParametersTechnical Data for CPCD80 Forklift                                                           Speciality parameterModel UnitCPCD80Power type  DieselRated capacity kg8000Load centerdmm600Lift heighth2mm3000Mast tilt angle (forward/backward)α/βDeg6/12Wheel-baseL4mm2600Tread(front/rear)b4/b5mm1535/1720                                         Performance               parameterTravel brake  Hydraulic-Foot pedalParking brake  Mechanical-Hand levelLift speed(with/without load) mm/s320/340Lower speed (with/without load) mm/swith load<600 ,                  without load>300Travel speed (with/without load) km/h21/24Max. gradeability (with load) %20Max. Towing (with/without load) kN43/33

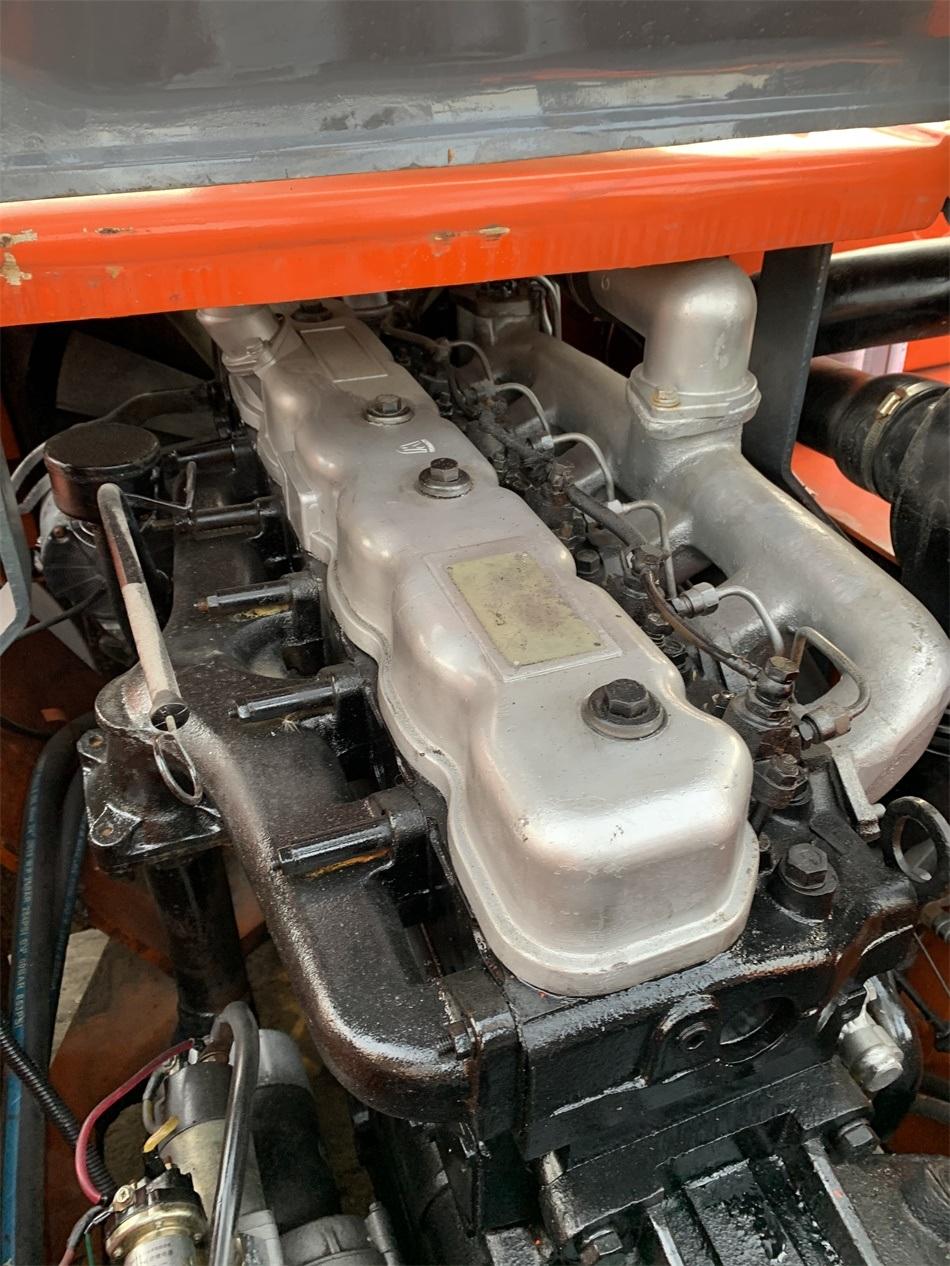

Power, transmission and others                   EngineModel  6BG1Manufacturer  ISU.ZURated power kw82.4/2000Max.  rotation Nm/rpm415/1400Displacement L6.49                         BatteryVoltage V24Capacity Ah2×100                        GearboxTransmission type  HydraulicGears,speed (front/rear)  II/II                          Tire type  Pneumatic tyre                     ModelFront  8.25-20-14PRRear  8.25-20-14PR                                  OthersSelf.weight kg11210Free lift heighth4mm165ForkThickness×Width×Lengthc×b×amm75×175×1220
Overall dimensionsOverall length(without forks)L2mm3995Overall widthb1mm2050
Overall heightExtended height(mast)h1mm4180Lower height(mast)h3mm2695Overhead guardh7mm2550Min. turning radiusWamm3670

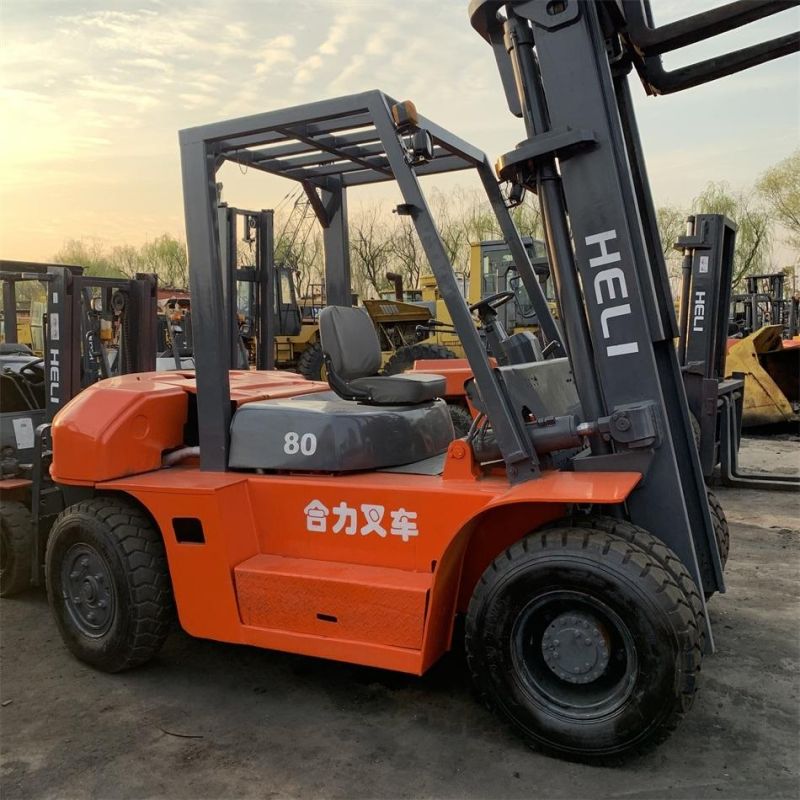

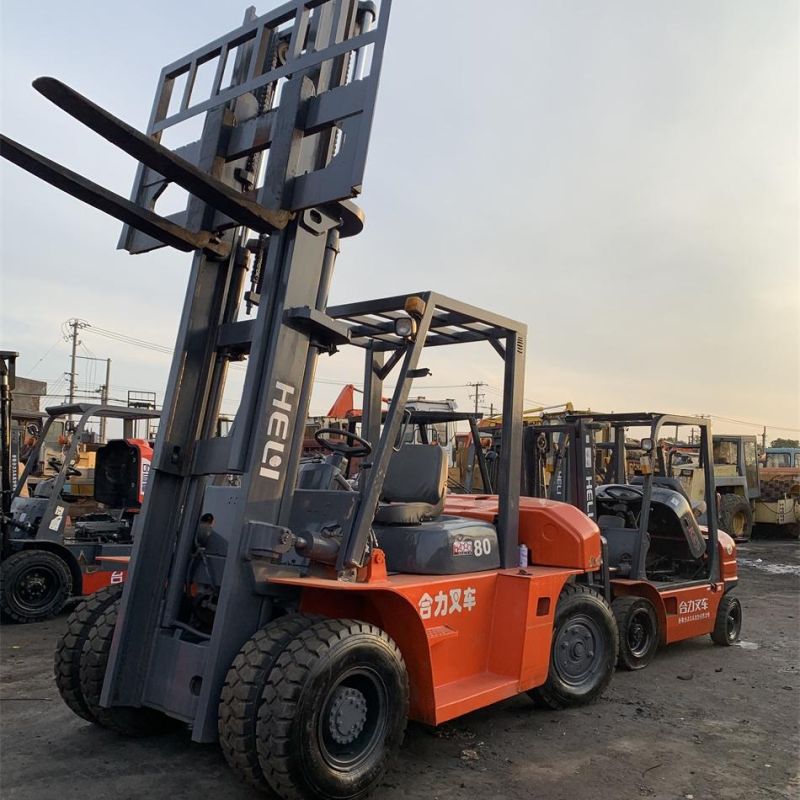

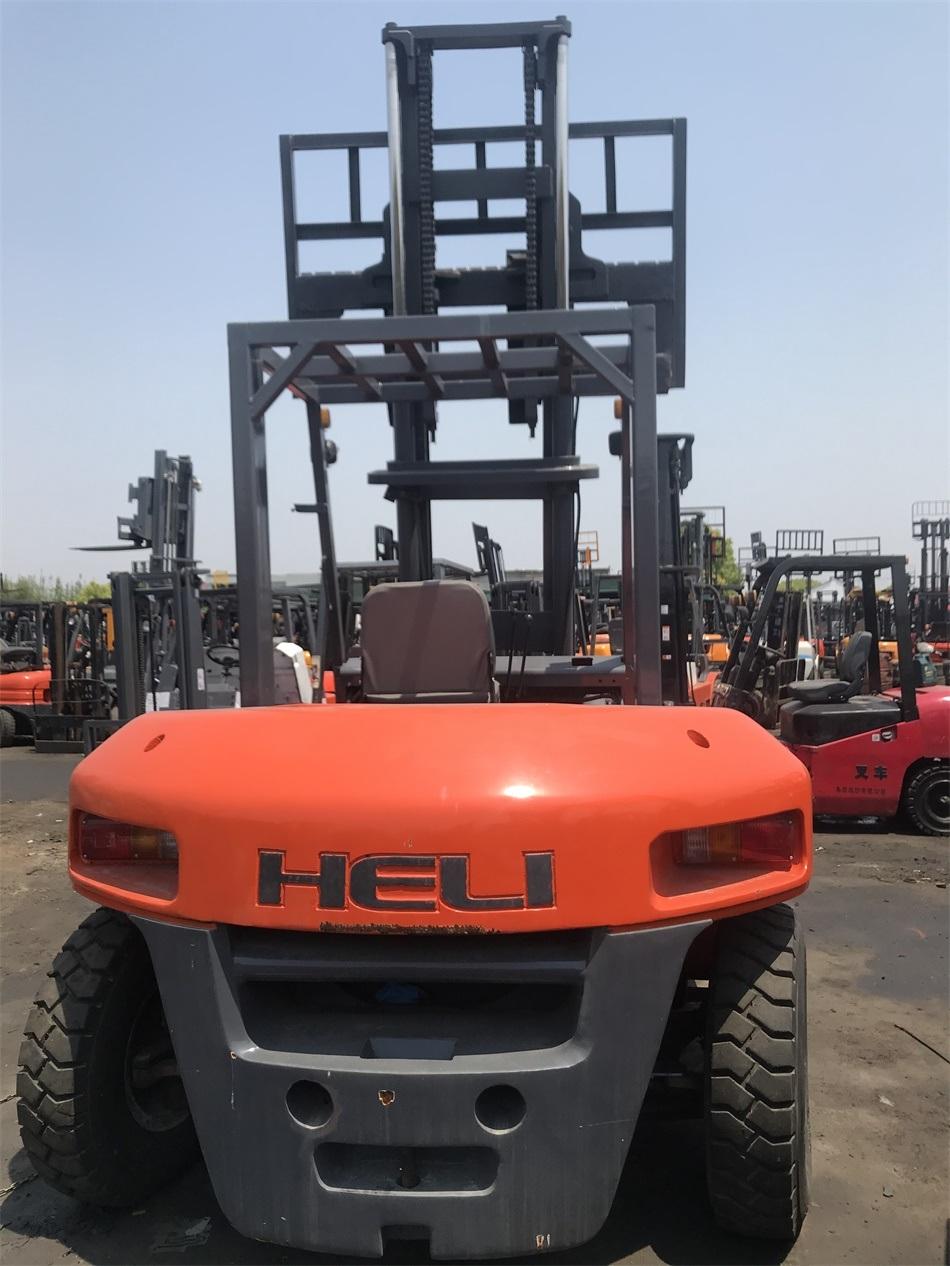

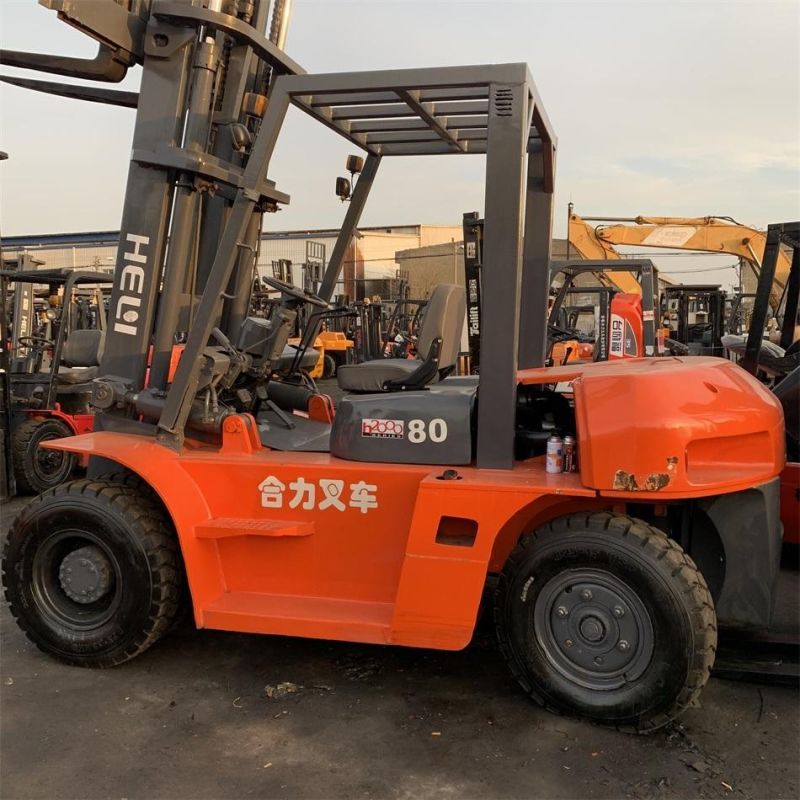

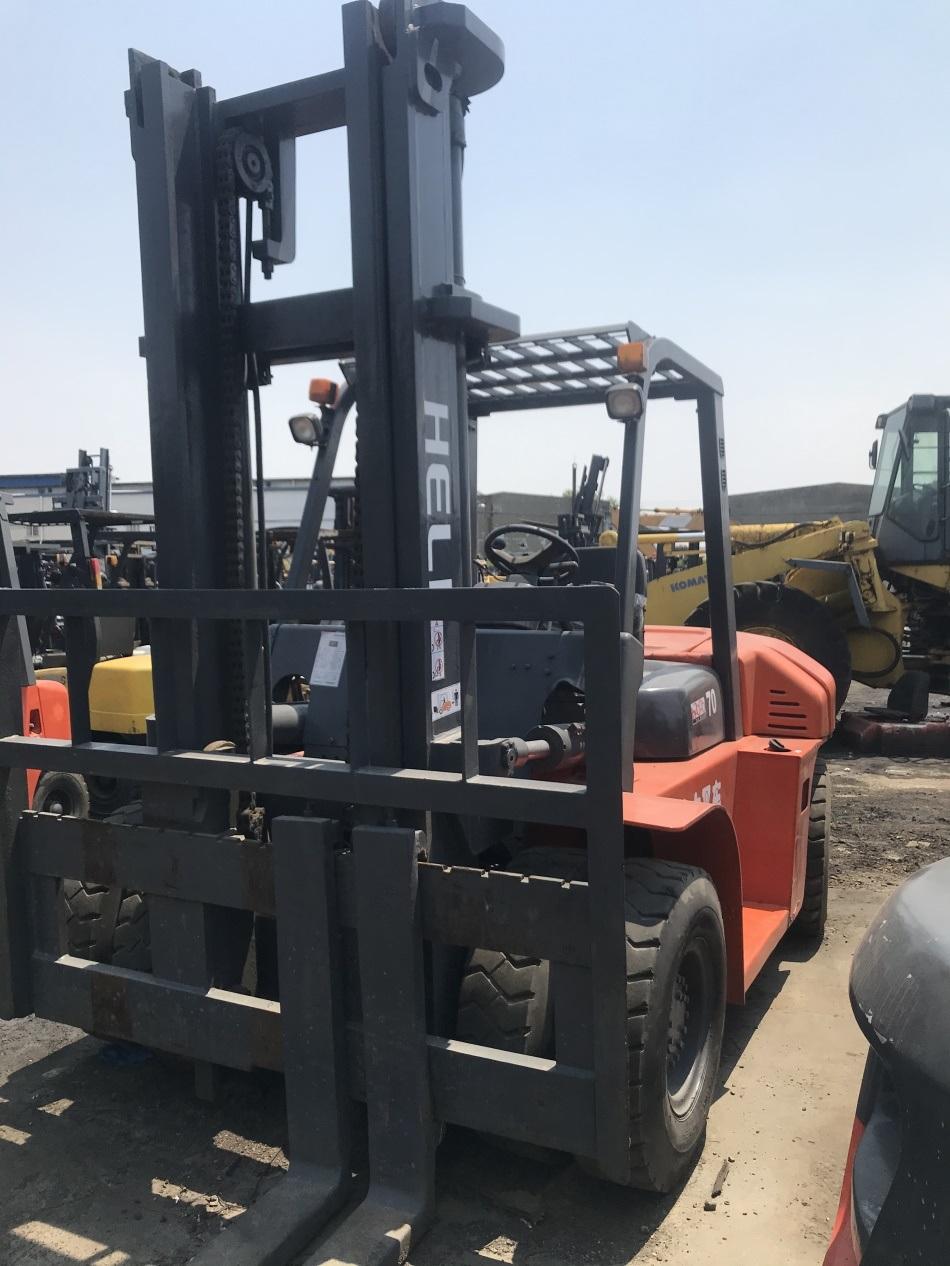

Min. under ground clearanceUnder mastm1mm245Center of wheel-basem2mm230Detailed Photos
