High Quality Heli Cpcd80 8 Ton Diesel Forklift China Made Forklift
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Free Parts
- Warranty:1 Year
- Cab Location:Adjustable
- Type:Diesel Forklift
- Power:Diesel Engine
- Load Capacity:5T - 10T
Base Info
- Model NO.:CPCD80
- Fuel:Diesel
- Load center:>500mm
- Condition:New
- Fork Length:1200mm
- Fork Width:120-160mm
- Weight (Kg):8000 Kg
- Model:Cpcd80
- Engine Model:Chaochai Cy6bg332
- Service Weight:10260kg
- Min Clearance (Drive Axle):130mm
- Min Turning Radius:3400mm
- Seat Face to Overhead Height:1000mm
- Height (Overhead):2230mm
- Overall Width:1945mm
- Overall Length(with 1520mm Fork):5260mm
- Transport Package:Nude Package, Container
- Specification:2500*5260*1945mm
- Trademark:HELI
- Origin:China
- Production Capacity:500
Description

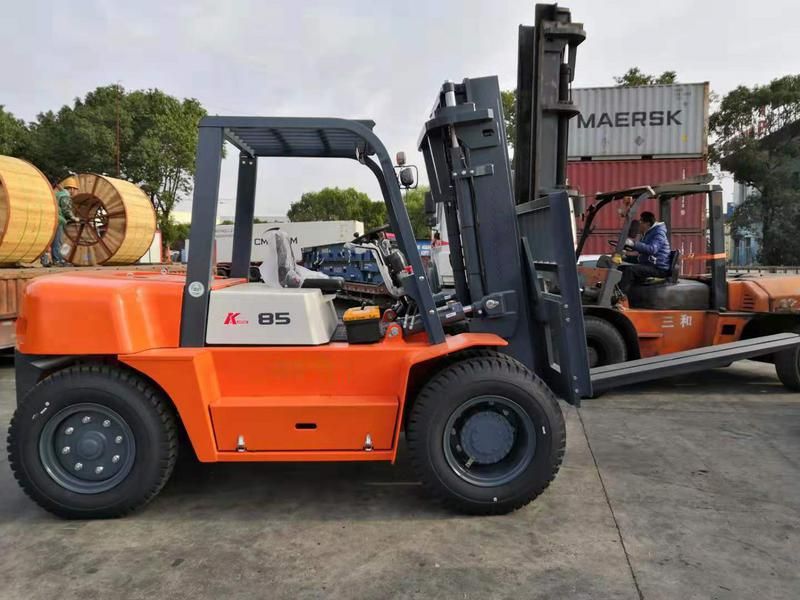

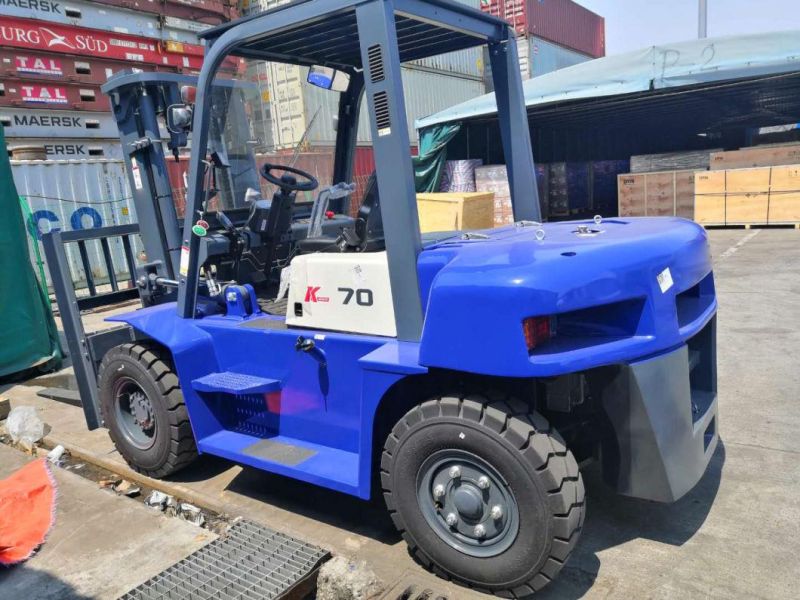

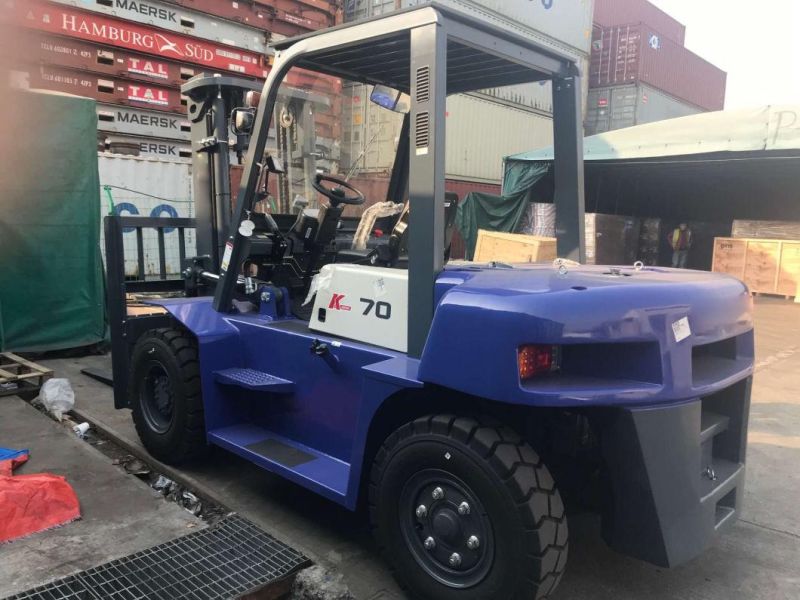

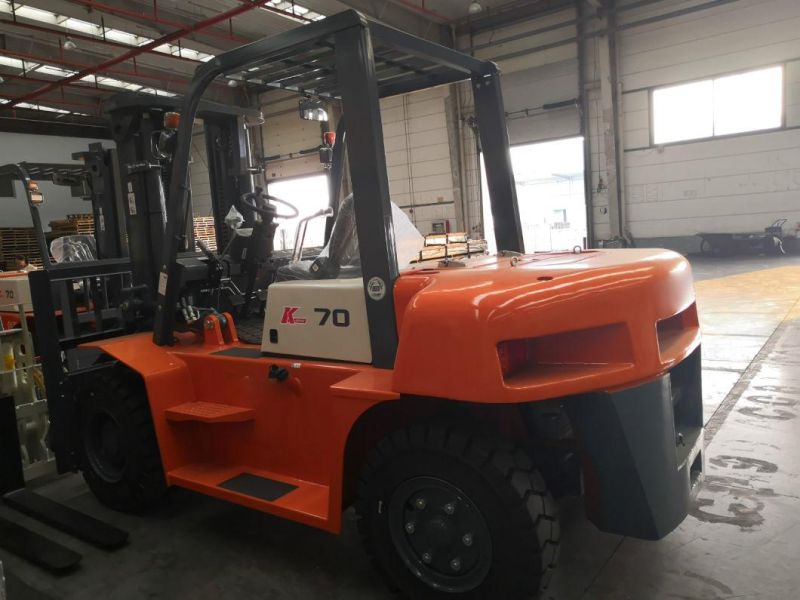

- Detailed Photos
Summary
Rate capacity kg 8000 10000 Load center distance mm 600 600 Mast lifting height mm 3000 3000 Free lifting height mm 170 180 Mast tilt angle(front/rear) ° 9/10 6/12 Dimension Length mm 5040 5480 Width mm 2000 2160 Mast height (retracted) mm 2585 2850 Overhead guard height mm 2540 2560 Fork(LxWxH) mm 1220×170×70 1220×175×80 Min. turning radius mm 3500 3900 Performance Max. travel speed (idle load) km/h 25 26 Lifting speed at full load mm/s 420 240 Grade ability at full load % 20 20 Deadweight kg 10700 12500 Engine Optional I Brand Chaochai Chaochai Model / / Rate power/Rev kw/r.p.m 85/2200 95/2200 Max.torque/Rev N.m/r.p.m 450/1400-1800 500/1500 Storage Battery Voltage/Capacity 24/80 24/80 Fuel Tank Volume 175 200 Hydraulic Oil Tank Volume 130 170
