• Model NO.：FD70T
• Fuel：Diesel
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Engine：Xinchai,Mitsubish
• Weight：3440kg
• Rated Capacity：4000kg
• Fork Size：1220X122X40mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：3640x1150x2125mm(LXWXH)
• Trademark：HIFOUNE,UNITCM
• Origin：Cn
• HS Code：8427109000
• Production Capacity：4500sets,Year

 ModelUNITFD70TSpecificationsPower Unit DieselOperator Type Driver/seatTransimission Bo× Type Electronic hydraulic transmissionRated Capacitykg7000Load Centermm600Ma×.Lifting Heightmm3000Tire Type Pneumatic TyreTire Number Front 4Rear2Tire Size Front 8.25×15-14PRRear 8.25×15-14PRPerformance×Lifting SpeedLoadedmm/s450Unloaded500Lowering Speed Loadedmm/s500Unloaded450Travelling Speed Loadedkm/h25Unloaded30Ma×.Gradeability (Loaded)%27Ma×.Drawbar Pull (Loaded)kg5400Mast Tilting Angle (Fwd/Bwd)deg6/12Free Lifting Heightmm155Turning Radiusmm3370DimensionsOverall Length (with fork)mm4870Overall Widthmm2000Overhead Guard Heightmm2480Fork Size (L×W×T)mm1220×150×65Mast Height (Fork lowered)mm2500Battery (Voltage/Capacity)V/Ah2×12/90Truck Weightkg9200Fuel Tank CapacityL135EngineBrand   MITSUBISHCHAOCHAIModel 6BG1S6S-T6102Rated Powerkw/rpm82.3/200067.6/230080.8/250Rated torquen-m/rpm418/1500293/1700354/1650Number Of Cylinder 666Displacement 6.494.995.78

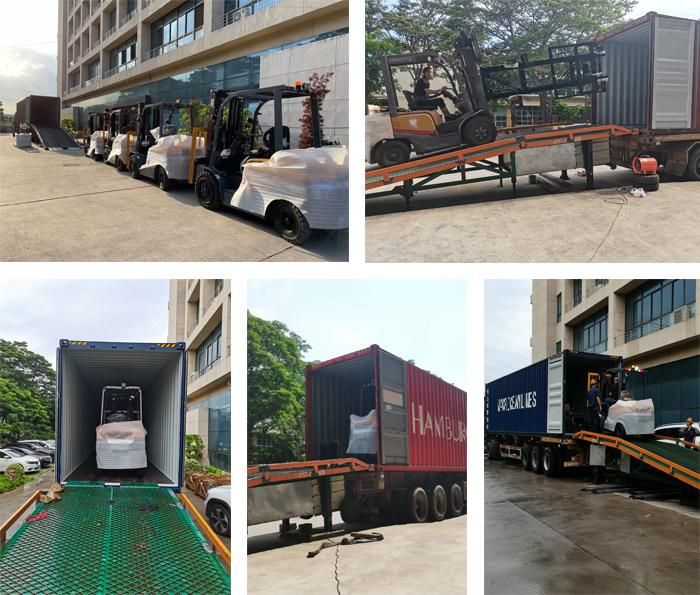

Shipping & Packing

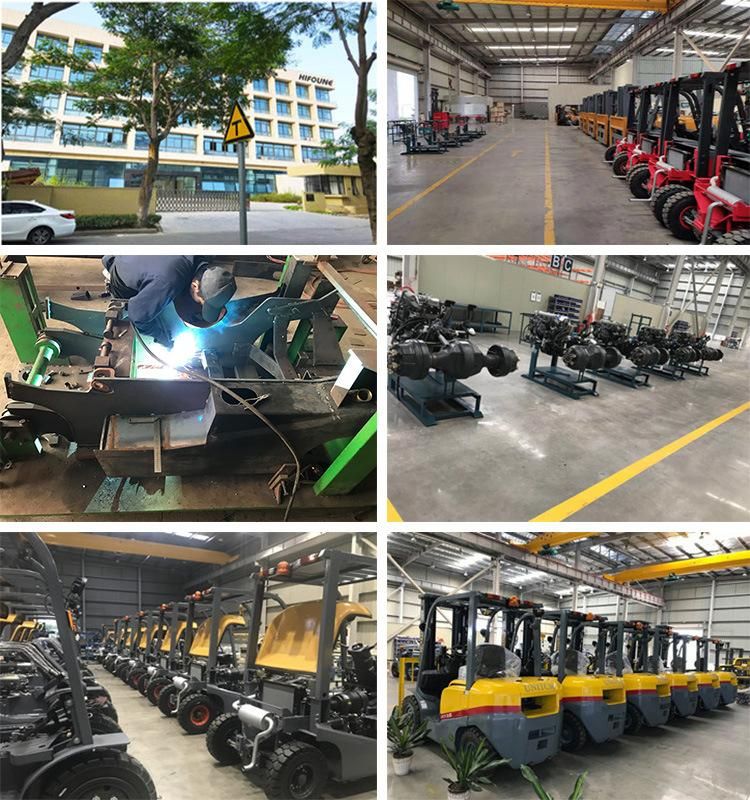

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links


Certificate
Our company has a variety of patents and our factory has also applied for many certificates. In the future, we will also develop and apply for more patents and certificates in this industry.



FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
