Walkie Behind 1.2t1.5t Walking Electric Pallet Stacker with 3m 3.3m Lifting
Hangzhou Noelift Equipment Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Power：DC Motor
- Load Capacity：≤1T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：ES12M , ES12MS , ES15M ,ES15M-S
- Lift height：1600 - 4000mm
- Condition：New
- Engine：DC Motor
- Controller：Pg , Curtis
- Fork Type：Fork Cover , Adjustable Fork
- Service Weight：460 - 590 Kg
- Double Lift：Yes
- Pallet Type：Single-Deck , Double-Deck Pallet
- Narrow Aisle：1278mm
- Ground：Smooth
- Working Shift：4 Hours
- for Light：Medium Duty
- Transport Package：International Packing Standard Way with Additiona
- Specification：1716*800*2035mm
- Trademark：NOELIFT
- Origin：Zhejiang
- HS Code：842710200
- Production Capacity：600units
Description
MODELES12M/ES15M POWER ELECTRIC OPERATION WALKIE TRAVELING MOTOR 0.75DC LIFTING MOTOR DC 2.2kw RATED CAPACITY kg 1500 LOAD CENTER mm 500 LIFTING HEIGHT Mm 1.6m/2.5m/3.0m/3.3m MAST CLOSED HEIGHT mm 2150/1785/2035/2185 TOTAL LENGTH mm 1716 TOTAL WIDTH mm 1270 TURNING RADIUS mm 1378 FORKS LOWERED HEIGHT mm 85 SERVICE WEITHG(WITH BATTERY) kg 510/580/610/640

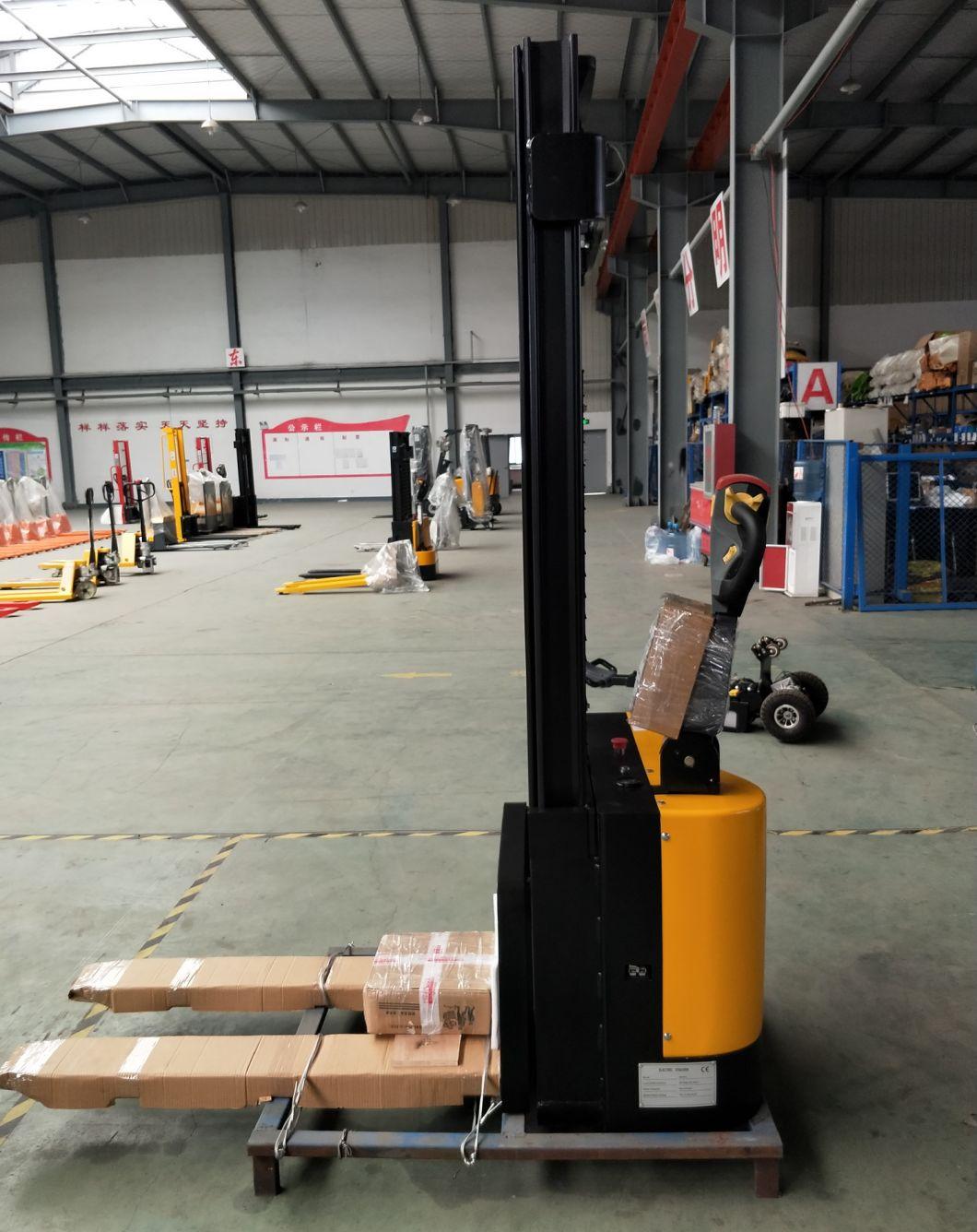

1500kg electric pallets stacker packing

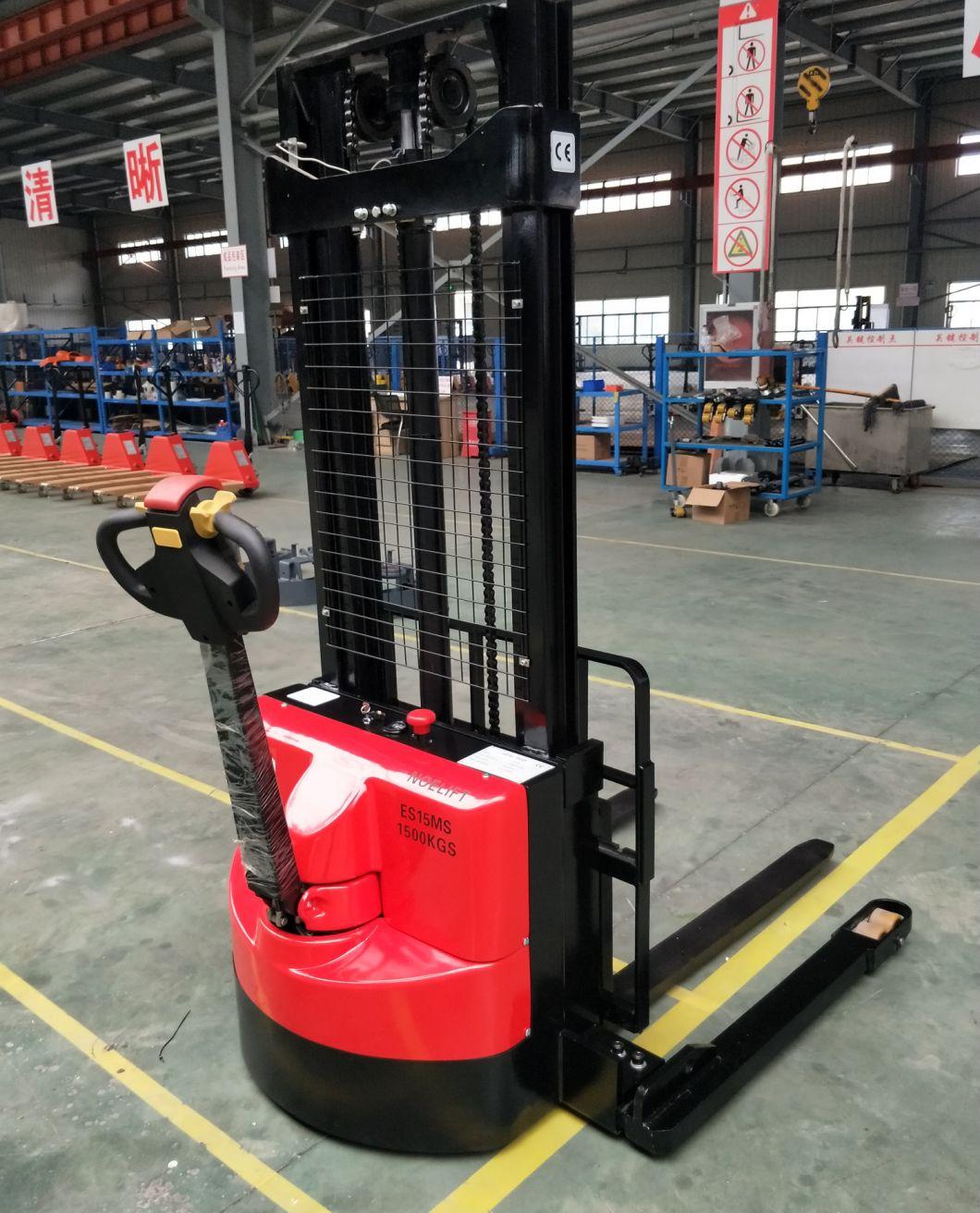

1.5t/3.0m full electric stacker
ES15M-33
Operate type : walkie
Capacity: 1500kg
Service weight :610kg
Tire: PU wheel
Mast lowered height: 2035mm
Lift height : 3300mm
Mast type: duplex mast
Overall Length :1716mm
Overall width : 800mm
Fork dimention : 1150*160*50mm
AST,1000x1200 pallet crossways 1900mm
Turning radius: 1378mm
DC 1.1Kw driving motor
DC 2.2Kw lifting motor
24V/120AH battery
PG controller

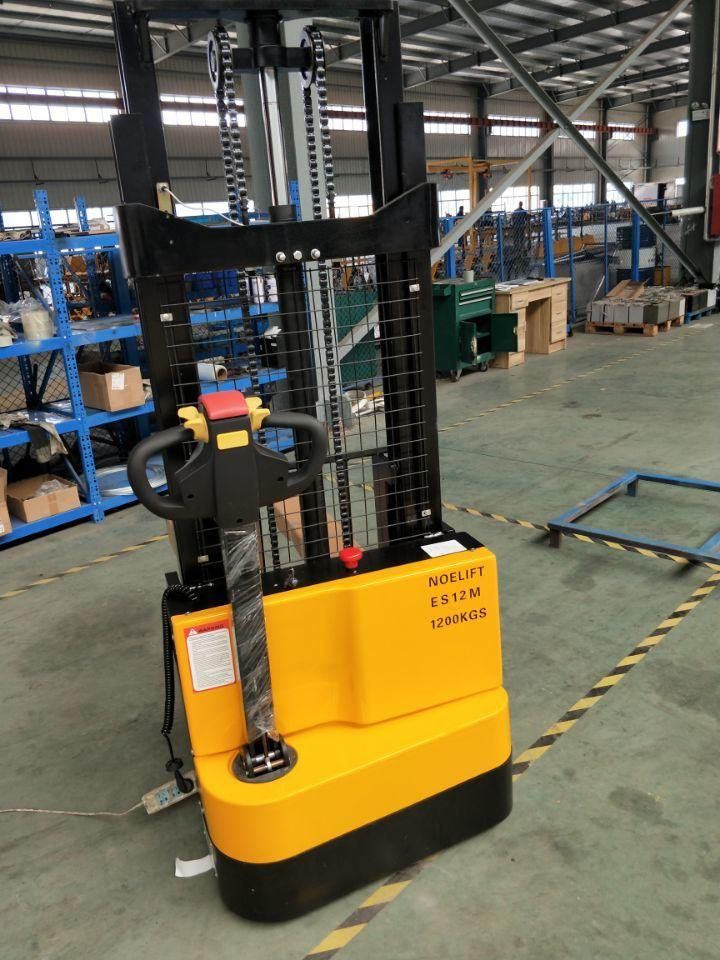

1200kg electric pallet stacker
1.2T/3.0M Electric pallet stacker
Model:ES12M - 30
Power Type:electric
Operation type:Walkie
Rated Capacity:1500kg
Wheel type:PU
Mast type : 2 stage mast
Overall length (Without fork):1716mm
Overall Width:800mm
Fork size:1150*160*50mm
Lifting hight:3000mm
Min. Aisle width with 1000x1200mm pallet crossways : 2225mm
Battery capacity:24V/100AH

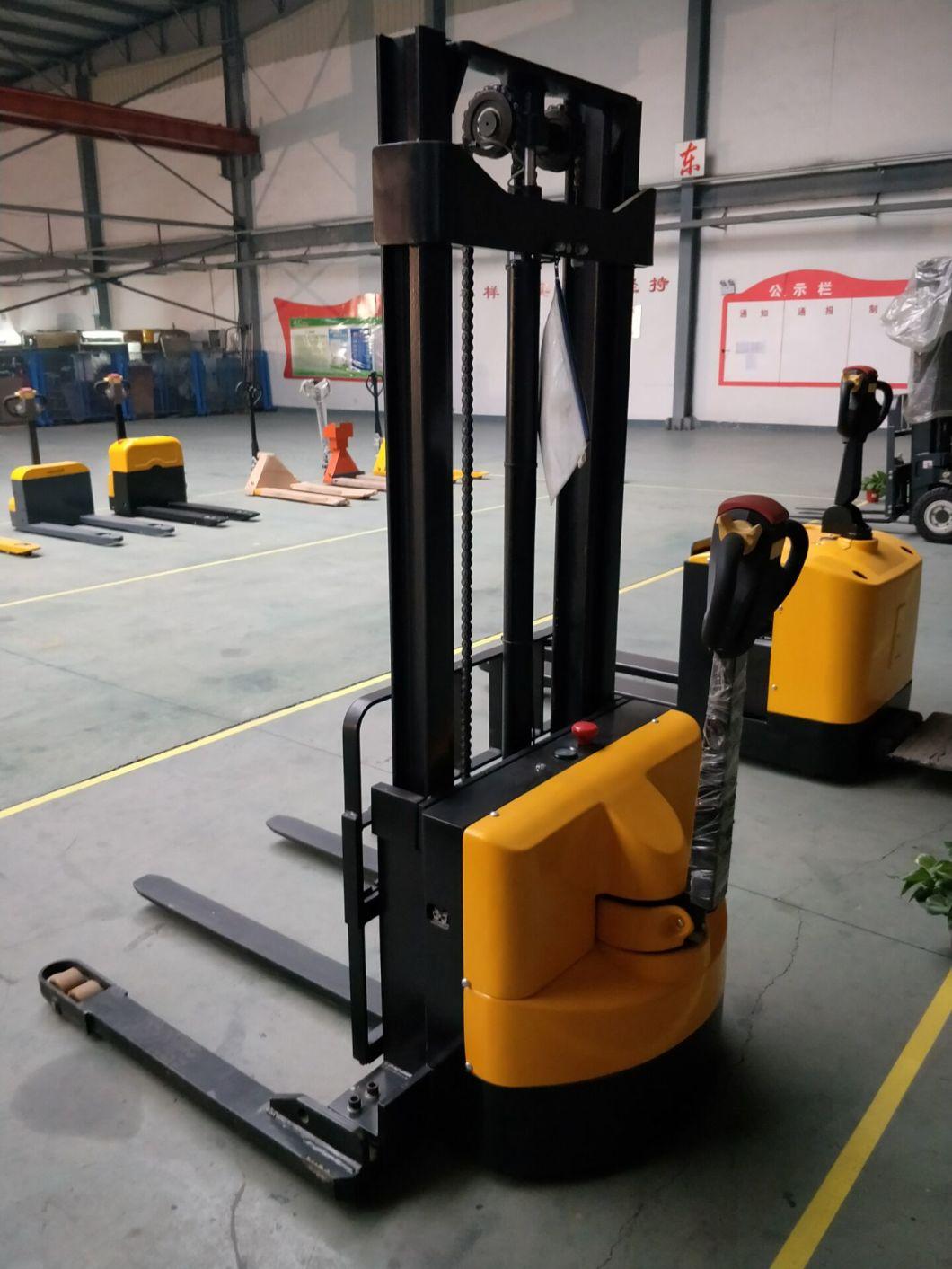

1500kg electric stacker with yellow color, PU wheel, 1070mm forks, adjustable wide leg,
12 month warranty,
1.5t/3.0m full electric stacker
ES15M-33
Operate type : walkie
Capacity: 1500kg
Service weight :610kg
Tire: PU wheel
Mast lowered height: 2035mm
Lift height : 3300mm
Mast type: duplex mast
Overall Length :1716mm
Overall width : 800mm
Fork dimention : 1150*160*50mm
AST,1000x1200 pallet crossways 1900mm
Turning radius: 1378mm
DC 1.1Kw driving motor
DC 2.2Kw lifting motor
24V/120AH battery
PG controller
1200kg electric pallet stacker
1.2T/3.0M Electric pallet stacker
Model:ES12M - 30
Power Type:electric
Operation type:Walkie
Rated Capacity:1500kg
Wheel type:PU
Mast type : 2 stage mast
Overall length (Without fork):1716mm
Overall Width:800mm
Fork size:1150*160*50mm
Lifting hight:3000mm
Min. Aisle width with 1000x1200mm pallet crossways : 2225mm
Battery capacity:24V/100AH
