Mini Diesel Forklift Trucks Cpcd15
Henan Haiheng Import and Export Co., Ltd.- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
Base Info
- Model NO.：CPCD15
- Condition：New
- Forklift：Cpcd15
- Transport Package：Wood Frame
- Specification：A
- Trademark：CHHCC
- Origin：Henan
- HS Code：84272010
- Production Capacity：300 Per Month
Description
Model CPCD10 CPCD15 CPCD18 Power type diesel diesel diesel Rated capacity kg 1000 1500 1800 Load center mm 500 500 500 Mast Lifting height mm 3000 3000 3000 Fork size Length*Width*Thickness mm 920x100x35 920x100x35 920x100x40 Tilting angles Front/Rear . 6/12 6/12 6/12 Min. Turning Radius mm 1980 2060 2060 Min. intersecting stacking aisle mm 3600 3680 3680 Min. intersecting aisle mm 1785 1865 1865 Min. ground clearance mm 100 100 100 Overhead guard height mm 2040 2040 2040 Front overhang mm 420 420 420 Max. driving speeds km/h 14.5 14.5 14.5 Max. lifting speeds mm/s 460 460 460 Max. grade ability % 20 20 20 Length without fork mm 2205 2285 2285 Overall width mm 1070 1070 1070 Max. lift mm 4030 4030 4030 Mast height mm 1985 1985 1985 Tires Front mm 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR Rear mm 5.00-8-10PR 5.00-8-10PR 5.00-8-10PR Wheelbase mm 1400 1400 1400 Tread Front/ Rear mm 890/920 890/920 890/920 Self-possessed Kg 2280 2680 2890 Battery Voltage/Volume V/Ah 12/80 12/80 12/80 Engine Model NB485BPG Rated output kw/r.p.m 30/2600 Rated torque Nm/r.p.m 131/1800 No.of cylinder 4 Displacement L 2.27 Fuel tank capacity L 45
Products series

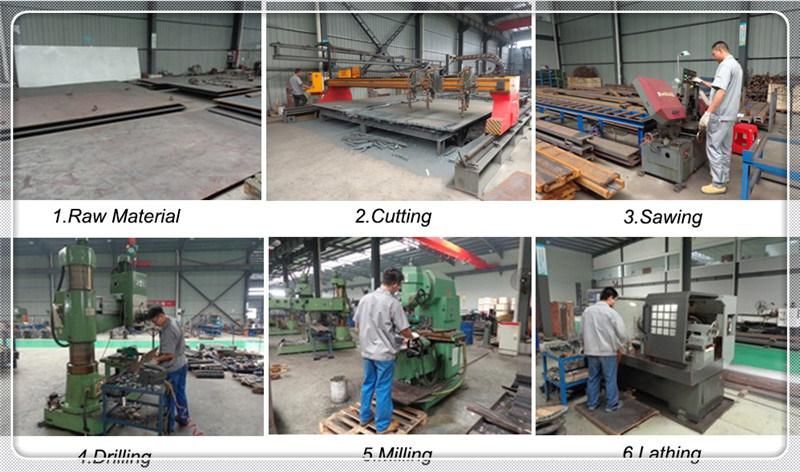

Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the forklift?
A: By container, bulk ship, RORO.
Q2. Do you have different forklift?
A: Yes,we supply different model forklift and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which type forklift do you supply?
A: We supply all kinds of forklift such as gas, petrol, diesel, electric forklift etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
