• Model NO.：FD20
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220*150*60mm
• Turning Radius：2865mm
• Truck Weight：7860kg
• Engine：Isuzu or Mitsubishi or Chinese Engine
• Rated Power：52kw,2300rpm
• Turning Radius(Outside)：2865mm
• Min.Ground Clearence：100mm
• Wheelbase：2000mm
• Gradeability：25%
• Tire：Pneumatic
• Transport Package：Container
• Specification：3183mm*1485mm*2390mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Manufacturer   LTMGModel Power shift T/M                      FD30Manual shift T/M                      FD30Load capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backwarddeg6/12Overall length(without fork)                   mm2705Total width  mm1225Mast height (fork lowering)                  mm2075Overall height fork raised                    With backrest  mm4250Height to head guard                           mm2140Turning radius(outside)                            mm2445Front face of fork to front axle                 mm480Min. right angle stacking aisle               without load length&clearance mm2925Speed Max Travelling full/no load km/h18/19.5Lifting full/no load mm/s450/500Lowering full/no load  mm/s450/450Max.drawbar pull                                   Power shift T/M full/no load    kg1500/1000Manual shift T/M full/no load       kg1550/1000Gradeability at 1.6km/hPower shift T/M full/no load                    %18/20Manual shift T/M full/no load           %18/20Truck weight kg4380Weight  distribution                             Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheel base  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast) mm120Framemm135Brake Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backwardPower shift T/M              Manual shift T/M              1-1 power shift T/M
2-2 manual shift T/M

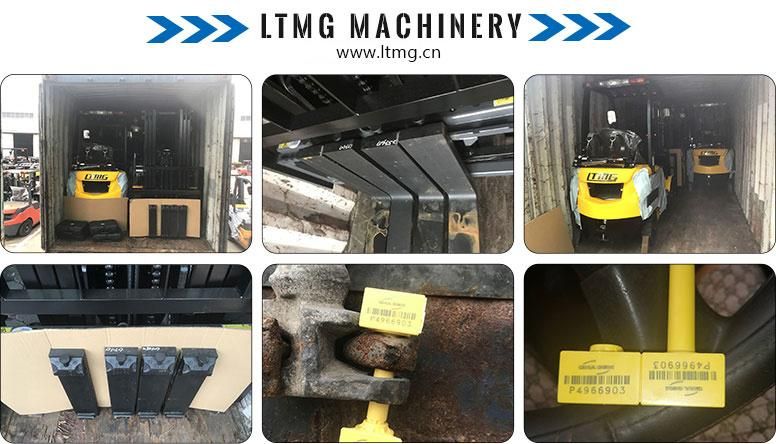

Packing and Shipping

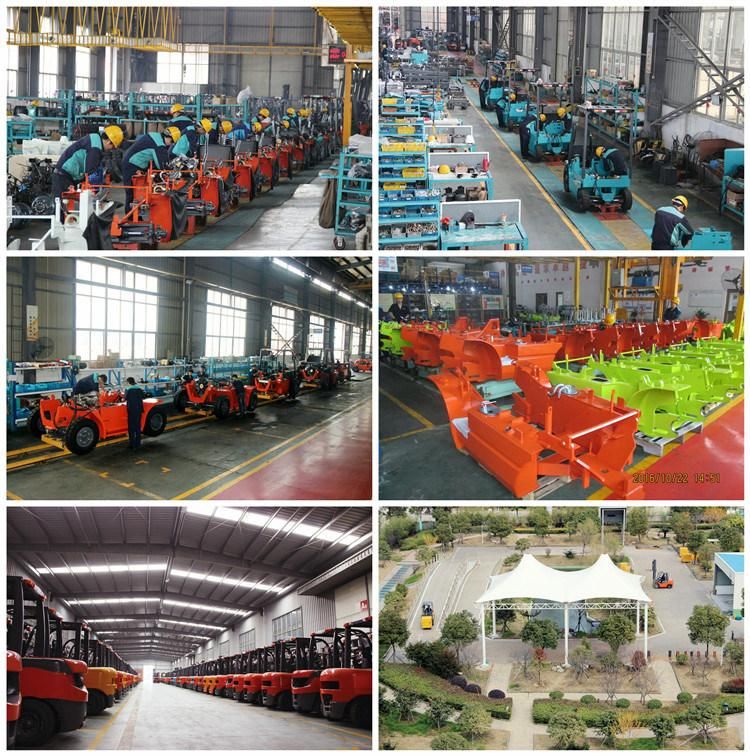

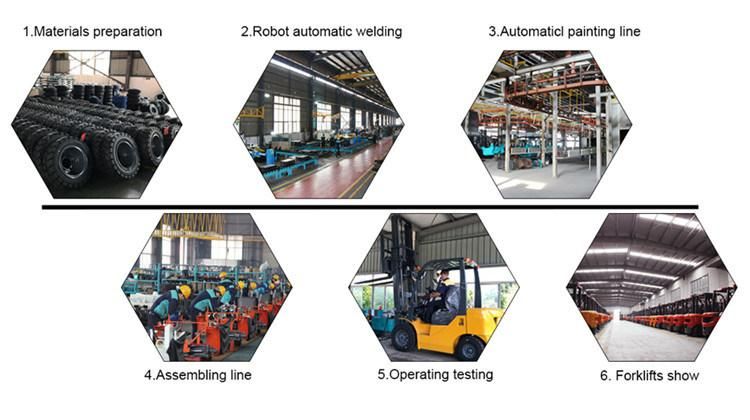

Our Factory



Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

After sales service


LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
